SuperLift 6.50-Inch Suspension Lift Kit (15-19 4WD Yukon w/ Stock Cast Aluminum or Stamped Steel Control Arms & w/o MagneRide)Find parts that fit my vehicle

Description. Superlift’s true to the height 6.5-inch lift kit for the 2015-2019 Chevrolet Tahoe or GMC Yukon 1500 4WD are a great way to add height to your overall GM SUV 1500 appearance. Superlift’s kit offers your GM SUV 1500 the best height and ride comfort on the market. Superlift Suspension intentionally over-builds our suspension kits to be the best. Our uniquely engineered design adds strength and durability and has bonus features that others do not offer.

Front lift is achieved by installing spacers on top of the factory coil-over shock assembly. Pre-load rings, installed below the coil springs, slightly increase spring rate to help offset the additional loads created by running larger tires, and firms-up what would otherwise be a "spongy" ride. The factory upper control arms are retained and remain in their original location, while the factory lower control arms and axle housing are lowered, in relation to the frame. New Superlift replacement steering knuckles, made of cast ductile iron, span the increased distance between the control arms

Superlift's geometry, from steering timing and linkage angles to driveshaft and CV axle operating angles, yields optimal component service life and exceptional drivability.

Our lower control arm crossmembers are a one-piece, full-width, high-clearance design made of .25" steel plate.

Rear lift is via pre-set replacement coil springs and relocation brackets for the factory 4-link set-up. The OE rear shocks are retained with this lift and works with all rear factory shock options.

Features :

Allows the use of 20" factory wheelsMakes room for up to 35" tiresMaintains awesome ride quality and handling characteristicsNo coil-over disassembly requiredAligns to OEM specificationsCorrects front to rear factory rake for a level stanceIncludes:

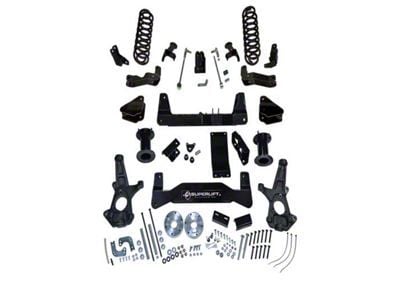

Front

CNC machined extended ductile iron steering knucklesAll fabricated steel components are laser cut, CNC formed and finished with a durable black powder coatFront top mount strut spacersOne-piece front and rear cross membersFront differential skid plateFront sway bar linksDifferential relocation bracketsBrake Line relocation brackets

Rear

Lift blocksU-bolts and hardwareCompression stop extensionsCoil Springs and BracketsNOTE: Not recommended for AWD models

NOTE: Does NOT fit Auto Ride or Auto Leveling models.

NOTE: Only fits vehicles with OE Aluminum or Stamped Steel Control Arms.

NOTE: This suspension kit WILL NOT WORK with any late model GM Truck or SUV equipped with MAGNERIDE from GM

Fitment:

• 2015 GMC Yukon
• 2016 GMC Yukon
• 2017 GMC Yukon
• 2018 GMC Yukon
• 2019 GMC Yukon
