Find 6 Inch to 8 Inch Lift Kits for your F-250
Fabtech 8-Inch Radius Arm Suspension Lift Kit with Stealth Shocks (11-16 4WD F-250 Super Duty w/o Factory Overland Springs)Find parts that fit my vehicle
Item SD0577
$0.00
Our Price
$2,606.52 kit
Out of Stock
$199.00 Oversized Item Fee
Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Suspension Lift System
- Lifts Truck by 8 Inches to Increase Ground Clearance
- Facilitates Controlled and Smooth Off-Road Dynamics
- Front and Rear Stealth Shocks
- Fabtech Front Coil Springs
- Tubular Radius Arms With Dimple Die Side Plates
- Rear U-Bolt and Block Lift Kit Included
- Accommodates Up to 37x13.50 Tires and 20x10 Wheels
- Professional Installation Highly Recommended
- Limited Lifetime Warranty and a 5-Year, 60,000-Mile Powertrain Warranty
- Fits All 2011-2016 4WD Ford Super Duty F-250s Without Factory Overland Springs
| Brand | Fabtech |
| Lift Height | 8.00 Inch |
| Lift Kit Type | Radius Arm Lift |
| Lift Kit Max Tire Size | 37 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Bolder All-Terrain Confidence. Transform your Super Duty by installing the Fabtech 8-Inch Radius Arm Lift System with Stealth Shocks. This lift package significantly boosts your truck’s off-road capabilities with controlled and smooth off-road dynamics on the roughest terrains. This lift package comes with Fabtech’s legendary radius arms, Stealth shocks, coil springs, and other premium suspension components to reinforce your lifted truck’s off-road performance.
Optimum Damping Control. The extra large monotube configuration of the Stealth shock absorbers, together with the high-flow, 46-mm piston, facilitate superior damping capacity. The full floating piston eliminated the mixing of the oil and air, thereby significantly reducing the shock fade. Additionally, each shock is equipped with an aggressive, matte black 14-mm Nitrocarburized piston rod that is built to resist chipping and rusting.
Excellent Suspension Control. This 8-Inch Lift System utilizes a pair of front coil springs that were engineered with precise spring rates to work well with the rest of the suspension components in the kit. Each spring exhibits high tensile strength to handle your Super Duty’s rough off-roading lifestyle, while ensuring a smooth and comfortable ride. It also appealingly enhances your truck’s confident stance, thanks to its black, powder-coated finish.
Proper Alignment and Responsive Steering. Crawling over rocky terrains and treading through highly uneven trails require skillful navigation. Fabtech addresses this by means of its well-crafted, legendary radius arms. This pair of links ensure proper axle alignment and control the forward and backward wheel motion. Each arm features a tubular construction with dimple-die side plates for extra rigidity to offer additional support to the vehicle. Additionally, the dropped Pitman arm ensures proper steering geometry for more responsive and smoother operations. It was crafted through Fabtech’s advanced forging process and CNC technology to maintain proper alignment and optimum turning radius for accurate steering.
Professional Installation. This 8-Inch Radius Arm Lift System with Stealth Shocks is intended for a bolt-on installation that requires mechanical expertise. It comes with all the necessary hardware for a 1-day installation process.
Warranties. Fabtech backs this 8-Inch Radius Arm Lift System with a limited lifetime warranty that covers factory defects in workmanship and materials. The Five Sixty Powertrain Warranty will apply if the claim falls within the first 5-year or 60,000-mile period of the vehicle. Some exclusions are indicated in the manufacturer’s warranty guide; please check the terms and conditions for full details.
Application. The Fabtech 8-Inch Radius Arm Lift System with Stealth Shocks is intended for use on all 2011-2016 4WD Ford Super Duty F-250 models without Factory Overland Springs.
Shop All 6 to 8 Inch Truck Lift Kits
Shop All Truck Parts And Accessories
Shop All Truck Lift Kits
Fitment:
DetailsFabtech K2123M
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

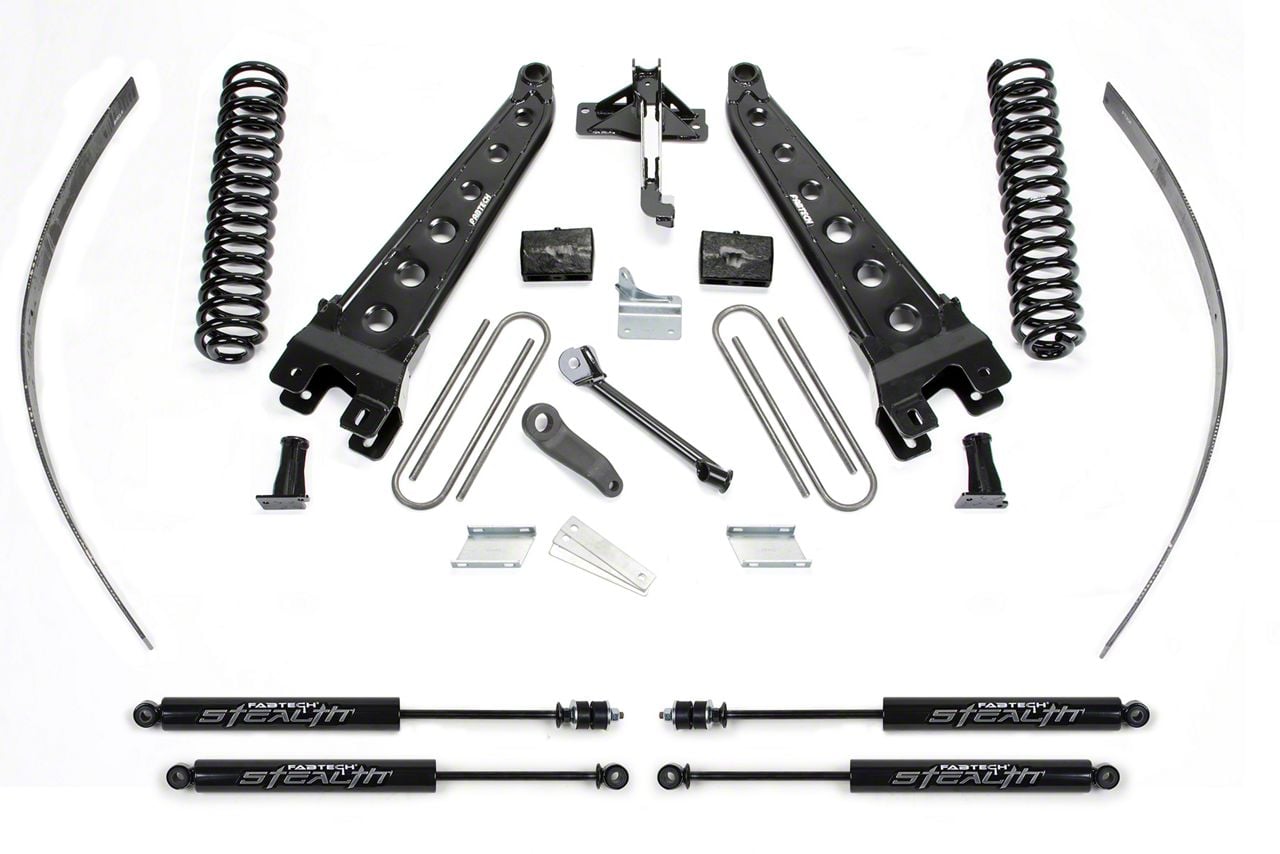

What's in the Box
- (1) Driver Side Custom Radius Arm
- (1) Passenger Side Custom Radius Arm
- (1) Pitman Arm
- (1) Driver Side Front Bump Stop
- (1) Passenger Side Front Bump Stop
- (1) Steering Stabilizer Drop
- (1) Driver Side Sway Bar Drop
- (1) Passenger Side Sway Bar Drop
- (1) Track Bar Drop Bracket
- (1) Track Bar Support Tube
- (2) Front Stealth Shocks
- (2) Rear Stealth Shocks
- (4) Bushings
- (2) Sleeves
- (1) Alignment Cam Half Kit
- (2) Brake Lines
- (2) Brake Line Unions
- (5) Brake Line Brackets
- (2) 5-Inch Block
- (4) U-Bolts
- (1) Shim Kit
- (2) Sway Bar Brackets
- Installation Hardware
4.7
Reviews of Fabtech Suspension Products (47)
Reviews of Fabtech Suspension products have an average rating of 4.7 out of 5
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My F-250
- 6.2L V8 - 11, 12, 13, 14, 15, 16
- 6.7L V8 Power-Stroke - 11, 12, 13, 14, 15, 16
