Installation Time
(approx) a Day
Difficulty Level:
Mechanical expertise or professional installation required.
FREE 1 to 3-Day Delivery on Orders $119+ Details
Talk to a F-250 Sales Tech
1-888-706-1096
M-F 8:30A-11P, Sat-Sun 8:30A-9P
Sitewide Coupons - Up to $80 Off!
Redeem Now >
Find 6 Inch to 8 Inch Lift Kits for your F-250
Fabtech 8-Inch Radius Arm Suspension Lift Kit with Dirt Logic 4.0 Reservoir Coil-Overs and Dirt Logic Shocks (11-16 4WD F-250 Super Duty w/o Factory Overland Springs)Find parts that fit my vehicle
Item SD0566
$0.00
Our Price
$5,639.85 kit
Out of Stock
$99.00 Oversized Item Fee
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Suspension Lift Kit
- Provides 8 Inches of Lift, Front and Rear
- Increases Ground Clearance for Better Off-Road Capabilities
- Rear Dirt Logic Shocks
- Front Dirt Logic Coilovers
- Add-A-Leaf Springs
- Heavy-Duty Front Radius Arms
- Rear Lift Blocks
- Enables Use of 37-Inch Wide Tires
- Professional Installation Recommended
- Limited Lifetime Warranty
- Fits All 2011-2016 Ford F-250 4WD Super Duty Models Without Factory Overland Springs
| Brand | Fabtech |
| Lift Height | 8.00 Inch |
| Lift Kit Type | Radius Arm Lift |
| Lift Kit Max Tire Size | 37 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Optimized Off-Road Performance. If you’re looking to optimize your F-250 Super Duty’s off-road performance, then the Fabtech 8-Inch Radius Arm Lift System With Dirt Logic 4.0 Reservoir Coil-Overs and Dirt Logic Shocks is exactly what you need. This lift kit is designed to give your truck 8 inches of overall lift as well as an excellent ride quality for both on and off-road. This added 8-inch lift also allows you to install larger 37-inch tires, giving you that rugged off-road look.
Rear Dirt Logic Shocks. The Fabtech 8-Inch Radius Arm Lift System includes a pair of Dirt Logic 2.25 rear shocks. These shocks offer superior durability over your stock shocks via their 2.25-inch OD stainless steel body, 2.0-inch OD billet aluminum piston, and a 0.87-inch thick NitroSteel piston rod. Additionally, these shocks are tuned specifically for use with larger tires and use a proprietary shock oil for consistent dampening.
Front Dirt Logic Coilovers. The Fabtech 8-Inch Radius Arm Lift System uses a pair of Dirt Logic reservoir coilovers to provide the front lift. These reservoir shocks are fully adjustable, enabling you to dial-in the correct amount of dampening and are perfect for use with larger tires. These coilovers also feature a 4.0-inch OD stainless steel body, a 3.62-inch OD billet aluminum piston, and a 1.25-inch thick NitroSteel piston rod for exceptional strength.
Add-A-Leaf Springs. The Fabtech 8-Inch Radius Arm Lift System comes with a pair of high-strength add-a-leaf springs. These springs are manufactured from high-grade steel and are finished in a tough, black powder coating for superior rust protection. These add-a-leaf springs are responsible for providing rear lift alongside the lift blocks.
Heavy-Duty Front Radius Arms. To maintain correct steering geometry, the Fabtech 8-Inch Radius Arm Lift System includes a pair heavy-duty front radius arms. These radius arms deliver proper front-to-rear positioning of the coil springs in relation to your truck’s axle. This also helps maintain an excellent driving feel. These radius arms are precision-fabricated from high-grade tubular steel and use dimpled side plates for added sturdiness.
Strong Rear Lift Blocks. The Fabtech 8-Inch Radius Arm Lift System includes a pair of super-strong lift blocks that work with the add-a-leaf springs to lift the rear. These lift blocks are cast from high-grade iron alloy and finished in a black powder coating for superior protection against rust.
Direct Install Procedure With Cutting and Drilling. The Fabtech 8-Inch Radius Arm Lift System With Dirt Logic 4.0 Reservoir Coil-Overs and Dirt Logic Shocks will require cutting and drilling to properly fit particular components. Installation will also require several hours to a day. As such, professional installation is recommended.
Comes With a Limited Lifetime Warranty. The Fabtech 8-Inch Radius Arm Lift System comes with a limited lifetime warranty covering workmanship defects. Please visit the manufacturer’s website for more details.
Application. The Fabtech 8-Inch Radius Arm Lift System With Dirt Logic 4.0 Reservoir Coil-Overs and Dirt Logic Shocks fits all 2011-2016 Ford F-250 4WD Super Duty Models without factory Overland springs.
Shop All 6 to 8 Inch Truck Lift Kits
Shop All Truck Parts And Accessories
Shop All Truck Lift Kits
Fitment:
DetailsFabtech K2273DL
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

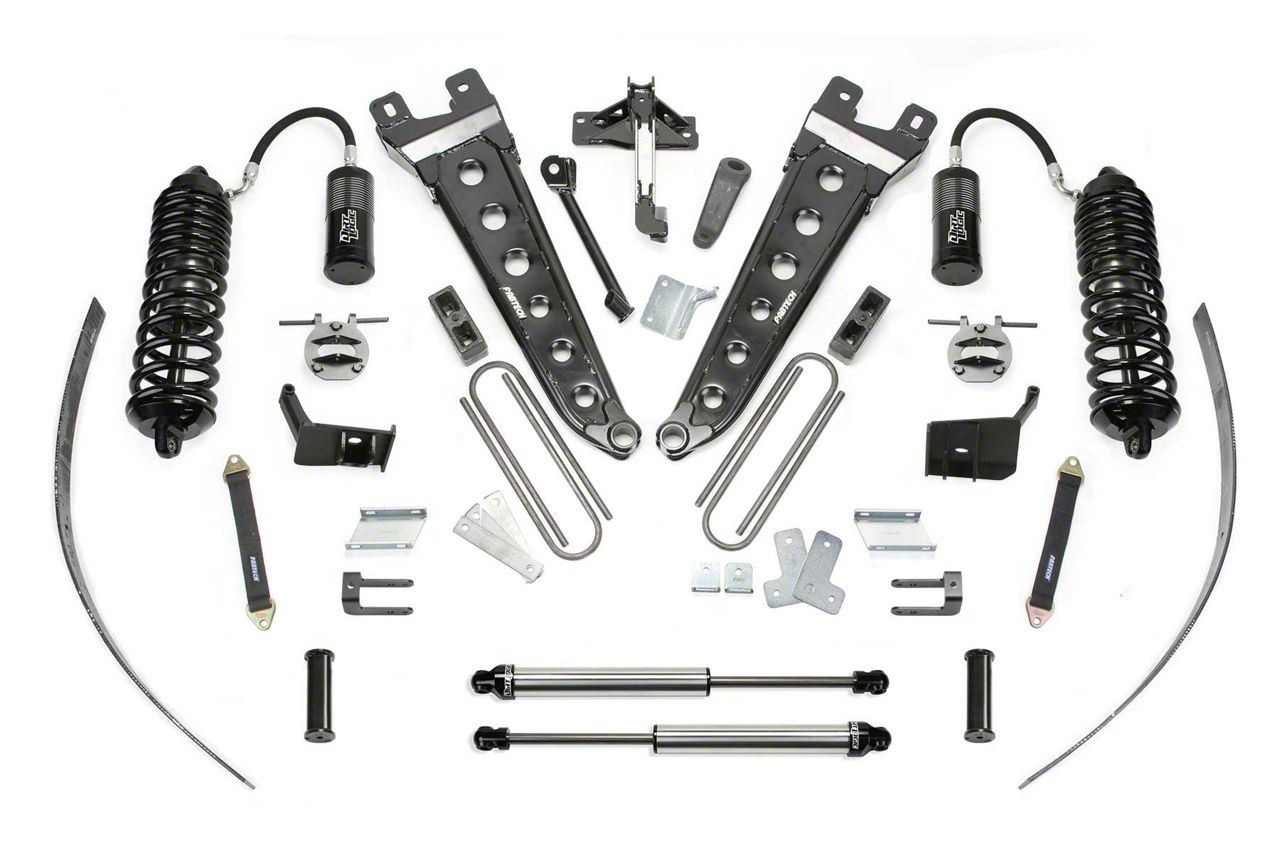

Installation & What's in the Box
Installation Info
What's in the Box
- (2) Front Reservoir Coilover Shocks
- (2) Coilover Mounts, Driver and Passenger Side
- (2) Rear Shocks
- (1) Pitman Arm
- (2) Front Bump Stops, Driver and Passenger Side
- (2) Radius Arms, Driver and Passenger Side
- (2) Sway Bar Drop, Driver and Passenger Side
- (2) Sway Bar Relocation Bracket, Axle Mount
- (1) Steering Stabilizer Bracket
- (1) Track Bar Drop Bracket
- (1) Track Bar Support Tube
- (1) Shim Kit
- (2) Limiting Straps
- (2) Add-A-Leaf Springs
- (2) Lift Blocks
- (3) Hardware Subassembly
- (4) U-Bolts
- Installation Hardware
4.7
Reviews of Fabtech Suspension Products (47)
Reviews of Fabtech Suspension products have an average rating of 4.7 out of 5
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My F-250
- 6.2L V8 - 11, 12, 13, 14, 15, 16
- 6.7L V8 Power-Stroke - 11, 12, 13, 14, 15, 16
