Installation Time
(approx) 5 Hours
Difficulty Level:
Mechanical expertise or professional installation required.
FREE 1 to 3-Day Delivery on Orders $119+ Details
Talk to a F-250 Sales Tech
1-888-706-1096
M-F 8:30A-11P, Sat-Sun 8:30A-9P
Find 6 Inch to 8 Inch Lift Kits for your F-250
Fabtech 6-Inch Radius Arm Suspension Lift Kit with Dirt Logic 4.0 Coil-Overs and Dirt Logic Shocks (11-16 4WD F-250 Super Duty)Find parts that fit my vehicle
Item SD0522
$0.00
Our Price
$6,588.27 kit
Out of Stock
$99.00 Oversized Item Fee
Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Radius Arm Lift System With Front and Rear Lift Height of 6 Inches
- Optimum Performance for Off-Roading
- Comfortable Ride Quality On and Off the Road
- Front Dirt Logic 4.0 Coil-Overs
- Rear Dirt Logic 2.25 Shocks
- Fabtech Replacement Radius Arms
- Rear Lift Blocks With U-Bolt Kit
- Track Bar Relocation Bracket
- Sway Bar Drop Brackets
- Comes With a Pitman Arm
- Accommodates Up to 35 x 12.50-Inch Tires With Minor Trimming
- Maximum of 5-Inch Tire Backspacing
- Straightforward Installation
- Comes With a Limited Lifetime Warranty
- Fits 2011-2016 Models of the 4-Wheel Drive Ford F-250 Super Duty
| Brand | Fabtech |
| Lift Height | 6.00 Inch |
| Lift Kit Type | Radius Arm Lift |
| Lift Kit Max Tire Size | 35 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Improved Off-Roading Performance With Better Ride Quality. Boost your truck’s off-roading capabilities without sacrificing street handling. This Fabtech 6-Inch Radius Arm Lift System With Dirt Logic 4.0 Coil-Overs and Dirt Logic Shocks is for you. The extra height provides a smoother ride experience with improvements in off-roading performance. It creates room for installing larger, more heavy-duty tires and wheels. More importantly, this lift system comes with a pair of replacement radius arms to improve steering response. On the other hand, the track bar relocation bracket and sway bar drop brackets make your truck more stable and easier to handle.
Front Dirt Logic 4.0 Coil-Overs and Rear Dirt Logic Shocks. This radius arm lift system includes a pair of Dirt Logic 4.0 coil-overs, which are specifically designed for full-size vehicles that need more damping power. You can also adjust the damping and rebound settings for your driving comfort. On the other hand, the Dirt Logic rear shocks offered are tuned to accommodate larger tire sizes, thus ensuring a smooth ride even on the roughest roads.
Fabtech Replacement Radius Arms. You don’t have to worry about the added ground clearance making your truck harder to steer because Fabtech included a pair of replacement radius arms with this kit. These radius arms have an adjustable alignment camber at the axle so you can adjust the caster to get the kind of steering response you want. They’re also built extra-tough, with a full tubular structure and dimple-die side plates for reinforcement.
Rear Lift Blocks With U-Bolt Kit. For the 6-inch rear lift, this kit uses heavy-duty rear lift blocks. Their tapered designed means the drive shaft angle is reduced, so your truck is a lot more drivable on and off the road. There’s also a U-bolt kit included, providing extra support and a more secure way to fasten the lift blocks.
Track Bar Relocation Bracket. To eliminate excessive wobbling and vibrations often caused by lifting a vehicle’s suspension, Fabtech included a track bar relocation bracket with this all-in-one kit. With a properly aligned suspension, you can forget about the so-called "death wobble" and have a more stable drive. This also prolongs the life of the suspension components.
Sway Bar Drop Brackets. Lifted vehicles often experience excessive body roll, especially when turning and cornering. This problem is easily solved with the help of the sway bar drop brackets that come with this radius arm lift system. These parts also help in improving your truck’s handling and articulation.
No-Weld Installation. Most of the components of this lift system are designed for bolt-on installation, while some parts require only minor drilling. Total installation time takes approximately 3 hours. Fabtech also recommends re-torquing the nuts, bolts, and lugs after 50 miles, and scheduling regular re-torques thereafter for safety and better performance.
Backed by a Limited Lifetime Warranty. This Fabtech radius arm lift system comes with a limited lifetime warranty against issues on the materials and workmanship.
Application. This Fabtech 6-Inch Radius Arm Lift System With Dirt Logic 4.0 Coil-Overs and Dirt Logic Shocks is compatible with 2011-2016 models of the 4WD Ford F-250 Super Duty.
Shop All 6 to 8 Inch Truck Lift Kits
Shop All Truck Parts And Accessories
Shop All Truck Lift Kits
Fitment:
DetailsFabtech K2137DL
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

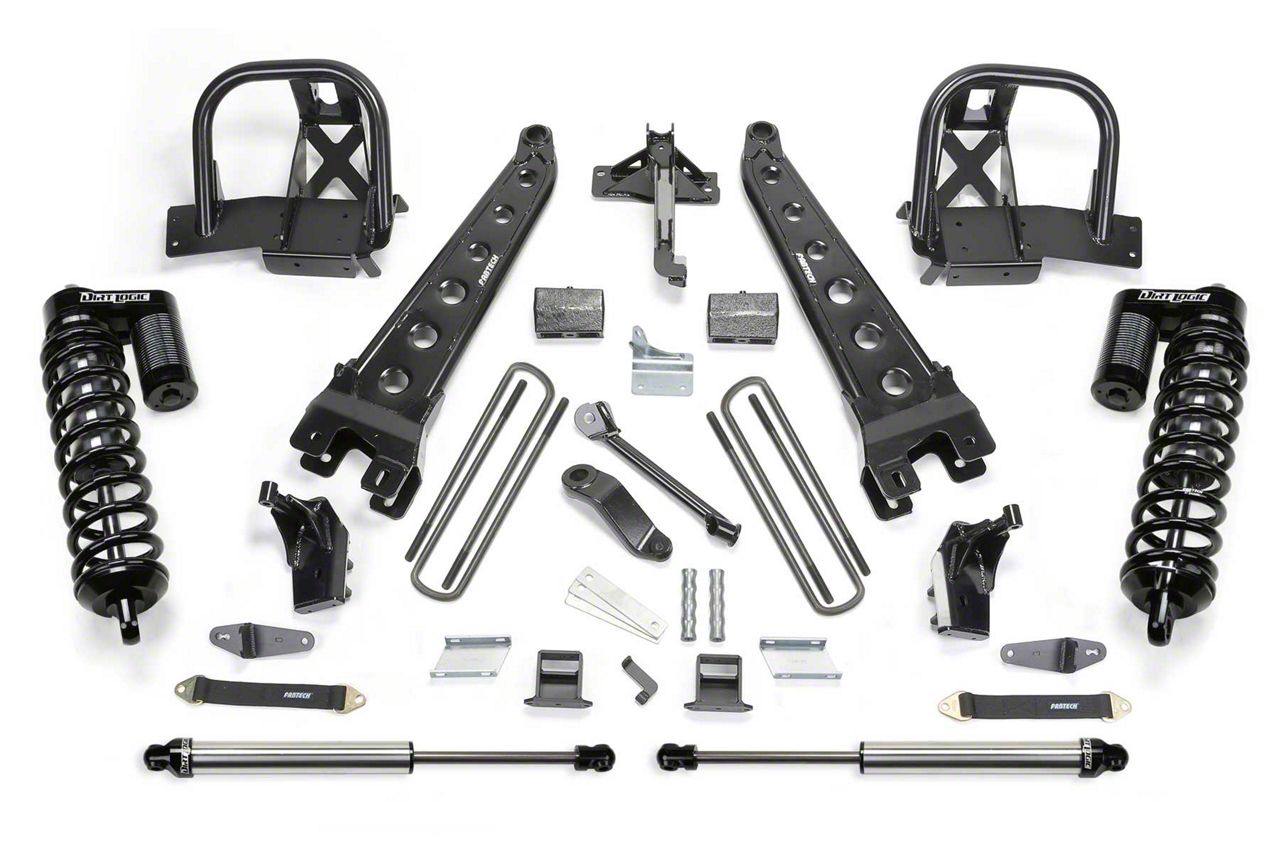

What's in the Box
- (2) Front Dirt Logic 4.0 Coil-Overs
- (2) Rear Dirt Logic Shocks
- (2) Fabtech Replacement Radius Arms
- (1) Rear Lift Block Kit With U-Bolts
- (1) Track Bar Relocation Bracket
- (1) Sway Bar Drop Bracket Kit
- (1) Pitman Arm
- (1) Component Box 1
- (1) Component Box 2
- Mounting Hardware
- Installation Instructions
4.7
Reviews of Fabtech Suspension Products (47)
Reviews of Fabtech Suspension products have an average rating of 4.7 out of 5
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My F-250
- 6.2L V8 - 11, 12, 13, 14, 15, 16
- 6.7L V8 Power-Stroke - 11, 12, 13, 14, 15, 16
