Find Tuners (Subcategory) for your Sierra 2500

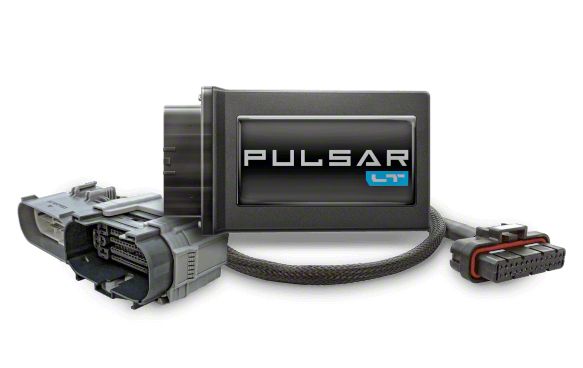

Edge Pulsar LT Inline Control Module (17-19 6.6L Duramax Sierra 2500 HD)Find parts that fit my vehicle
Item HG17187
Sierra 2500 Sales Techs:
Connect Now
M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
17 Reviews
Our Price
$601.95 each
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- Corrects Speedometer for Tire Size Changes
- Corrects Speedometer for Rear Gear Ratio Changes
- Adjust Throttle Response
- Clears DTC Trouble Codes
- Reprogram TPMS Threshold
- Manual DPF Regeneration
- Automatic Transmission Relearn
- Adjust High Idle Control
- Rest Speed Limiter
- Straight Forward Plug and Play Installation
- Internet Updateable - Requires Windows Computer
- Fits 2017-2019 6.6L GMC Sierra 2500 HD Models
Description
Corrects Speedometer / Odometer. If you have installed a set of tires that are larger or smaller than original equipment tires, or if you have installed a ring and pinion gear set with a different rear gear ratio, Edge's Pulsar LT Inline Control Module allows you to correct your speedometer and odometer readings. The vehicle’s computer calculates your speed based on the diameter of the stock tires. If you’ve installed taller or shorter tires, or changed the rear gear ratio, the vehicle’s computer doesn’t know how fast your vehicle is actually going. As a result, the speedometer/odometer readings will not be accurate.
Adjust Throttle Response. Edge Pulsar LT Inline Control Module allows you to adjust your trucks throttle response to fit your driving needs. All modern vehicles use a drive-by-wire system that controls the throttle body electronically, similar to a dimmer switch. With the Pulsar LT Inline Control Module installed you can reduce throttle responsiveness by 15% or increase its responsiveness by up to 65%.
Manual DPF Regeneration. The Manual Regeneration feature of the Edge Pulsar LT Inline Control Module allows you to manually clear out the Diesel Particulate Filter (DPF). Completing a manual regeneration cycle will clear the soot mass in the filter, and lower exhaust back pressure to improve exhaust flow. The engine must be at operating temperature.
Automatic Transmission Relearn. Most modern vehicles are equipped with an automatic transmission that will “learn” while you drive. Sometimes when these vehicles are programmed with an aggressive tune, the transmissions act differently. The Transmission Relearn feature of the Edge Pulsar LT Inline Control Module forces the transmission to relearn and accommodate the new tune. After the relearn commands are sent there might be some clunks, bumps, and/or short flares, especially during the shift from third to fourth gear. This is normal.
High Idle Control. The Edge Pulsar LT Inline Control Module allows the engine to idle at adjustable RPM levels between 700 RPM to 1100 RPM.
Speed Limiter. The Edge Pulsar LT Inline Control Module allows the speed limiter to be adjusted between 98 and 140 MPH.
TPMS - Tire Pressure Monitor System. The Edge Pulsar LT Inline Control Module allows the TPMS inflation value to be adjusted between 40 and 99 (PSI).
Clear Diagnostic Trouble Codes. The Edge Pulsar LT Inline Control Module can also be used to clear diagnostic trouble codes. Save yourself time and money by clearing your own Diagnostic Trouble Codes (DTCs) rather than paying a dealer to do the same. It's as easy as a few simple steps.
Internet Updateable. The Edge Pulsar LT Inline Control Module can be updated over the internet via a Windows based computer. The Pulsar LT must be installed into a vehicle before updating. When updating, you CANNOT use your vehicles Wi-Fi. It will be disabled during the update process. Use an external source such as your home Wi-Fi. A USB to OBDII update cable is required to perform the update - sold separately.
Application. This Edge Pulsar LT Inline Control Module is designed to fit 2017-2019 6.6L equipped GMC Sierra 2500 HD models.
Fitment:
DetailsEdge 22410
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- Pulsar LT Module
- Harness
4.6
Customer Reviews (17)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Sierra 2500
- 6.6L V8 Duramax - 17, 18, 19
