Titan Fuel Tanks Direct Replacement Mid-Ship Fuel Tank; 60-Gallon (20-24 4WD 6.6L Duramax Sierra 2500 HD Crew Cab w/ 8-Foot Long Box)Find parts that fit my vehicle
Item HG34222
Sierra 2500 Sales Techs:
Connect Now
M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Open Box Only - Starting at
$820.23 each
Will this fit your Vehicle?
Product Information
Features, Description, Q&A, Specs & Installation
Features

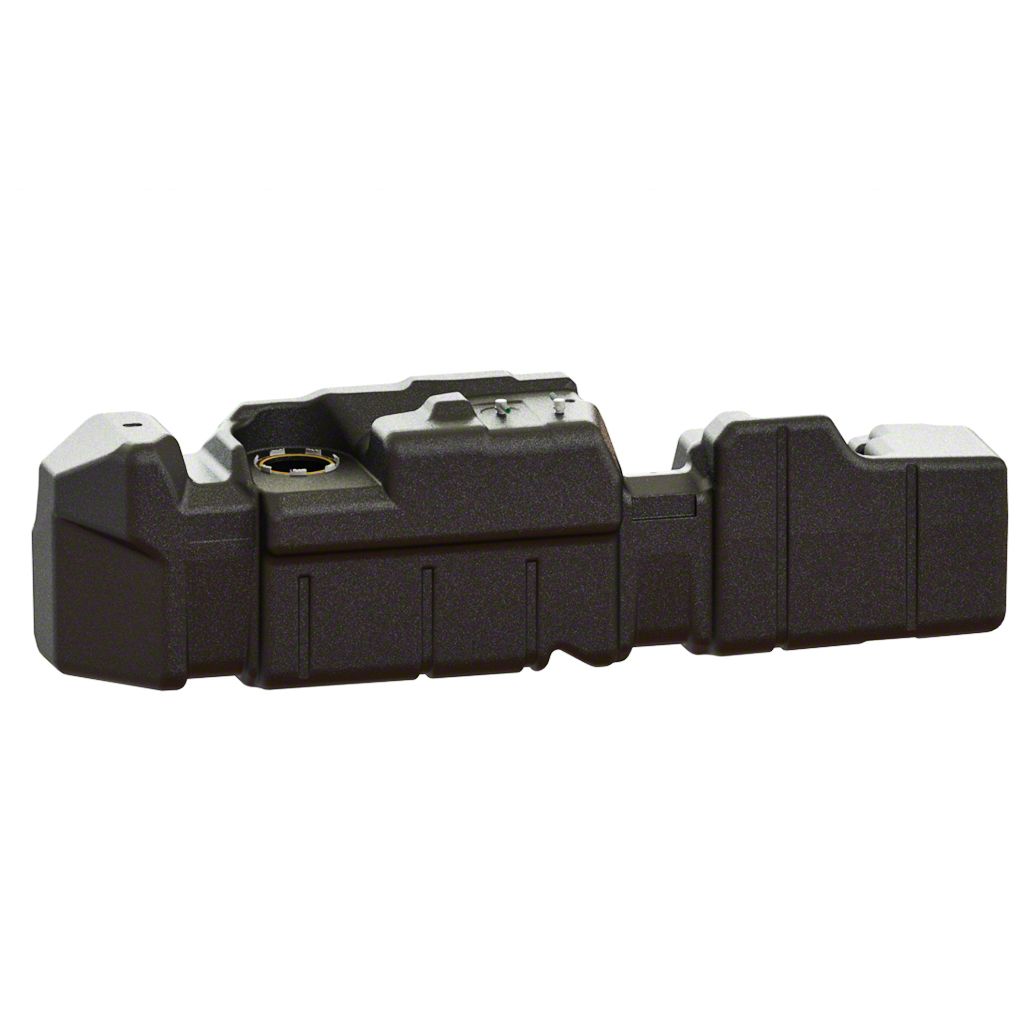

- Titan Fuel Tanks Direct Replacement Mid-Ship Fuel Tank
- 60-Gallon Capacity
- Extended Range
- Direct Replacement
- High-Density Polyethylene
- Durable and Corrosion-Resistant
- Enhances Fuel Efficiency and Longevity
- Meets Or Exceeds OEM Specifications
- Designed for Easy Installation
- Fits All 2020-2024 6.6L Duramax Sierra 2500 HD Crew Cab with 8-Foot Long Box Models
Description
Description. Transform your driving experience with the Titan 60Gallon Extra Capacity Mid-Ship Replacement Fuel Tank, designed specifically for 2020-2024GM2500 and 3500 pickups with Crew Cabs, LongBeds, and Duramaxengines. With this innovative upgrade, you're not just investing in a larger fuel tank -you're investing in unparalleled freedom and convenience on the road.
Picture this: no more frequent stops at the gas station, no more worries about running out of fuel on long journeys, and no more compromises on where you can go or what you can do. With the Titan 60Gallon tank, you have the power to stay on the road longer, tackle more ambitious projects, and explore farther than ever before. Whether you're towing heavy loads, embarking on cross-country adventures, or simply navigating daily commutes, the extra capacity provided by a Titan XXL Tankgives you the confidence and peace of mind to go the distance, no matter where the road takes you.
Crafted from our renowned military-grade, cross-linked polymer material, this tank sets the standard for durability and reliability. With a thickness of at least ¼", it's built to outlast all competitors, standing strong against the toughest conditions. Backed by a lifetime warranty, you can trust in its quality and performance for the long haul.
The tank comes complete with ablack-coated, galvanized steel mounting strapandfront support system. Plus, with its exclusive low fuel trap design all 60gallons are usable capacity. We could advertise a larger capacity, butwe chose to only market usable capacity to set honest and reasonable expectations for our customers.The Titan XXL tank also featuresminimal hang down below the bottom of the stock tank (approximately only 2” lower).
Additional Details
- The TITAN tank is 24gallons larger at 60gallons. The stock tank is only 36gallons.
- Hellwig aftermarket rear sway bar #7782 is not compatible with this tank.
- Will not interfere with powered steps, air bag systems and most other accessories.
- Our mid-ship, direct replacement fuel tanks are designed to use your trucks’stock/OE sending unit. However, our tanks are compatible with Fleece, AirDog, FASS, etc.
Technical Service Bulletin: Affected vehicles: 2019+ GM 6.6L diesel trucks.
Issue: Fuel gauge drops to empty after Initial Install and during normal operation.
Explanation: GM trucks have the ability through programming and monitoring to know exactly how much fuel is in the tank, as well as fuel consumption based on miles driven and fueleconomy. Any large capacity fuel tank causes the float to move slower than the computer thinks is acceptable. When the computer sees this, it will run a system check and drop the fuel gauge to empty. When the fuel level comes off full, the gauge should return to the correction position after restarting the vehicle.
Solution: Although we were told early on that trucks have fixed themselves after several tanks of fuel when following a specific process, we are no longer able to confirm this or any other permanent fix for this issue. If this is a concern for you, we recommend using an aftermarket digital monitor to confirm accurate fuel level when this occurs.
Application. This Titan Fuel Tanks Direct Replacement Mid-Ship Fuel Tank; 60-Gallon is designed to fit 2020-2024 6.6L Duramax Sierra 2500 HD Crew Cab with 8-Foot Long Box.
Fitment:
- 2020 GMC Sierra 2500
- 2021 GMC Sierra 2500
- 2022 GMC Sierra 2500
- 2023 GMC Sierra 2500
- 2024 GMC Sierra 2500
Titan Fuel Tanks 7010320
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Fuel Tank
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Sierra 2500
- 6.6L V8 Duramax - 20, 21, 22, 23, 24
