DescriptionThe Synergy 2003-2013 Dodge Ram 1500 / 2500 / 3500 Heavy Duty Steering Kit is a heavy duty bolt-on replacement for the stock steering that requires no drilling or reaming! Updating it to the factory T-style steering design eliminates the toe change common to the old Y-style kits, without the bump-steer "crossover" steering tends to produce. We use low misalignment tie rod end boots on our heavy duty tie rod ends to prevent the dead zone in your steering that creates the unwanted tie rod "flop". USA made 1.5" x .250 wall and 1.75 x .188 wall DOM tubing is used to prevent bending or breaking, giving you the confidence to cruise, haul, and wheel wherever you go. For the strongest, most reliable upgrade in steering feel, the complete kit is offered with the Synergy Heavy Duty Tie Rod, Drag Link, and the choice of either a single Synergy Tuned Fox IFP Stabilizer or Dual Stabilizer shock(s).
Fitment:
2003 - 2013 Dodge Ram 2500 / 2013 4x4
2006 - 2008 Dodge Ram 1500 Mega Cab 4x4
Heavy Duty Steering Kit with Dual FOX IFP Steering Stabilizers
Warning: 2013 Dodge Ram 3500's were a split year for production. The early model trucks use the T-style steering (drag link is attached to the tie rod), Synergy Part # 8525-01. The late model trucks use cross over steering (drag link is attached to the knuckle and does not attach to the tie rod), Synergy Part # 8725-01.
Please verify what style you have before ordering.
Benefits:
Heavy Duty Drag Link is precision bent to clear factory axle brackets and is compatible from stock to 4" lifted vehicles; Vehicles over 4" of lift will require a drop pitman arm for compatibility
Heat treated tie rod is over 200% stronger than OEM and formed post heat treating for superior strength
Engineered for maximum articulation, the heavy duty tie rod is bent to clear sway bar mounts, differential cover, and steering pitman armSynergy Heavy Duty Tie Rod Ends are larger, stronger, and more durable than stock and include grease fittings and dust boots with retaining rings for easy maintenance
Single plane tie rod ends eliminate unwanted drag link or tie rod movement and prevent the dead spot when changing direction
Kit is fully adjustable while installed in the vehicle, thanks to our Double Adjuster Sleeve and Pinch Bolt Assembly
Both the tie rod and drag link are fully sealed from the elements thanks to our Forged Pinch Bolt housings and complete welded assembly
Provides 2" of additional ground clearance from stock while adding critical strength
Fabricated clamp designed to retain the factory stabilizer, one of our recommended FOX Stabilizers, or other aftermarket stabilizers with 1/2" mounting bolts
Pinch bolt design eliminates jam nuts, preventing loosening and alignment creep
Features:
Drag link is precision bent from 1.5" x .250 wall USA made DOM
Tie rod is engineered and bent from 1.5" x .188 wall heat treated 4130 chromoly
Two stage abrasion resistant powder coat finish for maximum durability and corrosion resistance
Synergy metal on metal, fully greaseable tie rod ends include a 4140 steel shank, a 1018 steel bearing housing, and capped with a heavy duty nitrile-butadiene rubber boot and retaining spring
Synergy Double Adjuster Sleeve and Pinch Bolt Assembly for easy alignment
100% bolt on components assures an easy, trouble free installation with the use of basic hand tools

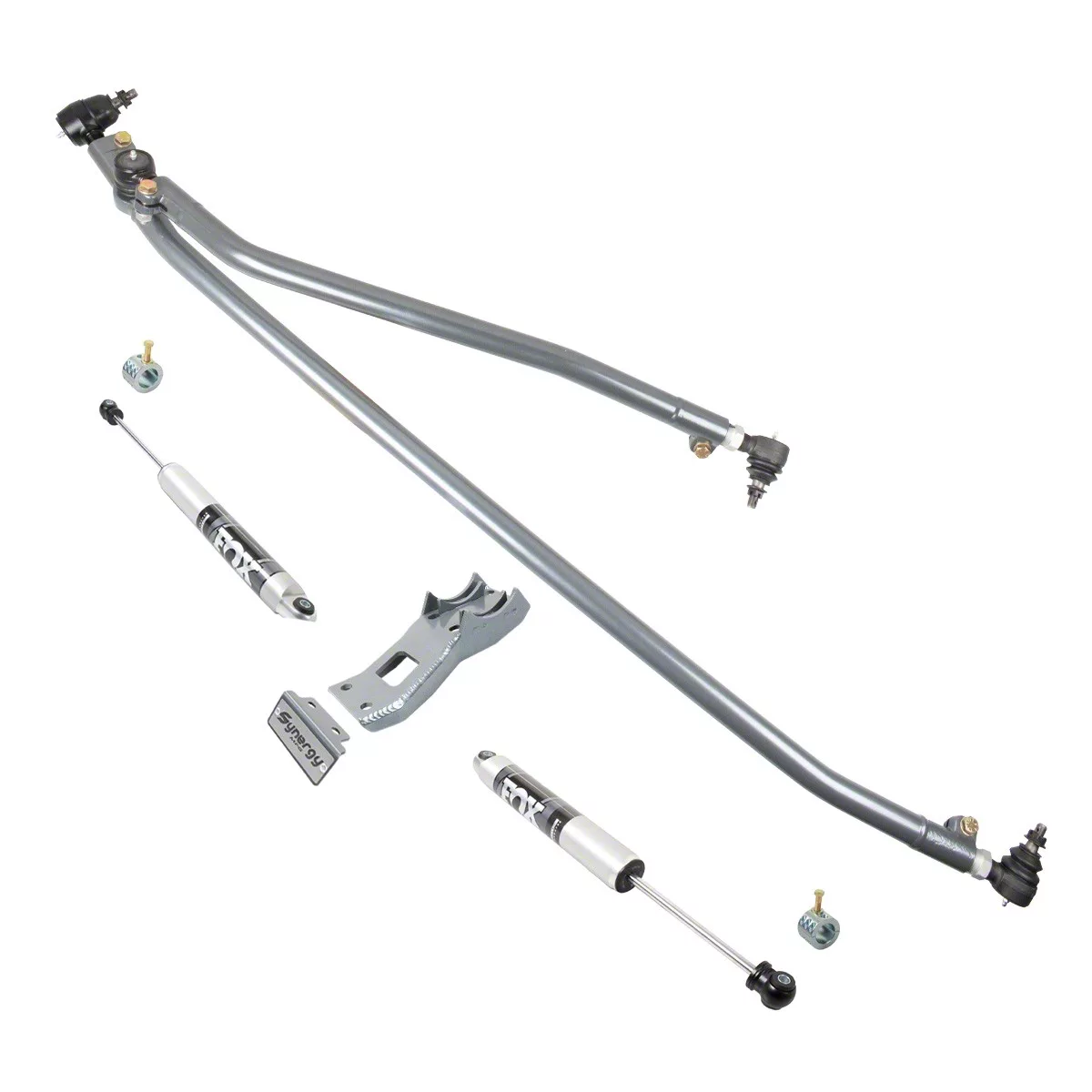

Includes:
(1) 8567-11 - Heavy Duty Drag Link
(1) 8568-21 - Heavy Duty Tie Rod
(1) 8510-01 - Dual Steering Stabilizer Bracket
(2) 4050-50 - Steering Stabilizer Clamps
(2) 6401-01 - Tuned FOX IFP Steering Stabilizers
Notes:
For 03-08 trucks using the stock pitman arm, switching to the Mopar pitman arm for 08.5+ trucks is recommended if not already equipped - Mopar P/N: 68039930AA
Known compatibility with aFe Power differential cover; We cannot guarantee fitment with all aftermarket diff covers
Single stabilizer applications require the Steering Stabilizer Bracket, part number 8568-10
Dual Stabilizer Applications require (2) Steering Stabilizer Clamps, part number 4050-50
Recommended Fox Steering Stabilizers:
IFP - Internal Floating Piston (6401-01),
TS - Through Shaft (6402-03),
ATS - Adjustable Through Shaft (6403-03)
Synergy High Performance Grease recommendedto be used with all Synergy Tie Rod Ends
Synergy Premium Copper Infused Anti-Seize to be used with all threaded components
Fitment:
Details
Synergy Manufacturing 8525-21
