SuperLift 4-Inch King Edition Radius Arm Suspension Lift Kit (11-16 4WD 6.7L Powerstroke F-350 Super Duty)Find parts that fit my vehicle
Item SSD13744
$4,844.99
1 Reviews
On Sale
-15% $4,844.99 Was $5,699.99
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Suspension Lift Kit
- Provides 4-Inch Suspension Lift
- Enhances Ride Quality and Improves Handling
- With King Shocks Front Coil-Overs and King Shocks Rear Reservoir Shocks
- Comes With Heavy-Duty SuperLift Radius Arms
- Includes Fabricated Rear Lift Blocks and U-Bolts
- Accommodates Up to 35x12.50 Tires and 20x9 Wheels
- Professional Installation Recommended
- Lift Force Supplemental Limited Powertrain Warranty
- Made in the USA
- Designed for All 2011-2016 6.7L 4WD Ford Super Duty F-350 Models
| Brand | SuperLift |
| Lift Height | 4.00 Inch |
| Lift Kit Type | Radius Arm Lift |
| Lift Kit Max Tire Size | 35 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Improved Stance, Balance, and Handling. Let your lifted Super Duty successfully crawl over the rugged terrains by installing the 4-Inch King Edition Radius Arm Suspension Lift from SuperLift. This suspension upgrade combines SuperLift’s suspension engineering and King Shocks’ race-winning technology to transform your truck with an aggressive stance, increased ground clearance, and superior off-road performance. It includes King Shocks front coil-overs and rear reservoir shocks, SuperLift radius arms, fabricated lift blocks, U-bolts, and relocation brackets for bolder off-road confidence and improved driveability.
Comfortable Ride. The King Shocks front coil-overs and rear shocks both have external reservoirs and can easily be adjusted by means of a simple knob twist. This adjustability allows you to select from Super Soft to Super Firm to create a ride perfectly suited to your application. You can soften up your ride when cruising the streets or firm it up when beating the rough terrains or carrying an extra payload.
Precise Steering and Proper Alignment. This 4-Inch King Edition Radius Arm Suspension Lift Kit utilizes a pair of heavy-duty SuperLift radius arms. These massive, high-clearance tubular radius arms bolt right into your truck’s factory mounts. They are equipped with giant press-fit OEM Clevite bushings for smooth, quiet, and efficient operations. Moreover, they feature flat jack plate surfaces, alignment cam bolts, and are designed to allow optimum articulation and offer maximum tire clearance.
Reinforced Stance. The rear lift kit included in this suspension system exhibits heavy-duty, laser-cut construction to give your vehicle a better stance with the newfound ride height. The high-strength iron lift blocks and U-bolts are engineered to let you experience a reinforced ground clearance without the tippy feels or the top-heavy discomfort on any side or corner. Additionally, these components were engineered with excellent durability to hold up well with your Super Duty’s lifestyle.
Professional Installation Recommended. Designed as a complete bolt-on kit, this suspension kit comes with all the necessary hardware. Mechanical expertise is highly recommended for a successful installation. Please note that a proper alignment procedure is also recommended after the installation.
Warranty.Superlift is excited to announce that all lift and leveling kits now come with a free Lift Force Supplemental Limited Powertrain Warranty. This warranty will protect you from disputes with original equipment manufacturers who are unfamiliar with aftermarket suspension systems. The Lift Force Warranty goes into effect if the manufacturer or dealership denies your drivetrain warranty claim due to installation of your Superlift lift or leveling kit.
Application. The SuperLift 4-Inch King Edition Radius Arm Suspension Lift Kit is intended for use on all 2011-2016 6.7L 4WD Ford Super Duty F-350 models.
Shop All 3 to 5 Inch Truck Lift Kits
Shop All Truck Parts And Accessories
Shop All Truck Lift Kits
Fitment:
DetailsSuperLift K987KG
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

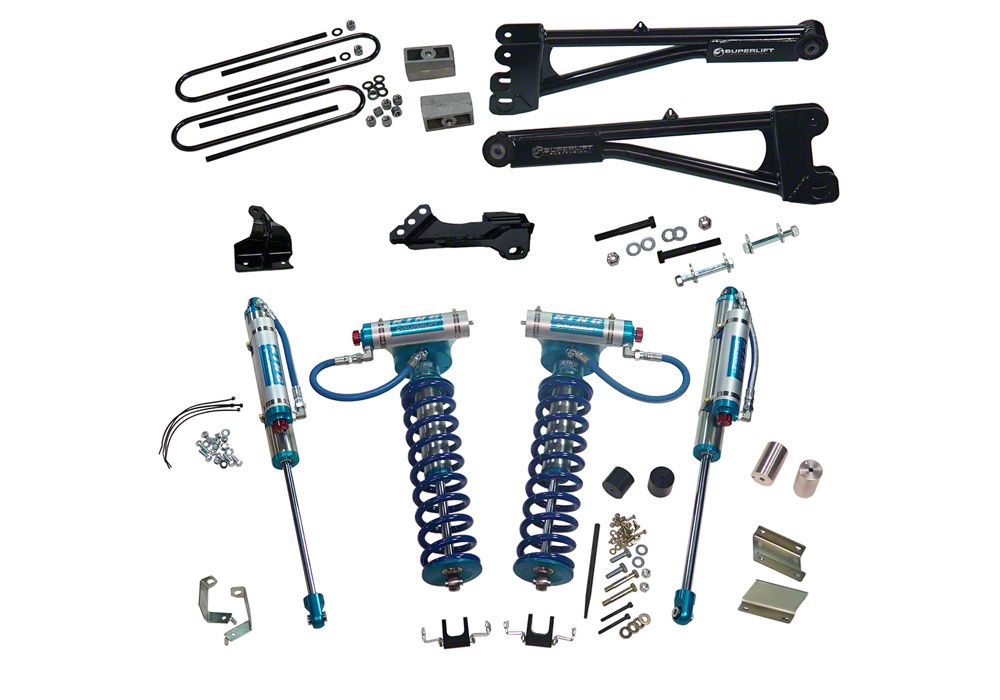

What's in the Box
- (2) King Shocks Front Coil-Overs
- (2) King Shocks Rear Shock Absorbers
- (1) Driver Side Radius Arm
- (1) Passenger Side Radius Arm
- (2) Compression Stops
- (1) Front Track Bar Relocation Bracket
- (1) Track Bar Bracket Spacer
- (1) Steering Stabilizer Bracket
- (2) Track Bar Keys
- (2) Front Sway Bar Drop Brackets
- (1) Rear Brake Line Bracket
- (2) Fabricated Lift Blocks
- (4) U-Bolts
- (2) 0.375-Inch x 5.50-Inch Bolts
- (4) 0.375-Inch SAE Washers
- (2) 0.375-Inch Nyloc Nuts
- (2) 18 mm Bolts
- (4) 18 mm Washers
- (4) 18 mm Nyloc Nuts
- (2) Cam Bolts
- (2) Zip Ties
- (2) 0.50-Inch Bolts
- (2) 0.50-Inch SAE Washers
- (2) 0.50-Inch Stover Nuts
- (1) 12 mm Nut
- (1) 12 mm Washer
- (4) 0.4375-Inch Bolts
- (10) 0.4375-Inch Washers
- (5) 0.4375-Inch Nyloc Nuts
- (1) 0.4375-Inch x 1-Inch Bolt
- (1) Decal "Warning to Driver"
5.0
Customer Reviews (1)
Reviews of SuperLift Suspension products have an average rating of 4.6 out of 5
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My F-350
- 6.7L V8 Power-Stroke - 11, 12, 13, 14, 15, 16
