Rough Country 7-Inch NTD Suspension Lift Kit with V2 Monotube Shocks (20-25 Sierra 2500 HD, Excluding Denali)Find parts that fit my vehicle
Item HG1013
Sierra 2500 Sales Techs:
Connect Now
M-F 8:30A-11P, Sat-Sun 8:30A-9P
$1,869.95
460 Reviews
On Sale
-3% $1,869.95 kit Was $1,919.95
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Suspension Lift Kit - 7-inch Lift
- NTD - Non-torsion Drop Design
- Corrects Factory Rake for a Level Stance
- Increases Ground Clearance for Improved Off-Roading
- V2 Monotube Shocks
- Lifted Steering Knuckles
- Fabricated Steel Lift Blocks
- Front and Rear Crossmember
- Accommodates up to 37-inch Tires
- Not Compatible with Factory Wheels
- Fits 2020-2025 GMC Sierra 2500 HD SRW Models, Excluding Denali
| Brand | Rough Country |
| Lift Height | 7.00 Inch |
| Lift Kit Type | Suspension Lift |
| Lift Kit Max Tire Size | 37 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Improve Your Off-Roading Experience. Off-roading can be tough on your 2500 HD Sierra’s stock suspension, that's why you need a lift kit that was specifically designed to take on the great outdoors. Luckily, this Rough Country Suspension Lift Kit features a non-torsion drop design that keeps everything tucked up for increased ground clearance allowing you to drive over boulders, fallen logs, and other obstacles found on the trail. With 7-inches of lift, this kit can accommodate tires up to 37 x 12.5 in size mounted on 20-inch wheels. This Lift Kit features lifted steering knuckles as well as fabricated steel lift blocks. What’s more, the included V2 Monotube Shocks provide a highly comfortable ride, even when tested across rough terrain.
V2 Monotube Shocks. The included nitrogen-charged V2 Monotube shocks are built with a T6061 brushed aluminum body and boast a 36kN tensile strength. They also feature an internal floating piston, as well as a 46mm high-flow piston. Thanks to their high-quality construction, they’re capable of dissipating heat at a fast rate and provide a consistent road damping performance all year round.
Lifted Steering Knuckles. Rough Country includes a set of heavy duty replacement steering knuckles in their 7-inch Suspension Lift Kit. These lifted steering knuckles are manufactured from iron for superior strength. The knuckles are designed to increase ride height while keeping all components at the optimum angles for a factory-like ride.
Fabricated Lift Blocks. The fabricated Rear Lift Blocks include in this Rough Country Lift Kit have been laser cut, CNC formed and welded from high grade steel for superior strength and extra rigidity. The components are then completed in a durable black powder coat finish for long lasting corrosion resistance.
Skid Plate and Crossmembers. Both the front and rear crossmembers, and skid plate are constructed from steel plate for superior strength. The skid plate will protect the front differential from rocks and obstacles, while the crossmembers will provide additional strength to the chassis.
Installation. The Rough Country 7-Inch NTD Suspension Lift Kit should be installed by a professional to reduce the risk of injury. The kit should about take 8-10 hours to install, so you'll be back on the road in a day. An alignment will be required after installation.
Application. This Rough Country 7-Inch NTD Suspension Lift Kit with V2 Monotube Shocks is designed to fit 2020-2025 GMC Sierra 2500 HD SRW models, excluding Denali. Does not fit dually models or models equipped with Magnetic Ride Control. Gas models may require modification to the exhaust for driveshaft clearance.
V2 Monotube Shocks. The included nitrogen-charged V2 Monotube shocks are built with a T6061 brushed aluminum body and boast a 36kN tensile strength. They also feature an internal floating piston, as well as a 46mm high-flow piston. Thanks to their high-quality construction, they’re capable of dissipating heat at a fast rate and provide a consistent road damping performance all year round.
Lifted Steering Knuckles. Rough Country includes a set of heavy duty replacement steering knuckles in their 7-inch Suspension Lift Kit. These lifted steering knuckles are manufactured from iron for superior strength. The knuckles are designed to increase ride height while keeping all components at the optimum angles for a factory-like ride.
Fabricated Lift Blocks. The fabricated Rear Lift Blocks include in this Rough Country Lift Kit have been laser cut, CNC formed and welded from high grade steel for superior strength and extra rigidity. The components are then completed in a durable black powder coat finish for long lasting corrosion resistance.
Skid Plate and Crossmembers. Both the front and rear crossmembers, and skid plate are constructed from steel plate for superior strength. The skid plate will protect the front differential from rocks and obstacles, while the crossmembers will provide additional strength to the chassis.
Installation. The Rough Country 7-Inch NTD Suspension Lift Kit should be installed by a professional to reduce the risk of injury. The kit should about take 8-10 hours to install, so you'll be back on the road in a day. An alignment will be required after installation.
Application. This Rough Country 7-Inch NTD Suspension Lift Kit with V2 Monotube Shocks is designed to fit 2020-2025 GMC Sierra 2500 HD SRW models, excluding Denali. Does not fit dually models or models equipped with Magnetic Ride Control. Gas models may require modification to the exhaust for driveshaft clearance.
Fitment:
- 2020 GMC Sierra 2500
- 2021 GMC Sierra 2500
- 2022 GMC Sierra 2500
- 2023 GMC Sierra 2500
- 2024 GMC Sierra 2500
- 2025 GMC Sierra 2500
Rough Country 10170
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

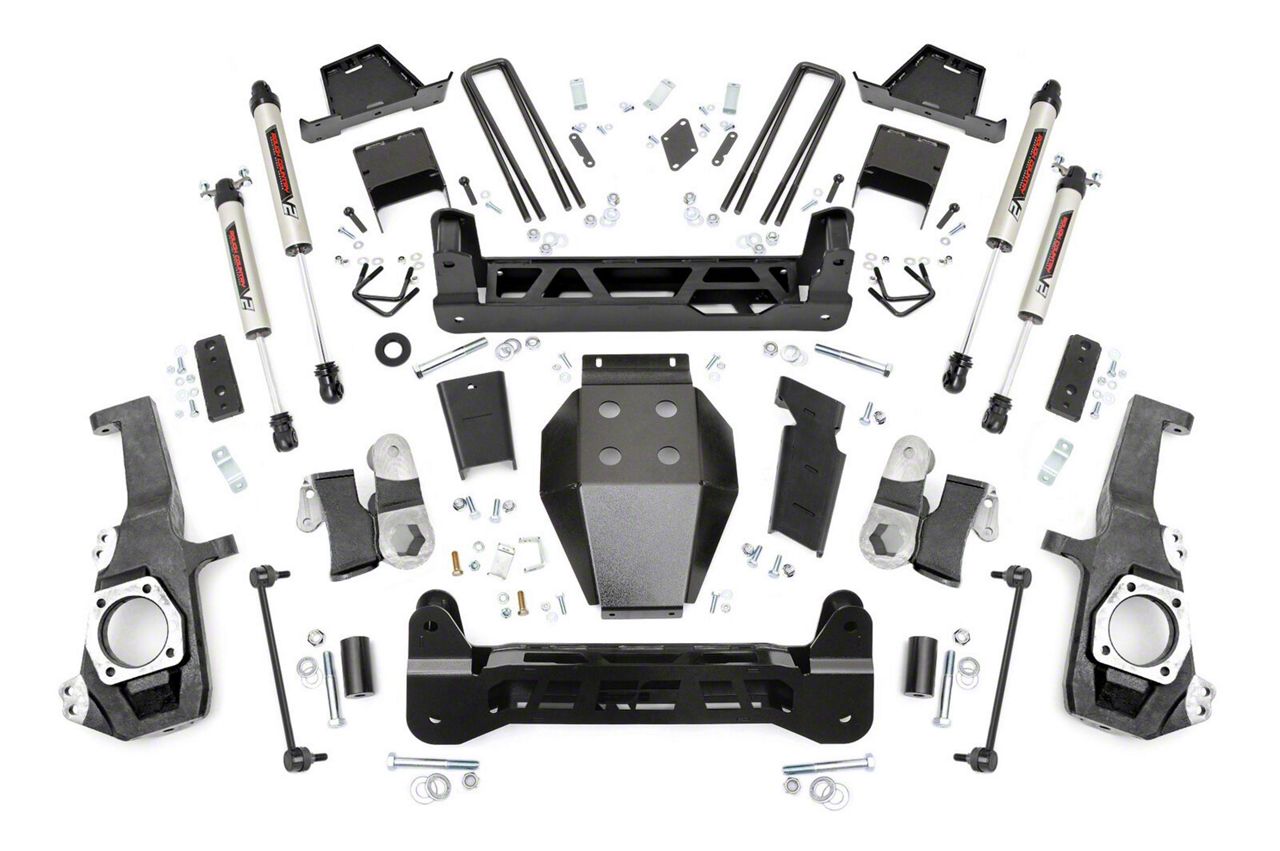

What's in the Box
- Lifted Knuckles
- Front Crossmember
- Rear Crossmember
- Differential Drop Brackets
- Differential Skid Plate
- Non-torsion Bar Drop Brackets
- Sway-bar Links
- Sway-bar Brackets
- Upper Shock Brackets
- Brake Line Relocation Bracket
- Lift Blocks
- U-Bolts
- Bump-stop Brackets
- Brake Line Brackets
- E-brake Line Bracket
- Hardware
- (4) V2 Monotube Shock Absorbers
4.8
Customer Reviews (460)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Sierra 2500
- 6.6L V8 - 20, 21, 22, 23, 24, 25
- 6.6L V8 Duramax - 20, 21, 22, 23, 24, 25
