Find Winches for your F-350

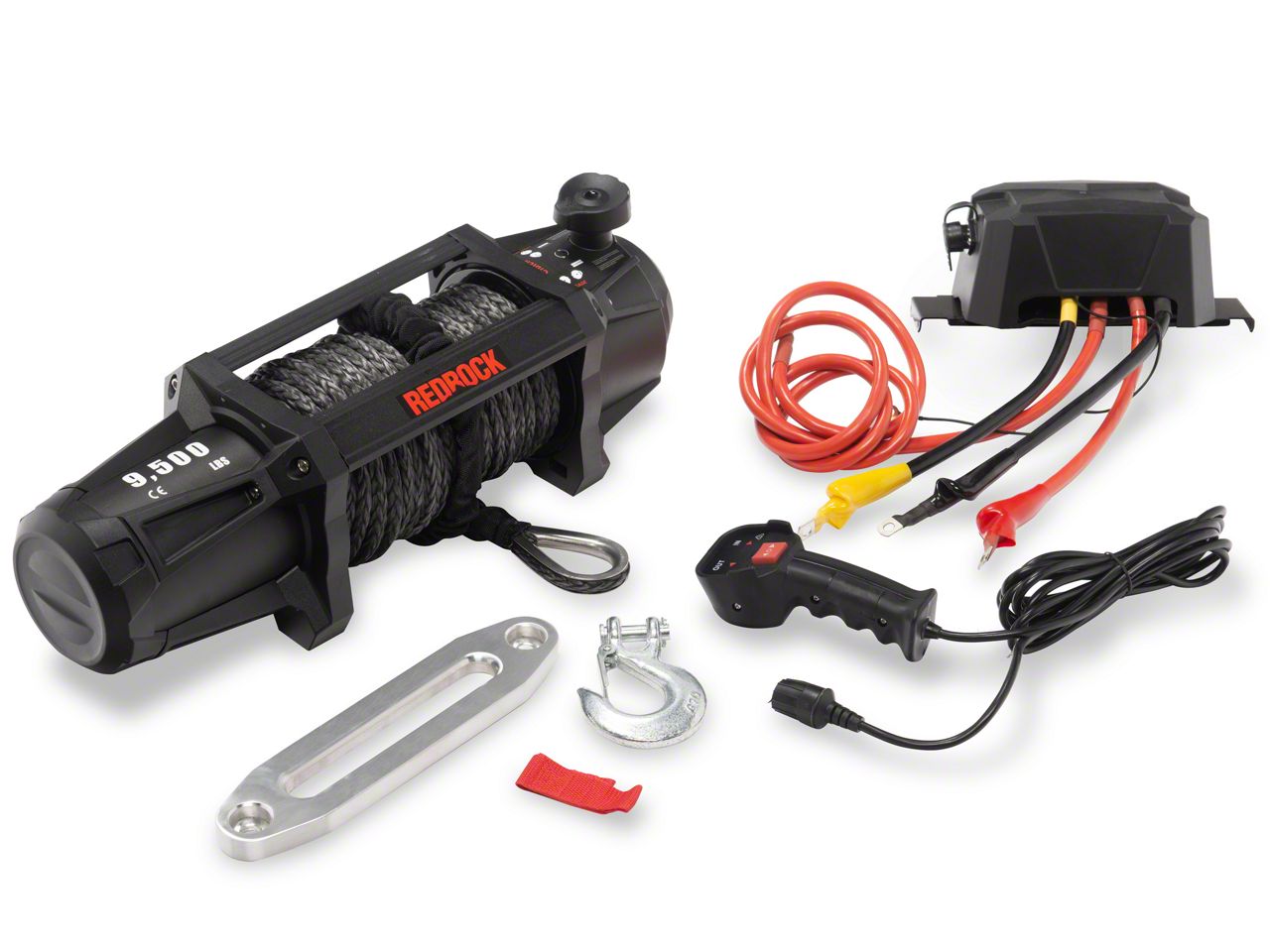

RedRock 9,500 lb. Winch with Synthetic Rope and Dual Control Unit (Universal; Some Adaptation May Be Required)Find parts that fit my vehicle
Item SSD27373
$0.00
Our Price
$414.99
Out of Stock
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Q&A, Specs & Installation
Features
- 9,500 lb. Single-Line Pulling Rating
- 5.7 HP 12-Volt Series Wound Electric Motor
- Three Stage Planetary Gear with 218.4:1 Gear Ratio
- 85 Foot Synthetic Rope Included
- Wired Remote Switch
- Wireless Remote Control Included
- Durable Black Powder Coat Finish
- Hook, Hawse Fairlead, and Power Lead are Included
- Overall Dimensions: 21.3 × 6.7 × 10.5 Inches
- Mounting Bolt Pattern: 254mm X 114.3mm
- Weight: 56.12 Pounds
- Universal Application for all Vehicles
Description
Be Prepared For a Recovery Situation. It doesn't matter if you are a novice or a serious off-roader, you should take a page out of the Scouts hand book and "be prepared" for what the trail might throw at you. That's why you should outfit your rig with a reliable recovery system like RedRock's 9,500 lb Winch that includes a Synthetic Rope. This RedRock Winch will help you to get out of the messiest situations.
Heavy Duty 9,500 LB Winch. This RedRock Winch is driven by a powerful 5.7 HP series-wound 12-volt electric motor. Featuring a rugged 3-stage planetary gear box with a 218.4:1 gear ratio, this RedRock Winch provides 9,500 lbs of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.
Additional Features. This RedRock 9,500 lb Winch features a hawse fairlead that helps reduce wear and tear on the 85 foot synthetic rope while keeping it from binding. This RedRock Winch includes both a wired remote control with a 12 foot lead and a wireless remote control allowing you to safely stand clear when in operation.
Simple, Bolt-on Installation. RedRock engineered their winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 21.3 × 6.7 × 10.5 inches and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included making this an easy straight forward installation.
Application. This RedRock 9,500 lb. Winch with Synthetic Rope and Dual Control Unit features a universal design and can be used on most makes and models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.
Line Pull Speeds
Heavy Duty 9,500 LB Winch. This RedRock Winch is driven by a powerful 5.7 HP series-wound 12-volt electric motor. Featuring a rugged 3-stage planetary gear box with a 218.4:1 gear ratio, this RedRock Winch provides 9,500 lbs of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.
Additional Features. This RedRock 9,500 lb Winch features a hawse fairlead that helps reduce wear and tear on the 85 foot synthetic rope while keeping it from binding. This RedRock Winch includes both a wired remote control with a 12 foot lead and a wireless remote control allowing you to safely stand clear when in operation.
Simple, Bolt-on Installation. RedRock engineered their winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 21.3 × 6.7 × 10.5 inches and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included making this an easy straight forward installation.
Application. This RedRock 9,500 lb. Winch with Synthetic Rope and Dual Control Unit features a universal design and can be used on most makes and models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.
Line Pull Speeds
- 0 lbs. - 22.5 ft./min
- 2000 lbs. - 14.8 ft./min
- 4000 lbs. - 11.8 ft./min
- 6000 lbs. - 9.8 ft./min
- 8000 lbs. - 8.2 ft./min
- 9500 lbs. - 6.2 ft./min
Technical Note. To prevent damage to the synthetic rope from exposure to the sun and weather, a winch cover is required when not in use. Winch cover not included - sold separately.
RedRock J181079
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- 9,500lb winch
- 85 foot Synthetic Rope
- Hawse Fairlead
- Remote Control Lead
- Wireless Remote Control
- Solenoid
- Wiring Harness
- Rope Hook
- Red Line Flag
- Hardware
