Find Control Arms & Accessories for your Sierra 3500

ReadyLIFT Xtreme-Duty Fabricated A-Arm Kit for 2 to 8-Inch Lift (11-19 Sierra 3500 HD)Find parts that fit my vehicle

Item SHG9074
Product Image

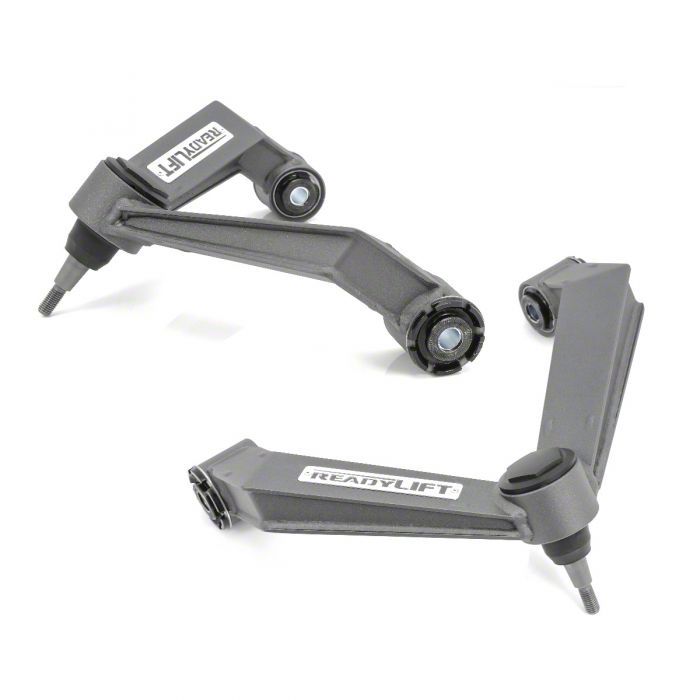

ReadyLIFT Xtreme-Duty Fabricated A-Arm Kit for 2 to 8-Inch Lift (11-19 Sierra 3500 HD)
Verify parts fit and get product recommendations.
Sierra 3500 Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
Call now 1-888-706-1096 Chat Now
$0.00
29 Reviews
Our Price

$499.95 pair

to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Loading Indicator

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • Xtreme-Duty Upper Control Arms
      • Designed for use with 2 to 8-Inch Front Lifts
      • Maintenance Free Terrain Control Technology (TCT) Pivots
      • Heavy-Duty Spring Loaded Ball Joints
      • Fabricated Steel Construction
      • Durable Anthracite Gray Powder Coated Finish
      • Bolt-on Installation
      • Driver and Passenger Side Included
      • Fits 2011-2019 GMC Sierra 3500 HD Models

      Description

      Extreme-Duty Upper Control Arms. Designed to be used on 3500 GMC Sierras with a 2 to 8-inch of front lift from qualified ReadyLIFT lift kit, these ReadyLIFT Extreme-Duty Upper Control Arms provide the correct ball joint pivot angle for lifted applications.

      Fabricated Steel Construction. ReadyLIFT manufactures their Control Arms using their very own time-tested fabricated steel design technology. Laser cut and CNC bent from .125 4130 chromoly plate steel, these Upper Control Arms employee a tab and slot boxed design to increase overall strength and durability. The Control Arms are then completed in an anthracite gray powdercoat finish for good looks and long lasting corrosion resistance.

      HD Series Ball Joints. The critical pivot points are maintenance-free and extremely durable for long-lasting use. One-ton spring loaded HD series ball joints maintain the factory driving experience and can take a beating. To protect the joints from road debris, the arms include CNC machined billet aluminum caps which helps extend the life of the ball joints.

      Terrain Control Technology. Frame side pivots feature ReadyLIFT's new Terrain Control Technology (TCT) bushings are maintenance free and self lubricating. These new bushings include a new "free float" inner bushing with "side biter" washers to aid in maintaining alignment settings. The free-floating bushing design eliminates friction which is the most common culprit of traditional bushing failure.

      Bolt-on Installation. ReadyLIFT designed their Xtreme-Duty Fabricated A-Arm Kit to be a straight forward bolt-on install with no major modifications required. With all the necessary hardware included, this A-Arm Kit can be installed in about 3 hours time. Please note that an alignment is required after installation.

      Application. This ReadyLIFT Xtreme-Duty Fabricated A-Arm Kit for 2 to 8-Inch Lift is designed to fit 2011-2019 GMC Sierra 3500 HD models with a 2 to 8-Inch Front Lift. Please note that these Control Arms are not designed for use on a stock ride height vehicle.

      Fitment:

      ReadyLIFT 44-3100

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      What's in the Box

      • (1) Front Upper Control Arm - Driver Side
      • (1) Front Upper Control Arm - Passenger Side
