Find 6 Inch to 8 Inch Lift Kits for your F-350
Fabtech 8-Inch Radius Arm Suspension Lift Kit with Stealth Shocks (17-22 6.7L Powerstroke F-350 Super Duty SRW)Find parts that fit my vehicle
Item SSD13430
$0.00
Our Price
$3,293.14
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Suspension Lift System
- Provides an 8-Inch Lift Height
- Increases Ground Clearance With Enhanced Handling
- Front and Rear Stealth Shocks
- Fabtech Front Coil Springs, Rear Add-a-Leaf Kit
- Tubular Radius Arms With Dimple Die Side Plates
- Rear U-Bolt and Block Lift Kit Included
- Accommodates Up to 37x13.50 Tires and 20x10 Wheels
- Professional Installation Highly Recommended
- Limited Lifetime Warranty and a 5-Year, 60,000-Mile Powertrain Warranty
- Fits All 2017-2022 6.7L Powerstroke F-350 Super Duty SRW Models
| Brand | Fabtech |
| Lift Height | 8.00 Inch |
| Lift Kit Type | Radius Arm Lift |
| Lift Kit Max Tire Size | 37 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description

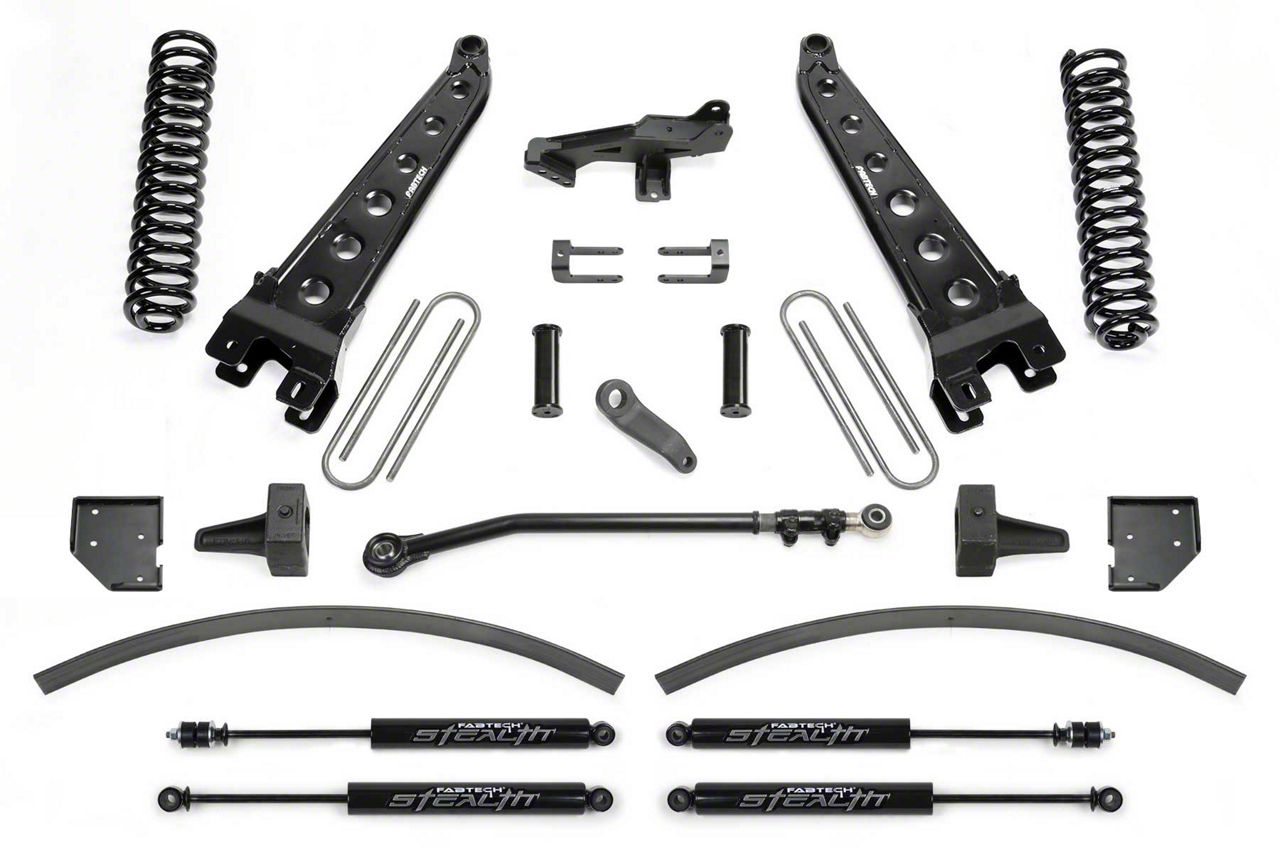

Superior All-Terrain Performance. Confidently tackle the challenging terrains with your lifted Super Duty by means of the Fabtech 8-Inch Radius Arm Lift System with Stealth Shocks. This suspension package comes with a pair of radius arms, front coil springs, track bar relocation bracket, Pitman arm, sway bar drops, Stealth shocks, add-a-leaf kit, and rear block and U-bolt kit. It accommodates up to 37x13.50 tires and 20x10 wheels with 4.50-inch backspacing.
Enhanced Damping Control. Fabtech designed the Stealth shocks with a monotube construction, featuring a high-flow, 46-mm piston for a smoother and more comfortable ride quality. Each shock is composed of a 50-mm seamless steel body, a Nitrocarburized piston rod, and a full floating piston to significantly reduce shock fade at high speeds. It is covered in a black finish that displays a raised nameplate for quality brand recognition and a stunningly fierce appeal.
Comfortable and Controlled Rides. The hot-wound coil springs in the front lift were made with exact specifications to deliver optimum suspension control. Their black, powder-coated finish attractively adorns your Super Duty's lifted set-up, while ensuring reliable protection from harsh outdoor elements. In addition, the rear lift features a heavy-duty add-a-leaf kit. Adding a leaf to your Super Duty’s leaf springs provide additional support to the vehicle, while offering improved load capacity.
Proper Steering and High Directional Control. The Fabtech radius arms are designed to provide directional control on the wheels’ longitudinal motion. They are fabricated with a tubular structure and dimple die side plates for superior strength. In addition, each radius arm is equipped with adjustable alignment cams to allow for caster adjustment. It also features Fabtech’s 5-ton joint on the pivot side with durable mounting for maximum vibration absorption. This suspension lift package also includes a Pitman arm crafted using forged steel with excellent design and structural rigidity. It ensures smooth, predictable steering with long-lasting functionality.
Professional Installation. This 8-Inch Radius Arm Lift System with Stealth Shocks is designed for a bolt-on installation. Its components directly attach to your vehicle’s mounting locations by means of the installation hardware provided. The entire kit installs in approximately a day with mechanical expertise required.
Warranties. Fabtech backs this 8-Inch Radius Arm Lift System with a limited lifetime warranty that covers factory defects in workmanship and materials. The Five Sixty Powertrain Warranty will apply if the claim falls within the first 5-year or 60,000-mile period of the vehicle. Some exclusions are indicated in the manufacturer’s warranty guide; please check the terms and conditions for full details.
Application. The Fabtech 8-Inch Radius Arm Lift System with Stealth Shocks fits all 2017-2022 6.7L Powerstroke F-350 Super Duty SRW models.
Fitment:
DetailsFabtech K2265M
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Driver Side Custom Radius Arm
- (1) Passenger Side Custom Radius Arm
- (1) Pitman Arm
- (1) Driver Side Front Bump Stop
- (1) Passenger Side Front Bump Stop
- (1) Steering Stabilizer Drop
- (1) Driver Side Sway Bar Drop
- (1) Passenger Side Sway Bar Drop
- (1) Track Bar Drop Bracket
- (1) Track Bar Support Tube
- (2) Front Stealth Shocks
- (2) Rear Stealth Shocks
- (4) Bushings
- (2) Sleeves
- (1) Alignment Cam Half Kit
- (2) Brake Lines
- (2) Brake Line Unions
- (5) Brake Line Brackets
- (1) Rear Add-a-Leaf Kit
- (2) 5-Inch Block
- (4) U-Bolts
- (1) Shim Kit
- (2) Sway Bar Brackets
- Installation Hardware
4.7
Reviews of Fabtech Suspension Products (47)
Reviews of Fabtech Suspension products have an average rating of 4.7 out of 5
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My F-350
- 6.7L V8 Power-Stroke - 17, 18, 19, 20, 21, 22
