Find 6 Inch to 8 Inch Lift Kits for your F-350
Fabtech 8-Inch Radius Arm Suspension Lift Kit with Performance Shocks and Rear Leaf Springs (11-16 4WD F-350 Super Duty)Find parts that fit my vehicle
Item SSD13403
$0.00
Our Price
$3,150.06
Up to 10% off for Military & First Responders! See Details
Out of Stock
$99.00 Oversized Item Fee
Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Suspension Lift System
- Lifts Truck by 8 Inches to Increase Ground Clearance
- Facilitates Superior Handling and Excellent Off-Road Stability
- Front and Rear Performance Twin-Tube Shocks
- Fabtech Front Coil Springs and Rear Leaf Springs
- With Full, Tubular Radius Arms
- Rear U-Bolt Lift Kit
- Accommodates Up to 37x13.50 Tires and 20x10 Wheels
- Professional Installation Highly Recommended
- Limited Lifetime Warranty and a 5-Year, 60,000-Mile Powertrain Warranty
- Fits All 2011-2016 4WD Ford Super Duty F-350 Models
| Brand | Fabtech |
| Lift Height | 8.00 Inch |
| Lift Kit Type | Radius Arm Lift |
| Lift Kit Max Tire Size | 37 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Exceptional Suspension Upgrade. Boost your Super Duty’s off-road performance by using the Fabtech 8-Inch Radius Arm Lift System with Performance Shocks and Rear Leaf Springs. This performance suspension lift package consists of high-quality components, such as the Fabtech radius arm, twin-tube performance shocks, coil springs, rear leaf springs and U-bolt kit, and Pitman arm to deliver enhanced off-road driveability on various terrains.
Performance Shocks. Fabtech Performance Shocks feature a twin-tube, hydraulic construction with high-velocity, 9-stage valving for enhanced damping capacity. Each shock has a hardened chrome piston rod and a closed-cell, foam insert that reduces shock fade at high speeds. In addition, the outer tube acts as a reservoir for displaced fluid from the shaft volume during the compression stroke. This overall design provides significantly smoother drives on rugged terrains, while maintaining excellent traction.
Front Coil Springs and Rear Leaf Springs. The highly durable and well-designed coil springs offer better suspension control. The black, powder-coated finish provides excellent corrosion resistance with extra visual appeal. Additionally, the rear leaf springs facilitate proper axle alignment, while offering extra support to the vehicle load.
Fabtech Radius Arms and Pitman Arm. Fabtech boasts of CNC-engineered components to ensure that you can successfully and skillfully maneuver your Super Duty with optimum articulation. The tubular radius arms feature Fabtech’s proprietary 5-ton joint on the pivot side and adjustable alignment cams on the axle. The dimple die side plates provide additional rigidity to the radius arms for more stable operations. Moreover, the Pitman arm, which is crafted using forged steel maintains proper steering geometry.
Installation. This 8-Inch Radius Arm Lift System is designed for a bolt-on installation. Its components directly attach to your vehicle’s mounting locations by means of the installation hardware provided. The entire kit installs in approximately a day with mechanical expertise required.
Warranties. A limited lifetime warranty is offered by Fabtech for this 8-Inch Radius Arm Lift System against factory defects in workmanship and materials. Should this warranty be claimed within the first 5-year or 60,000-mile period of the vehicle, the Five Sixty Powertrain Warranty program will come into effect. Some exclusions are indicated in the manufacturer’s warranty guide; please check the terms and conditions for full details.
Application. The Fabtech 8-Inch Radius Arm Lift System with Performance Shocks and Rear Leaf Springs fits all 2011-2016 4WD Ford Super Duty F-350 models.
Shop All 6 to 8 Inch Truck Lift Kits
Shop All Truck Parts And Accessories
Shop All Truck Lift Kits
Fitment:
- 2011 Ford F-350
- 2012 Ford F-350
- 2013 Ford F-350
- 2014 Ford F-350
- 2015 Ford F-350
- 2016 Ford F-350
Fabtech K2128
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

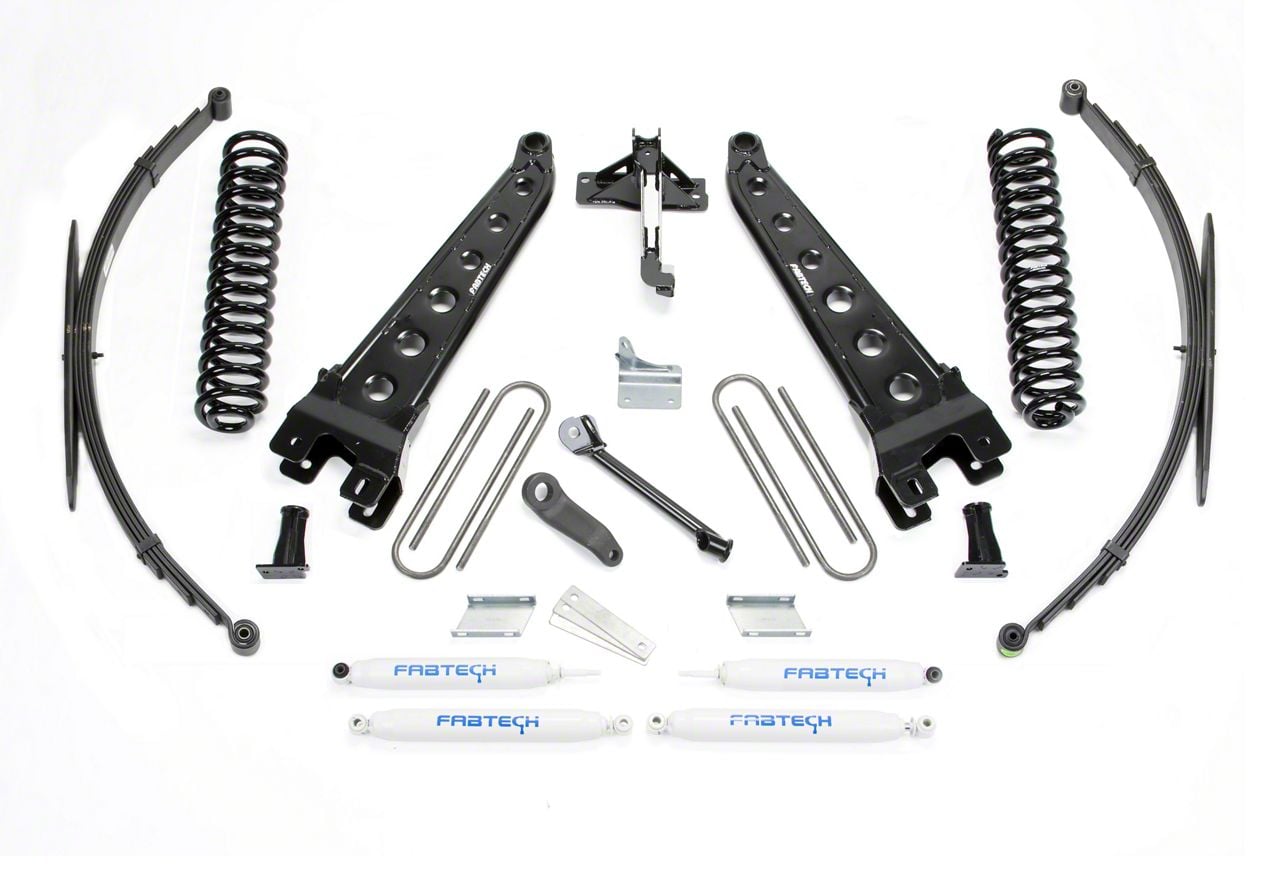

What's in the Box
- (1) Driver Side Custom Radius Arm
- (1) Passenger Side Custom Radius Arm
- (2) Radius Arm Drops
- (1) Pitman Arm
- (1) Driver Side Front Bump Stop
- (1) Passenger Side Front Bump Stop
- (1) Steering Stabilizer Drop
- (1) Driver Side Sway Bar Drop
- (1) Passenger Side Sway Bar Drop
- (1) Track Bar Drop Bracket
- (1) Track Bar Support Tube
- (2) Front Performance Shocks
- (2) Rear Performance Shocks
- (4) Bushings
- (2) Sleeves
- (1) Alignment Cam Half Kit
- (2) Brake Lines
- (2) Brake Line Unions
- (5) Brake Line Brackets
- (2) Rear Leaf Springs
- (4) U-Bolts
- (1) Shim Kit
- (2) Sway Bar Brackets
- Installation Hardware
4.7
Reviews of Fabtech Suspension Products (47)
Reviews of Fabtech Suspension products have an average rating of 4.7 out of 5
Questions & Answers
10 More Questions
Will It Fit My F-350
- 6.2L V8 - 11, 12, 13, 14, 15, 16
- 6.7L V8 Power-Stroke - 11, 12, 13, 14, 15, 16
