Find 6 Inch to 8 Inch Lift Kits for your F-350
Fabtech 8-Inch Radius Arm Suspension Lift Kit with Dirt Logic Shocks and Rear Leaf Springs (11-16 4WD F-350 Super Duty)Find parts that fit my vehicle
Item SSD13401
$0.00
Our Price
$4,276.58
Out of Stock
$99.00 Oversized Item Fee
Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Suspension Lift System
- Provides an 8-Inch Lift Height
- Offers Superior Off-Road Driveability and Improved Handling
- Front and Rear Dirt Logic Shocks
- Fabtech Front Coil Springs
- With Full, Tubular Radius Arms
- Rear Leaf Springs, U-Bolt and Block Lift Kit Included
- Accommodates Up to 37x13.50 Tires and 20x10 Wheels
- Professional Installation Highly Recommended
- Limited Lifetime Warranty and a 5-Year, 60,000-Mile Powertrain Warranty
- Fits All 2011-2016 4WD Ford Super Duty F-350 Models
| Brand | Fabtech |
| Lift Height | 8.00 Inch |
| Lift Kit Type | Radius Arm Lift |
| Lift Kit Max Tire Size | 37 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Enhanced Off-Road Capabilities. Conquer the great outdoors by installing the Fabtech 8-Inch Radius Arm Lift System with Dirt Logic Shocks and Rear Leaf Springs on your Super Duty. It includes well-engineered components to ensure more stability and control on your rough off-road adventures. This lift system accommodates tires up to 37x13.50 inches and maximum wheel size of 20x10 with 4.50-inch backspacing. It comes with heavy-duty radius arms, Dirt Logic shocks, front coil springs, Pitman arm, track bar relocation bracket, sway bar drop brackets, rear leaf springs, and a rear U-bolt lift kit.
Enhanced Damping Capacity. This lift system includes front and rear pairs of the Dirt Logic 2.25 Shocks. These shocks feature 304 stainless steel bodies, billet aluminum piston, and NitroSteel black piston rods. In addition, they are furnished with urethane bushings to minimize the rattling. This overall design effectively smoothens the vehicle movement over bumps and rugged trails, while ensuring that your tires remain in contact with the road surface.
Front Coil Springs and Rear Leaf Springs. The front coil springs offer the necessary mechanical strength for suspension support. Fabtech ensures that these springs were engineered with optimum ratings and design to deliver excellent suspension control. They are also fortified by a black, powder-coated finish for long-lasting corrosion resistance and extra durability. In addition, the rear leaf springs sport a multiple leaf spring pack to properly position the axle and to support the vehicle load.
Control, Balance, and Responsive Steering. Fabtech offers superior ride control with the full tubular radius arms in this lift system. These radius arms are reinforced by the dimple die side plates with an adjustable alignment cam at the axle for optimum caster adjustment. The highly durable Pitman arm provides strong pivoting support and maintains proper steering geometry. These components ensure that you can properly and skillfully maneuver with optimum articulation.
Installation. This 8-Inch Radius Arm Lift System is designed for a bolt-on installation. Its components directly attach to your vehicle’s mounting locations by means of the installation hardware provided. The entire kit installs in approximately 1 day with mechanical expertise required.
Warranties. A limited lifetime warranty is offered by Fabtech for this 8-Inch Radius Arm Lift System against factory defects in workmanship and materials. Should this warranty be claimed within the first 5-year or 60,000-mile period of the vehicle, the Five Sixty Powertrain Warranty program will come into effect. Some exclusions are indicated in the manufacturer’s warranty guide; please check the terms and conditions for full details.
Application. The Fabtech 8-Inch Radius Arm Lift System with Dirt Logic Shocks and Rear Leaf Springs fits all 2011-2016 4WD Ford Super Duty F-350 models.
Shop All 6 to 8 Inch Truck Lift Kits
Shop All Truck Parts And Accessories
Shop All Truck Lift Kits
Fitment:
DetailsFabtech K2128DL
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

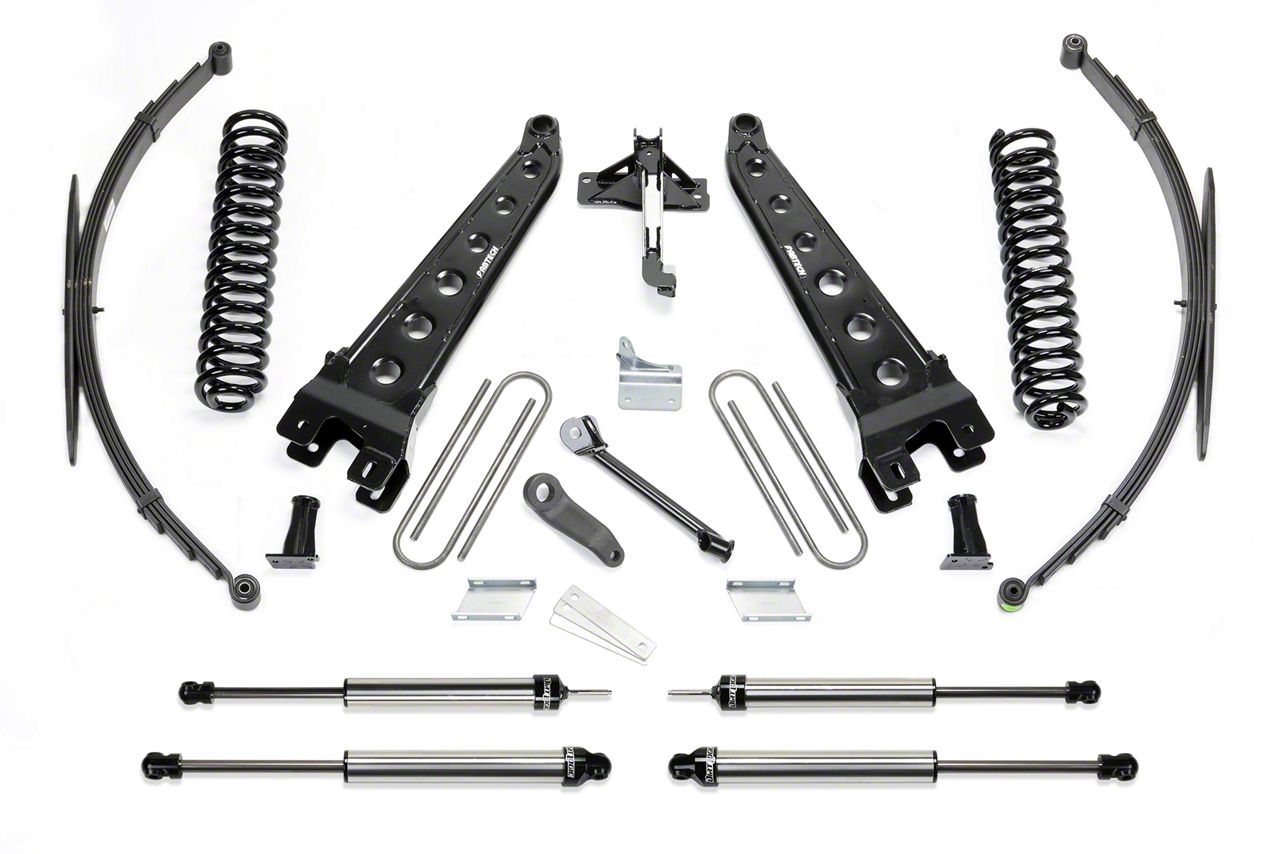

What's in the Box
- (1) Driver Side Custom Radius Arm
- (1) Passenger Side Custom Radius Arm
- (2) Radius Arm Drops
- (1) Pitman Arm
- (1) Driver Side Front Bump Stop
- (1) Passenger Side Front Bump Stop
- (1) Steering Stabilizer Drop
- (1) Driver Side Sway Bar Drop
- (1) Passenger Side Sway Bar Drop
- (1) Track Bar Drop Bracket
- (1) Track Bar Support Tube
- (2) Front Dirt Logic 2.25 Shocks
- (2) Rear Dirt Logic 2.25 Shocks
- (4) Bushings
- (2) Sleeves
- (1) Alignment Cam Half Kit
- (2) Brake Lines
- (2) Brake Line Unions
- (5) Brake Line Brackets
- (2) Rear Leaf Springs
- (4) U-Bolts
- (1) Shim Kit
- (2) Sway Bar Brackets
- Installation Hardware
4.7
Reviews of Fabtech Suspension Products (47)
Reviews of Fabtech Suspension products have an average rating of 4.7 out of 5
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My F-350
- 6.2L V8 - 11, 12, 13, 14, 15, 16
- 6.7L V8 Power-Stroke - 11, 12, 13, 14, 15, 16
