Find 6 Inch to 8 Inch Lift Kits for your F-350

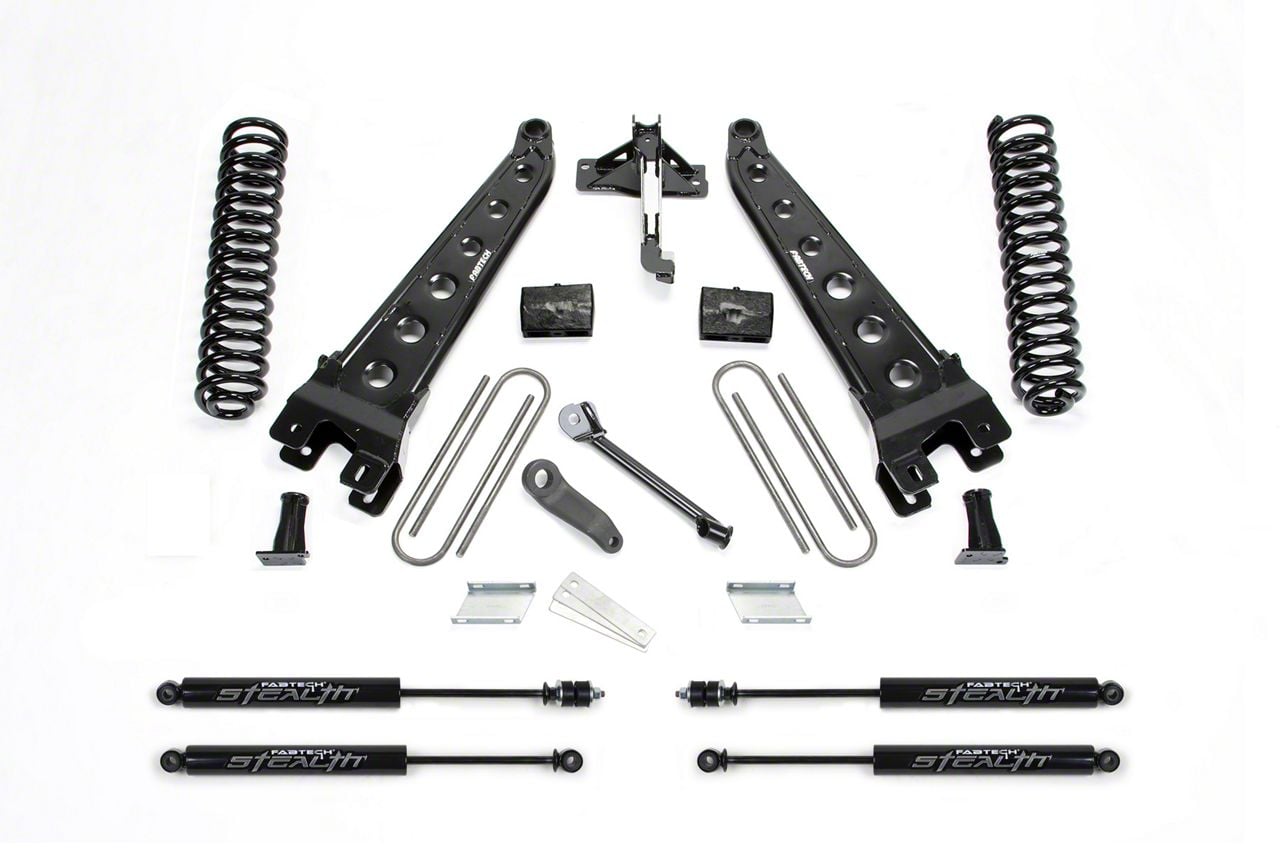

Fabtech 6-Inch Radius Arm Suspension Lift Kit with Stealth Shocks (17-22 4WD 6.7L Powerstroke F-350 Super Duty)Find parts that fit my vehicle
Item SSD13385
$0.00
Our Price
$2,465.11
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Suspension Lift Kit
- Provides 6-Inches of Lift
- Improves Stance and Ground Clearance
- Kit Includes Trac Bar Relocation Bracket, Pitman Arm, and Sway Bar Drops
- Patented Tubular Radius Arms
- Mono Tube Shocks
- Replacement Lift Coil Springs
- Vehicle-Specific Lift Blocks
- Accommodates Up to 37-Inch Tires
- Cutting and Grinding Required
- Limited Lifetime Warranty
- For Non Dually Models Only
- Will Not Fit Vehicles With Gas Motors
- Fits 2017-2022 4WD 6.7L Super Duty F-350 Models
| Brand | Fabtech |
| Lift Height | 6.00 Inch |
| Lift Kit Type | Radius Arm Lift |
| Lift Kit Max Tire Size | 37 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Drive With Confidence. Delivering a substantial lift for your Super Duty is no easy task and requires a kit that you can trust. The Fabtech 6-Inch Radius Arm Lift System with Stealth Shocks is designed to provide a superior ride, while also being tough and strong enough to withstand the demands of the harshest trails.
Tubular Radius Arms. These Radius Arms are able to deliver superior strength and toughness due to their tubular design. Additional reinforcement is provided by dimple die side plates and to ensure maximum performance, the Radius Arms have adjustable alignment cams for fine tuning caster.
High-Performance Stealth Shocks. These Stealth Shocks are precision-tuned specially to work with oversized tires. Featuring a monotube design, these shocks vehicle-specific valving to deliver an excellent ride. Additionally, its floating piston design reduces shock fade for consistent performance on off-road conditions.
Superior Lift Coil Springs. The kit comes complete with a pair of replacement lift coil springs. These coils are made from high-grade materials for outstanding performance and service life.
Fabtech Rear Blocks. To maintain excellent ride quality, these rear blocks are precision-machined specific to the vehicle. They’re made to be strong and durable for off-road use.
Some Modifications Required. Minor cutting and grinding of the factory components are required to properly fit some components. Additionally, vehicles equipped with 2-piece driveshaft will require the separate purchase of a Fabtech Driveshaft Shim Kit. Also if the vehicle has the factory rear sway bars, an extended sway bar link kit will also be required for purchase.
Comes With Limited Lifetime Warranty. The Fabtech 6-Inch Radius Arm Lift System is warrantied against defects in materials or workmanship for as long as the original retail owner owns the vehicle on which the kit was originally installed. Exclusions will apply.
Application. This Fabtech 6-Inch Radius Arm Lift System with Stealth Shocks is designed to fit 2017-2022 4WD 6.7L Super Duty F-350 models. It is designed for non-dually models. It will not fit vehicles with gasoline motors.
Shop All 6 to 8 Inch Truck Lift Kits
Shop All Truck Parts And Accessories
Shop All Truck Lift Kits
Fitment:
DetailsFabtech K2218M
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (2) Front Stealth Shocks
- (2) Rear Stealth Shocks
- (1) Coil Box Kit
- (1) Rear Block Kit
- (1) Component Box
4.7
Reviews of Fabtech Suspension Products (47)
Reviews of Fabtech Suspension products have an average rating of 4.7 out of 5
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My F-350
- 6.7L V8 Power-Stroke - 17, 18, 19, 20, 21, 22
Not Compatible on Vehicles with Dual Rear (Dually) Wheels
