Find 3 Inch to 5 Inch Lift Kits for your F-350
Fabtech 4-Inch Radius Arm Lift Kit with Performance Shocks (17-22 4WD 6.7L Powerstroke F-350 Super Duty)Find parts that fit my vehicle
Item SSD13356
$0.00
Our Price
$2,297.95
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Suspension Lift Kit
- Provides 4 Inches of Lift, Front and Rear
- Improves Ground Clearance and Off-Road Capabilities
- Front and Rear Performance Shocks
- Sturdy Coil Springs
- Proprietary Radius Arms
- Rear Lift Blocks
- Allows Use of Up to 35-Inch Wide Tires
- Professional Installation Recommended
- Limited Lifetime Warranty
- Fits All 2017-2022 Ford F-350 6.7L Super Duty 4WD Models
| Brand | Fabtech |
| Lift Height | 4.00 Inch |
| Lift Kit Type | Radius Arm Lift |
| Lift Kit Max Tire Size | 35 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Total Off-Road Look and Performance. The Fabtech 4-Inch Radius Arm Lift System With Performance Shocks is the suspension lift kit you need when you want to give your Super Duty off-road looks and performance. This lift kit offers 4 inches of front and rear lift, enabling you to use wider 35-inch tires for that aggressive off-road stance. Moreover, this increased ground clearance gives your truck the capability to take on more challenging off-road trails.
Front and Rear Performance Shocks. The Fabtech 4-Inch Radius Arm Lift System includes front and rear performance shocks. These shocks use a twin-tube hydraulic design and 9-stage velocity valving to give your truck the right amount of dampening relative to the driving surface. These shocks also come with a closed cell insert in the outer tube that works to eliminate air pockets for consistent performance.
Sturdy Coil Springs With 4 Inches of Lift. The Fabtech Radius Arm Lift System provides its 4 inches of lift using a pair of sturdy coil springs. These coil springs are manufactured from high-grade carbon-steel for superior strength. Additionally, these coil springs receive a durable black powder-coat finish for maximum rust protection.
Proprietary Radius Arms. The Fabtech Radius Arm Lift System uses radius arms that feature a proprietary design. These radius arms work to position the coil springs with the axle resulting in ideal suspension geometry and better steering feel. These radius arms are precision-made from superior-grade steel and are fully-welded for strength. Additionally, these arms feature dimpled side plates for increased stiffness.
Tough Rear Lift Blocks. The Fabtech 4-Inch Radius Arm Lift System gets its rear lift from the included rear lift blocks. These lift blocks are manufactured from a tough alloy making these components super durable. These lift blocks also receive a black powder-coat finish for corrosion protection.
Direct Install Procedure With Cutting and Trimming. Installing the Fabtech 4-Inch Radius Arm Lift System With Performance Shocks requires some cutting and drilling for proper fitment of certain components. Additionally, installation can take several hours to a day depending on your mechanical abilities. As such, professional installation is recommended.
Covered by a Limited Lifetime and a 1-Year Warranty. The Fabtech 4-Inch Radius Arm Lift System With Performance Shocks’ hard components are covered by a limited lifetime warranty, while the shocks absorbers are covered by a 1-year limited warranty. Please visit the manufacturer’s website for further details.
Application. The Fabtech 4-Inch Radius Arm Lift System With Performance Shocks fit all 2017-2022 Ford F-350 6.7L Super Duty 4WD models.
Shop All 3 to 5 Inch Truck Lift Kits
Shop All Truck Parts And Accessories
Shop All Truck Lift Kits
Fitment:
DetailsFabtech K2215
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

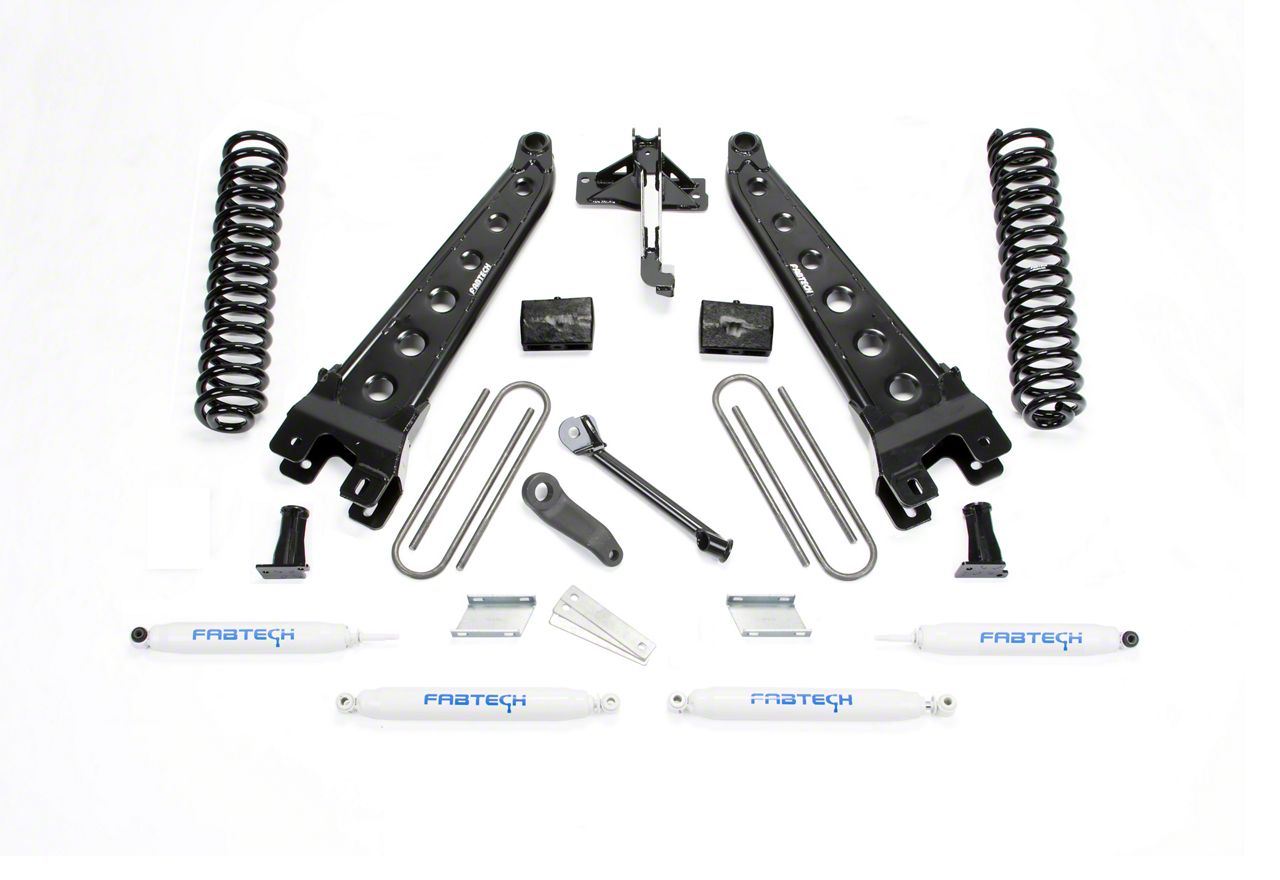

What's in the Box
- (2) Front Shocks
- (2) Rear Shocks
- (1) Pitman Arm
- (2) Front Coil Springs
- (1) Front Bump Stop
- (2) Radius Arms
- (2) Sway Bar Drops
- (1) Track Bar Drop Bracket
- (1) Track Bar Support Tube
- (1) Steering Stabilizer Bracket
- (1) Steering Stabilizer Clevis Mount
- (2) Lift Blocks
- (4) U-Bolts
- Installation Hardware
4.7
Reviews of Fabtech Suspension Products (47)
Reviews of Fabtech Suspension products have an average rating of 4.7 out of 5
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My F-350
- 6.7L V8 Power-Stroke - 17, 18, 19, 20, 21, 22
Not Compatible on Vehicles with Dual Rear (Dually) Wheels
