Find 3 Inch to 5 Inch Lift Kits for your F-350
Fabtech 4-Inch Radius Arm Lift Kit with Dirt Logic Shocks (17-22 4WD 6.2L F-350 Super Duty)Find parts that fit my vehicle
Item SSD13352
$0.00
Our Price
$3,424.47
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Suspension Lift Kit
- Provides 4 Inches of Lift, Front and Rear
- Improves Ground Clearance and Off-Road Capabilities
- Front and Rear Dirt Logic Shocks
- Robust Coil Springs
- Patented Radius Arms
- Rear Lift Blocks
- Allows Use of Up to 35-Inch Wide Tires
- Professional Installation Recommended
- Limited Lifetime Warranty
- Fits All 2017-2022 Ford F-350 6.2L Super Duty 4WD Models
| Brand | Fabtech |
| Lift Height | 4.00 Inch |
| Lift Kit Type | Radius Arm Lift |
| Lift Kit Max Tire Size | 35 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Take On The Toughest Trails. If you’re looking to take on tougher trails with your Ford Super Duty, then an upgrade to your truck’s lift is in order. The Fabtech 4-Inch Radius Arm Lift System With Dirt Logic Shocks are the ideal suspension lift kit for this purpose. This lift kit is designed to provide 4 inches of overall lift, while maintaining comfortable ride quality and proper suspension geometry. The result is enough clearance to take on tougher off-road trails, while remaining civilized on the highway. This kit also allows you to use 35-inch wide tires for that tough off-road look.
Front and Rear Dirt Logic Shocks. The Fabtech 4-Inch Radius Arm Lift System gets its superior ride quality from the front and rear Dirt Logic shocks. These shock absorbers use proprietary high-performance shock oil that maintains its integrity even through rapid cycles. Additionally, these shocks are built to last using a 2.25-inch OD stainless steel body, 2-inch OD billet aluminum piston, and a 0.87-inch thick NitroSteel piston rod.
Robust Coil Springs With 4 Inches of Lift. The Fabtech 4-Inch Radius Arm Lift System provides its 4 inches of front lift via 2 robust coil springs. These springs are fabricated from high-grade carbon-steel for maximum strength. Additionally, each receives a tough, black powder-coat finish for increased protection against rust.
Patented Radius Arms. The Fabtech 4-Inch Radius Arm Lift System uses a pair of radius arms that feature a patented design. These radius arms provide proper positioning of the coil springs with the axle. This ensures proper suspension geometry is maintained, which helps provide the ideal steering feel. Additionally, these radius arms are manufactured from high-grade steel and feature precision-formed dimpled side plates for added stiffness.
Heavy-Duty Rear Lift Blocks. This Fabtech 4-Inch Radius Arm Lift System’s rear lift is provided by a pair of durable lift blocks. These blocks are cast from a high-grade alloy that won’t crack or compress. These lift blocks are then finished in a black powder coating preventing corrosion.
No-Nonsense Installation With Cutting and Trimming. The various components of the Fabtech 4-Inch Radius Arm Lift System With Dirt Logic Shocks mount onto your truck using the included hardware. Some cutting and drilling are necessary to achieve a proper fit. Additionally, you will need several hours to a whole day for installation, depending on your mechanical knowledge. If you’re not confident with this type of install, professional installation is always an option.
Comes With a Limited Lifetime Warranty. The Fabtech 4-Inch Radius Arm Lift System With Dirt Logic Shocks comes with a limited lifetime warranty covering the hard components, and a 1-year limited warranty covering the shocks absorbers. Please visit the manufacturer’s website for more details.
Application. The Fabtech 4-Inch Radius Arm Lift System With Dirt Logic Shocks fit all 2017-2022 Ford F-350 6.2L Super Duty 4WD models.
Shop All 3 to 5 Inch Truck Lift Kits
Shop All Truck Parts And Accessories
Shop All Truck Lift Kits
Fitment:
DetailsFabtech K2253DL
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

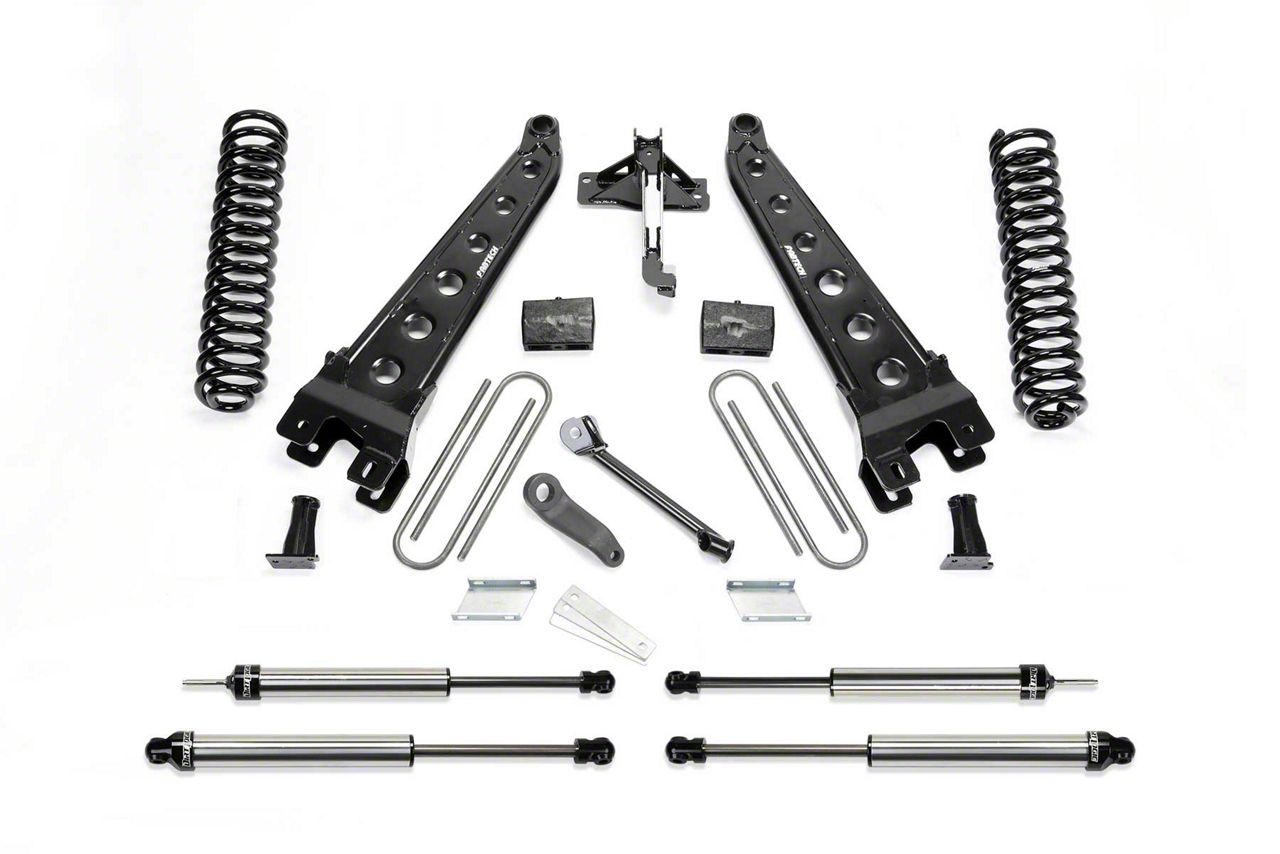

Installation & What's in the Box
Installation Info
What's in the Box
- (2) Front Shocks
- (2) Rear Shocks
- (1) Pitman Arm
- (2) Front Coil Springs
- (1) Front Bump Stop
- (2) Radius Arms
- (2) Sway Bar Drops
- (1) Track Bar Drop Bracket
- (1) Track Bar Support Tube
- (1) Steering Stabilizer Bracket
- (1) Steering Stabilizer Clevis Mount
- (2) Lift Blocks
- (4) U-Bolts
- Installation Hardware
4.7
Reviews of Fabtech Suspension Products (47)
Reviews of Fabtech Suspension products have an average rating of 4.7 out of 5
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My F-350
- 6.2L V8 - 17, 18, 19, 20, 21, 22
Not Compatible on Vehicles with Dual Rear (Dually) Wheels
