Find 3 Inch to 5 Inch Lift Kits for your F-350
Fabtech 4-Inch 4-Link Lift Kit with Front Dirt Logic 2.25 Reservoir Shocks and Rear Dirt Logic Shocks (17-22 4WD 6.2L F-350 Super Duty)Find parts that fit my vehicle
Item SSD13328
$0.00
Our Price
$4,245.46
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Four-Link Suspension Lift System
- Lifts Truck by 4 Inches to Increase Ground Clearance
- Enables Superior Handling and Enhanced Off-Road Stability
- Comes With a Rear Block and U-Bolt Kit
- Front Dirt Logic 2.25 Reservoir Shocks and Rear Dirt Logic Shocks
- Includes 4-Inch Front Coil Springs
- With 2-Inch Heavy Wall Links
- Bump Stop Extensions Included
- Covered in a Durable Black Finish
- Accommodates Up to 35x12 Tires and 20x9 Wheels
- Professional Installation Highly Recommended
- Backed by a Limited Lifetime Warranty and a 5-Year, 60,000-Mile Powertrain Warranty
- Designed for All 2017-2022 4WD 6.2L Ford Super Duty F-350 Models
| Brand | Fabtech |
| Lift Height | 4.00 Inch |
| Lift Kit Type | 4-Link Lift |
| Lift Kit Max Tire Size | 35 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Enhanced Off-Road Dynamics. Elevate your Super Duty's off-road style by giving it an enhanced stance with the Fabtech 4-Inch 4-Link Lift System with Front Dirt Logic 2.25 Reservoir Shocks and Rear Dirt Logic Shocks. Fabtech includes high-quality coil springs, Dirt Logic shock absorbers, suspension links, sway bar drops, Pitman arm, track bar relocation bracket, and rear lift kit to ensure an aggressive performance, excellent ride quality, and enhanced ground dynamics.
Dirt Logic Shocks. The Front Dirt Logic stainless steel reservoir shocks feature black-anodized, 6061 aluminum reservoir bodies. This construction ensures greater heat dissipation to keep the shock cooler, while reducing fade during aggressive off-road use. The Rear Dirt Logic shocks are made of high-grade stainless steel bodies. Moreover, these front and rear shocks were designed with vehicle-specific lengths for complete compatibility and accurate rates of travel.
High-Strength Coil Springs. With Fabtech’s technology, the 4-inch coil springs were hot-wound and optimized for high load demands to deliver better handling. These components aid in providing a comfortable ride when treading through rugged terrains without compromising on-road driveability. Additionally, these springs exhibit reinforced corrosion resistance and visual appeal, thanks to the black, powder-coated finish.
Precise Steering Dynamics. Fabtech’s advanced forging process and CNC technology ensure that the dropped Pitman arm is made with high dimensional accuracy. This ensures that the proper steering geometry is achieved for more responsive and smoother operations.
Heavy-Duty Suspension Links. With the high-strength links included in this suspension lift system, you are guaranteed excellent directional stability, especially on highly irregular terrains. The axle side is equipped with adjustable alignment cams to dial in the caster for the new ride height. The frame pivot side uses 5-ton joints for superior strength. This kit also comes with durable link pockets for reinforced mounting. Moreover, these links are furnished with uniballs for smoother and quieter operations, especially useful on rugged trails.
Bolt-On Installation. This 4-Inch 4-Link Lift System with Front Dirt Logic 2.25 Reservoir Shocks and Rear Dirt Logic Shocks features a bolt-on installation. It directly attaches to your vehicle’s factory mounting locations by means of the installation hardware provided. The entire kit installs in approximately 6 hours with mechanical expertise required.
Lifetime Warranty. Fabtech offers a limited lifetime warranty that covers factory defects in workmanship and materials of this 4-Inch 4-Link Lift System. The Five Sixty Powertrain Warranty will apply if the claim falls within the first 5-year or 60,000-mile period of the vehicle. Some exclusions are indicated in the manufacturer’s warranty guide; please check the terms and conditions for full details.
Application. The Fabtech 4-Inch 4-Link Lift System with Front Dirt Logic 2.25 Reservoir Shocks and Rear Dirt Logic Shocks is designed for all 2017-2022 4WD 6.2L Ford Super Duty F-350 models.
Shop All 3 to 5 Inch Truck Lift Kits
Shop All Truck Parts And Accessories
Shop All Truck Lift Kits
Fitment:
DetailsFabtech K2292DL
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

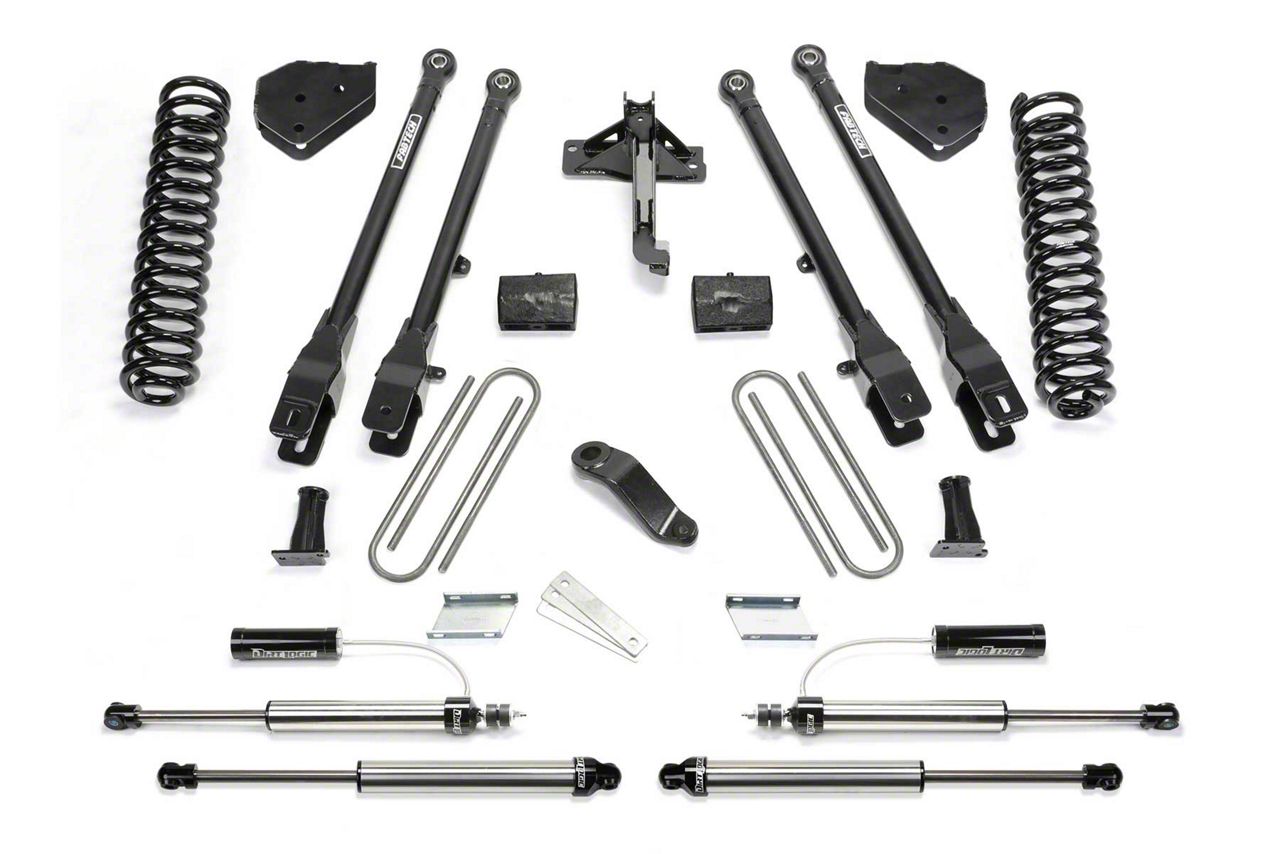

What's in the Box
- (2) Lower Links
- (2) Upper Links
- (2) Four-Link Pockets
- (1) Pitman Arm
- (2) Four-Inch Bump Stop Extensions
- (1) Track Bar Drop Bracket
- (1) Steering Stabilizer Bracket
- (1) Steering Stabilizer Clevis Mount
- (1) Sway Bar Drop - Driver Side
- (1) Sway Bar Drop - Passenger Side
- (2) Four-Inch Front Coils
- (2) 2.25 Front Dirt Logic Reservoir Shocks
- (2) 2.25 Rear Dirt Logic Shocks
- (1) Rear Box Kit
- Hardware Subassembly
- Installation Hardware
4.7
Reviews of Fabtech Suspension Products (47)
Reviews of Fabtech Suspension products have an average rating of 4.7 out of 5
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My F-350
- 6.2L V8 - 17, 18, 19, 20, 21, 22
Not Compatible on Vehicles with Dual Rear (Dually) Wheels
