Edge Diesel Evolution CTS3 Tuner (11-19 6.7L PowerStroke F-250 Super Duty)Find parts that fit my vehicle
Item SD7557
$0.00
1 Reviews
Our Price
$689.95 each
Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Frequently Bought Together
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- Edge Diesel Evolution CTS3 Tuner
- Improves Horsepower, Torque and Overall Performance
- Pre-Configured Tunes - Including Daily Driving, Towing, Performance and Extreme
- Full Color, 5-inch, High-Resolution Touch Screen Display
- Easy to Understand Graphic Interface
- Customizable Gauges and Backgrounds with MyStyle
- Reads/Clears DTC Trouble Codes
- Data Acquisition - Advanced + PIDS
- Internet / Wi-Fi Updateable
- Tune Multiple Vehicles with One Device - Additional Licenses Required
- 50 State Legal, part has EO Number D-802-13/D-802-5
- Fits 2011-2019 6.7L PowerStroke F-250 Super Duty Models
Description
Horsepower and Torque. Unlock the hidden power potential that your vehicle has to offer, with an Edge Diesel Evolution CTS3 Tuner. The Evolution CTS3 Tuner comes preloaded with Edge's very own pre-configured tune files. When your vehicle rolled off the assembly line, the manufacturer programmed it to cater to the needs of the daily driver, not the performance enthusiast who adds aftermarket bolt-on modifications in the search of more power. After loading one of the Edge's Pre-Configured Daily Driving, Towing, Performance or Extreme tunes, you will see a noticeable gain in horsepower, torque and performace.
Adjustable Parameters. The Edge Diesel Evolution CTS3 Tuner features end user adjustable parameters so you can further customize the tune to maximize the performance of your modifications. These parameters can be adjusted on the Edge Pre-Configured Tunes and/or the stock tune. Please note not all adjustments are available on all models/vehicles.
- Calibrate Speedometer for Gear Ratio: 3.15 to 4.56
- Calibrate Speedometer for Tire Size: 28 to 40 inch
- Speed Limiter
- Shift Points - Edge Optimized
- Shift Firmness - Edge Optimized
- TPMS Threshold Adjust - 0-90
- Disable Auto Start / Stop
- Transmission Tuning - Edge Optimized
Performance Testing. Another really cool feature of the Edge Diesel Evolution CTS3 Tuner is that it allows you to measure your 0-60 time and 1⁄4 mile elapsed time, all with just a push of a button. By keeping track of your 0-60 and 1/4 mile times you can see the difference your latest go fast mods have made.
WiFi Updateable. The Edge Diesel Evolution CTS3 Tuner is WiFi-capable meaning you will no longer have to plug it into your computer to receive the latest firmware updates, but that is still an option. Once setup with your Wi-Fi password, the Evolution CTS3 Tuner will download the latest firmware updates via the internet. It is recommended to update your Evolution CTS3 Tuner to ensure you have the latest software updates and calibration files before installation.
Data Logging and Monitoring. With a full color, 5-inch high definition screen, the Edge Diesel Evolution CTS3 Tuner will allow you to keep a close eye on critical engine parameters. By simply plugging the supplied connector into the OBD2 port below the steering wheel, you will be able to read your vehicles data in real time. With the Edge Diesel Evolution CTS3 Tuner you can monitor parameters such as EGT, charge air temperature, regen cycles, engine load, battery voltage, throttle position and much more.
Diagnostics Tool. The Edge Diesel Evolution CTS3 Tuner can also be used as a diagnostic code reader. Save yourself time and money by reading and clearing your own Diagnostic Trouble Codes (DTCs) rather than paying a dealer to do the same. It's as easy as a few simple steps.
MyStyle™ Software. The included MyStyle™ software allows you to choose from a variety of custom Edge backgrounds or simply upload an image of your own choice. Crop and save them directly to your Evolution device for the ultimate in customization.
Tune Multiple Vehicles. The Edge Diesel Evolution CTS3 Tuner has the ability to tune multiple vehicles with just one device. However, please note that additional vehicle licenses are required.
Easy to Load; Easy to Restore. When you load your Edge tune on your vehicle, the tuner automatically stores your vehicle's factory settings. To return to the original factory settings, just plug the tuner back in, select the option to restore the factory settings, and you're done. This is ideal for visiting dealerships for warranty work.
Application. This Edge Diesel Evolution CTS3 Tuner is designed to fit 2011-2019 6.7L PowerStroke F-150 mod
Fitment:
- 2011 Ford F-250
- 2012 Ford F-250
- 2013 Ford F-250
- 2014 Ford F-250
- 2015 Ford F-250
- 2016 Ford F-250
- 2017 Ford F-250
- 2018 Ford F-250
- 2019 Ford F-250
Edge 85400-100
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box

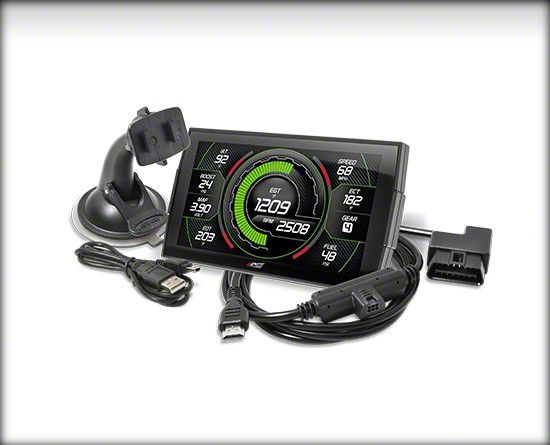

- (1) Evolution CTS3 Tuner
- (1) OBD-II Cable
- (1) USB to Mini-USB Cable
5.0
Customer Reviews (1)
Reviews of Edge Tuner products have an average rating of 4.5 out of 5
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My F-250
- 6.7L V8 Power-Stroke - 11, 12, 13, 14, 15, 16, 17, 18, 19
