Carli Suspension 2-Inch Commuter Lift System with R1 Coil Springs and FOX 2.0 IFP Shocks (19-24 RAM 2500 Power Wagon)Find parts that fit my vehicle

Item HR44212
Product Image

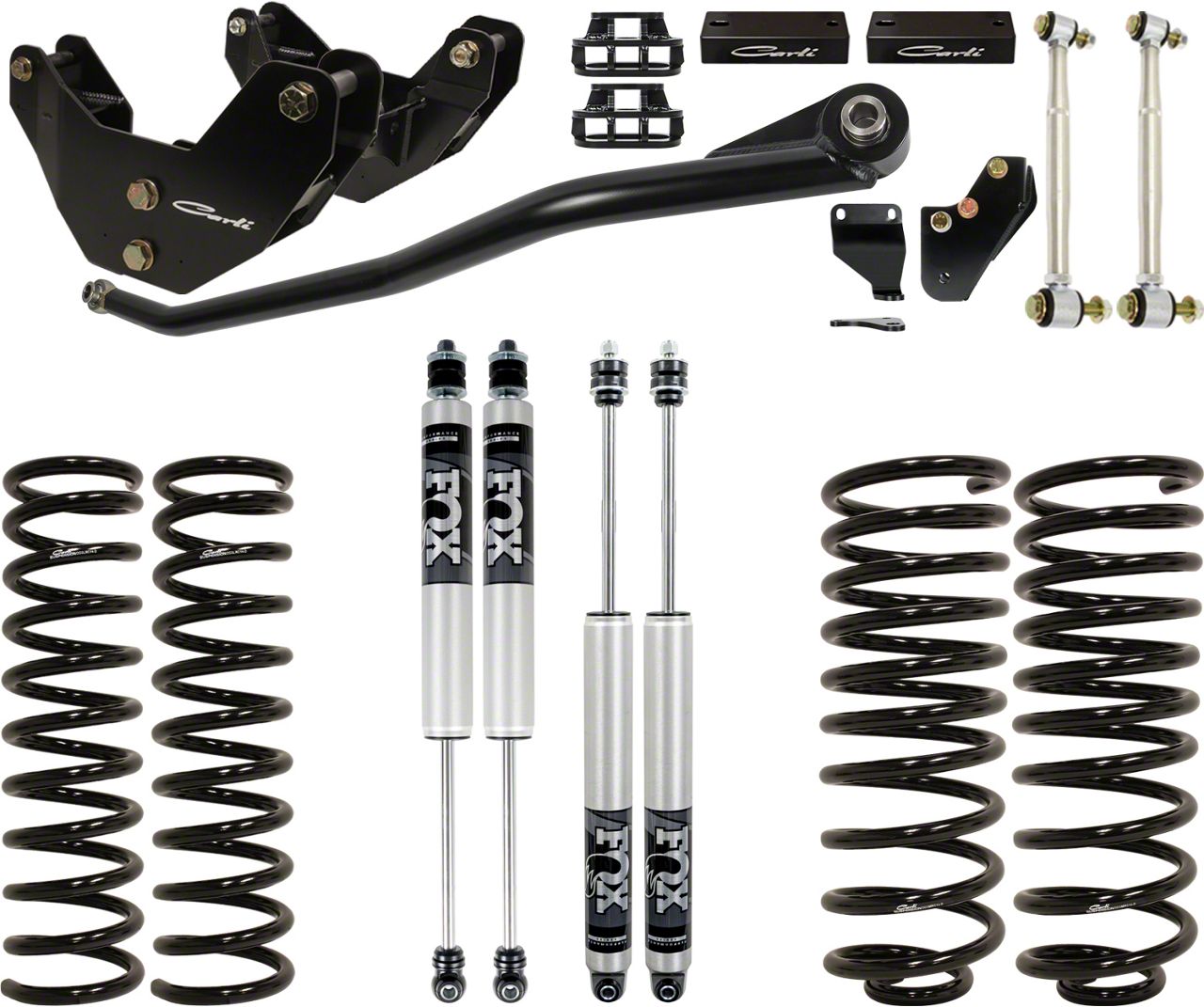

Carli Suspension 2-Inch Commuter Lift System with R1 Coil Springs and FOX 2.0 IFP Shocks (19-24 RAM 2500 Power Wagon)
Verify parts fit and get product recommendations.
Ram 2500 Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Want $10? Write one of the first 5 reviews 5.0 Carli Suspension Suspension product ratings
Our Price

$3,950.00

Out of Stock

Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

      Product Information

      Description, Q&A

      Features & Specs

      Description


      The Commuter 2.0 system is designed for people seeking the best on-road ride quality on a budget. Utilizing front and rear Fox 2.0” internal reservoir shocks, we’ve spent a significant amount of time developing a Carli Signature shock tune that delivers all around comfort and ride quality designed for on-road, in town, highway, and towing/hauling for the Power Wagon Platform. These shocks are fantastic for the low-speed off-road for which Power Wagons are known. The Fox 2.0s are fully rebuildable, built with hour-glass bushings and boast extruded aluminum construction with a clear anodizing for corrosion resistance. Fox builds these shocks with their legendary red shock oil that flows well down to -55° F.

      The Details: Your truck will sit 1” higher in the front (cab configuration dependent) with a touch more suspension travel than the factory platform thanks to the taller, lighter rate coil springs. The rear Carli Coil Springs will drop by ½”-1” to level the truck while upping the rear suspension capacity to a respectable 2,000lbs.

      The Factory Sway Bar Disconnect with which the Power Wagons are equipped works great for those wanting the two ends of the spectrum, rigid or flexy. For those wanting to land in the middle of the spectrum between these two end points, Carli’s optional Torsion sway bar removes the entire factory sway bar assembly replacing it with a torsion bar supported by fabricated drop brackets and delrin bushings. Fabricated sway bar arms and dual 5/8” FK heim end links round off the package. This is the single best bang for the buck, ride-quality upgrade offered by Carli Suspension when compared to the locked, factory sway bar. The Carli Sway Bar allows nearly bind-free articulation in low-speed applications; when things heat up, it allows the Carli Shocks and springs to breath while engaging progressively to provide control in high-speed cornering situations.

      The additional inch of front lift and off-road oriented application call for a better track bar to handle the new-found increased off-road abilities. This system includes an Adjustable Track Bar to recenter the axle and provide a stronger link with less deflection for the lifted application. Also included are Carli’s Radius Arm Drop Brackets to drop the pivot point of the dual pivot Power Wagon arms, alleviate diagonal spring pressures (ensure no bow in the coil springs) and allow full adjustment of the factory caster bolt.

      Everything is included to support flawless operation of all components. Extended rear Sway Bar End Links, Front and Rear Bump stop drops to ensure the shocks are cycling in their designed travel range as well as a rear track bar drop bracket minimizing the rear end “wag” associated with opposing track bar suspension designs are all included to round off this suspension system..

      Wheel and Tire: This system will fit up to a 37” tire when utilizing wheels that are no more than 9” wide with 5.75-6” of backspacing. A 12.5” wide should fit with no rubbing on the factory radius arm and only minor trimming required, while a 13.5” will require more trimming and slightly more offset to fit properly. 35” tires will fit with VERY minimal, if any trimming. We Recommend running a 17”/18” diameter wheel for optimal ride quality (more rubber = better small bump compliance) on a 35”-37” E-rated tire running 45psi front, 40psi rear when unloaded. For more details, see our article on wheel and tire selection and tire pressures:

      Tires and Wheels: How Do They Affect My Ride?

      Fitment:

      Details

      Carli Suspension CS-DC20-19-PW

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      5.0

      Reviews of Carli Suspension Suspension Products (3)

      Brand Image

      Reviews of Carli Suspension Suspension products have an average rating of 5.0 out of 5

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Ram 2500

      • 6.4L V8 - 19, 20, 21, 22, 23, 24
