Carli Suspension Adjustable Radius Arms for 4.50 to 5.50-Inch Lift (11-24 4WD F-350 Super Duty)Find parts that fit my vehicle

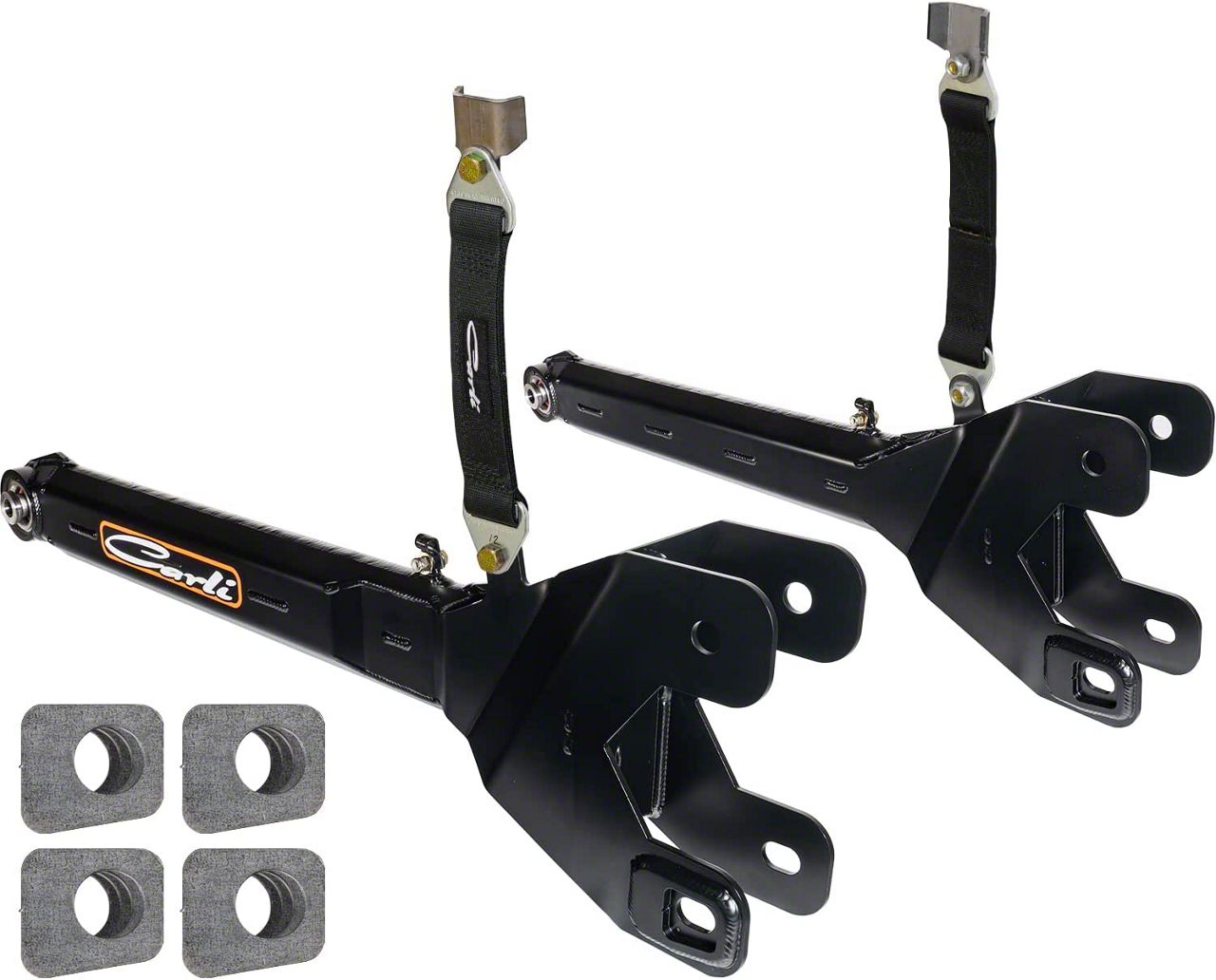

Description. Delivering top-tier ride quality starts with top tier parts and our Fabricated Radius Arms for your 2005 Ford Super Duty should be the starting point for your custom suspension. Conceived through CAD-assisted engineering, the heart of the Ford Radius Arms is an internal network of X-Braces and gussets that lock all facets into one cohesive monolith. Incorporated into the arms are a formed channel that relieves tire rub on the Radius Arm, making room for even the most advanced and aggressive off-road tires and deep-offset aftermarket wheels. Also featured are fully serviceable 3? Spherical Bearings that eliminate the kinetic energy issues associated with vulcanized bushings. Your factory ABS harness is kept out of harm’s way thanks to an included clamp, while your shocks are saved from top-out damage by our Quad-Wrap Limit Straps. Easily bolted on, the Fabricated Radius Arms replace your factory arm while using factory mounts and brackets. 4.5? Lifts will require the Carli Radius Arm Drops, sold separately.

The Carli arms correct 1.25° of caster at the axle, effectively rolling the axle position back to factory specification on the 2.5” lift. On a 4.5, 1.25° of Caster is added to the existing specification. This may negate the need for the corrective caster shims included in the Carli Suspension Base-Kits. We recommend installing the arms and reading the alignment to check if the shims are necessary to install or not. Recommended Caster: 4°

Fitment:

• 2011 Ford F-350
• 2012 Ford F-350
• 2013 Ford F-350
• 2014 Ford F-350
• 2015 Ford F-350
• 2016 Ford F-350
• 2017 Ford F-350
• 2018 Ford F-350
• 2019 Ford F-350
• 2020 Ford F-350
• 2021 Ford F-350
• 2022 Ford F-350
• 2023 Ford F-350
• 2024 Ford F-350
