Find 6 Inch to 8 Inch Lift Kits for your Sierra 3500

BDS 6.50-Inch High Clearance Suspension Lift Kit with FOX 2.0 Performance Shocks (20-25 4WD Sierra 3500 HD w/ Factory Overload Springs)Find parts that fit my vehicle

Item SHG16486
Product Image
Verify parts fit and get product recommendations.
Sierra 3500 Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
Call now 1-888-706-1096 Chat Now
$0.00
17 Reviews
Our Price

$3,031.45 kit

Out of Stock

Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Loading Indicator

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • High Clearance Suspension Lift Kit
      • High Clearance Design
      • Raises up to 6.5 Inches
      • No Torsion Bar Drop
      • Maximizes Ground Clearance
      • Robust Steering Knuckles Maintain ESC System Compliance
      • Multi Piece Differential Relocation Brackets
      • HD Skid Plates for Improved Off-Road Protection
      • Professional Installation Recommended
      • Fits 2020-2025 4WD Sierra 3500 HD DRW w/ Factory Overload Springs

      Description

      High Clearance Suspension Lift Kit. Add more height to your Sierra and improve its performance and overall driving feel with this BDS 6.50-Inch High Clearance Suspension Lift Kit with Fox Shocks. At the core of this Lift Kit is a pair of 1/4-Inch thick laser cut high clearance crossmembers to maximize clearance and provide a solid mounting point for the OE lower control arms. These paired with the heavy duty front skid plate create a rigid subframe while adding protection for vital steering and driveline components.

      Improved Clearance and Angles. Additionally, a pair of specially designed ductile iron replacement steering knuckles take the place of the factory steering knuckles and are used to maintain proper steering geometry for ESC system compatibility. The front differential is repositioned with BDS's multipoint relocation bracket system to secure the front differential and keep the CV axle angles at a minimum. To help maximize clearance, a pair of torsion bar relocations brackets mount to the lower control arms to retain the factory high clearance frame mounted crossmember, while a pair of BDS-branded sway bar drop brackets correct the operating angle of the factory sway bar along with the extended length braided stainless steel brake lines.

      High-Performance Shocks. Topping this fine addition to your rig, are a pair of specially tuned FOX 2.0 performance series IFP shocks that are ready for smooth cruising or rough terrain.

      Installation. For the safety of your hardware during removal and replacement, professional installation is recommended.

      Application. The BDS 6.50-Inch High Clearance Suspension Lift Kit with Fox Shocks fits 2020-2025 4WD Sierra 3500 HD DRW w/ Factory Overload Springs.

      Fitment:

      Details

      BDS BDS756FS

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

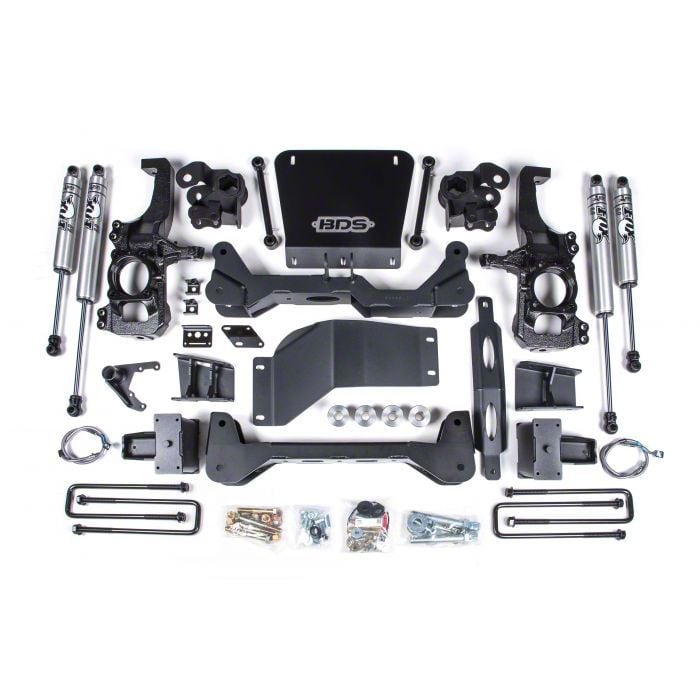

      What's in the Box

      • (1) Rear Cross Member
      • (1) Differential Bracket - Drv
      • (1) Differential Bracket - Center
      • (1) Differential Bracket - Pass
      • (1) Differential Skid Plate
      • (1) Thread locker
      • (1) Sleeve - Center Diff Bracket
      • (2) Bushing - Center Diff Bracket
      • (3) Cable Tie
      • (1) Bolt Pack - Lower Control Arms
      • (1) Bolt Pack - Differential Drop
      4.5

      Customer Reviews (17)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Sierra 3500

      • 6.6L V8 - 20, 21, 22, 23, 24, 25
      • 6.6L V8 Duramax - 20, 21, 22, 23, 24, 25
