Installation Time
(approx) 3 Hours
Difficulty Level:
Light to Moderate mechanical skill required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $119+ Details
Talk to a Sierra 2500 Sales Tech
1-888-706-1096
M-F 8:30A-11P, Sat-Sun 8:30A-9P
BDS 6.50-Inch High Clearance Suspension Lift Kit with FOX 2.0 Performance Shocks (20-25 4WD Sierra 2500 HD w/ Factory Overload Springs)
Item HG51683
$0.00
1 Reviews
Our Price
$3,071.45 kit
Out of Stock
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- High Clearance Suspension Lift Kit
- High Clearance Design
- Raises up to 6.50-Inches
- No Torsion Bar Drop
- Maximizes Ground Clearance
- Robust Steering Knuckles Maintain ESC System Compliance
- Multi Piece Differential Relocation Brackets
- HD Skid Plates for Improved Off-Road Protection
- Professional Installation Recommended
- Fits 2020-2025 4WD Sierra 2500 HD Models with Factory Overload Springs
| Brand | BDS |
| Lift Height | 6.50 Inch |
| Lift Kit Type | Spacer Lift |
| Lift Kit Max Tire Size | 38 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
High Clearance Suspension Lift Kit. Add more height to your Sierra and improve its performance and overall driving feel with this BDS 6.50-Inch High Clearance Suspension Lift Kit with Fox Shocks. At the core of this Lift Kit is a pair of 1/4-Inch thick laser cut high clearance crossmembers to maximize clearance and provide a solid mounting point for the OE lower control arms. These paired with the heavy duty front skid plate create a rigid subframe while adding protection for vital steering and driveline components.
Improved Clearance and Angles. Additionally, a pair of specially designed ductile iron replacement steering knuckles take the place of the factory steering knuckles and are used to maintain proper steering geometry for ESC system compatibility. The front differential is repositioned with BDS's multipoint relocation bracket system to secure the front differential and keep the CV axle angles at a minimum. To help maximize clearance, a pair of torsion bar relocations brackets mount to the lower control arms to retain the factory high clearance frame mounted crossmember, while a pair of BDS-branded sway bar drop brackets correct the operating angle of the factory sway bar along with the extended length braided stainless steel brake lines.
High-Performance Shocks. Topping this fine addition to your rig, are a pair of specially tuned FOX 2.0 performance series IFP shocks that are ready for smooth cruising or rough terrain.
Installation. For the safety of your hardware during removal and replacement, professional installation is recommended.
Application. The BDS 6.50-Inch High Clearance Suspension Lift Kit with Fox Shocks fits 2020-2025 4WD Sierra 2500 HD models with Factory Overload Springs.
Fitment:
- 2020 GMC Sierra 2500
- 2021 GMC Sierra 2500
- 2022 GMC Sierra 2500
- 2023 GMC Sierra 2500
- 2024 GMC Sierra 2500
- 2025 GMC Sierra 2500
BDS BDS756FS
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

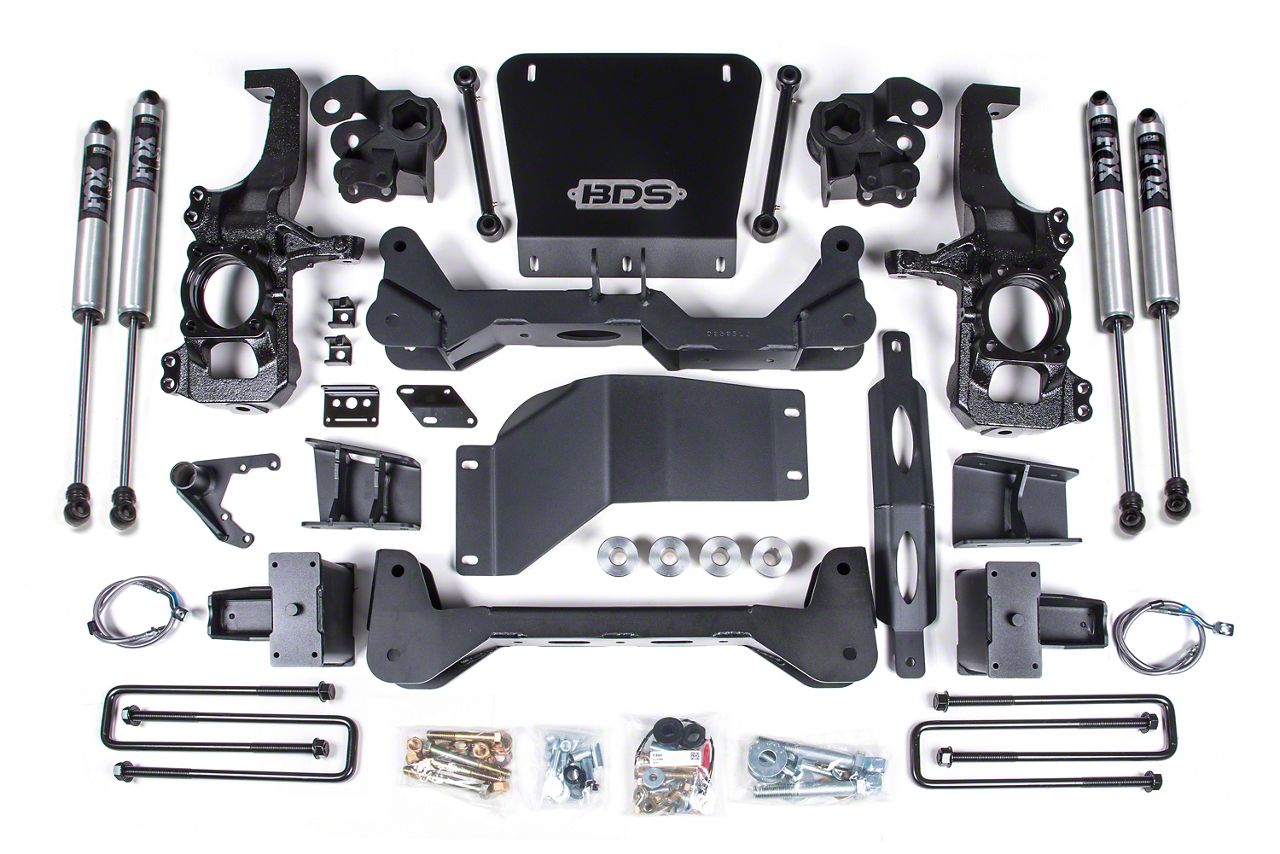

What's in the Box
- (1) Rear Cross Member
- (1) Differential Bracket - Drv
- (1) Differential Bracket - Center
- (1) Differential Bracket - Pass
- (1) Differential Skid Plate
- (1) Thread locker
- (1) Sleeve - Center Diff Bracket
- (2) Bushing - Center Diff Bracket
- (3) Cable Tie
- (1) Bolt Pack - Lower Control Arms
- (1) Bolt Pack - Differential Drop
3.0
Customer Reviews (1)
Reviews of BDS Suspension products have an average rating of 4.2 out of 5
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Sierra 2500
- 6.6L V8 - 20, 21, 22, 23, 24, 25
- 6.6L V8 Duramax - 20, 21, 22, 23, 24, 25
