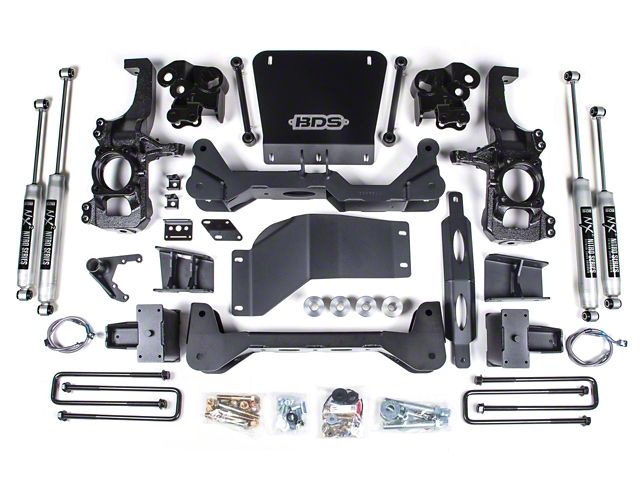

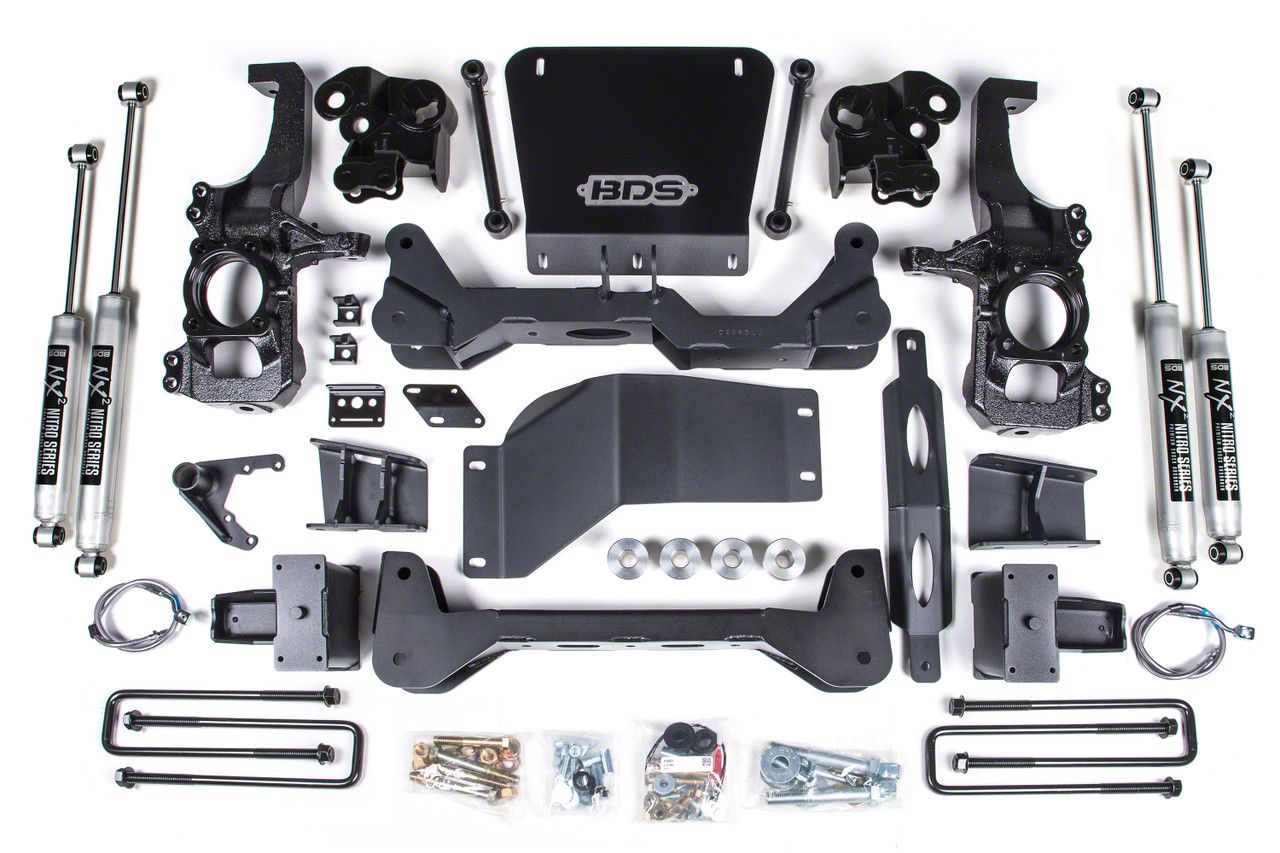

BDS 5-Inch High Clearance Suspension Lift Kit with NX2 Nitro Shocks (20-25 Sierra 2500 HD w/ Overload Springs)Find parts that fit my vehicle

Description. BDS767H will take your 2020-2023 Chevy Silverado and GMC Sierra 2500 HD 4WD to the next level by installing this 5-inch lift kit by BDS Suspension. For maximum ground clearance BDS designed a No Torsion Bar Drop System where the torsion bars are mounted directly to the top of the lower a-arm eliminating the need to drop the torsion bar cross-member. Designed to improve the stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes torsion bar relocation brackets high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops stainless steel brake lines supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear BDS offers replacement lift blocks and u-bolts to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also included BDS supplies brake line and ABS line relocation brackets allow the use of factory brake lines. Lastly are a matching set of NX2 Nitro or FOX 2.0 Performance Series shocks.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function.

Features-

Tapered and roll-pointed leafs add flexibility and provide an even deflection rate

Increased wheel travel and a softer ride from tapering allow smoother transition between leafs as compression takes place

Higher articulation from bolt-style leaf alignment clamps prevents leafs from fanning out allowing leafs to twist and flex

Multi-leaf progressive design for smooth ride

Anti-friction pads provide a smooth and quiet ride

Details-

Front Lift Height: 5 IN

Front Lift Method: Cross Member

Installation Difficulty: difficult

Installation Time: 8-10 Hrs

Installation Tools: cut off wheel or equiv-saw reciprocating-torsionBar unloadingTool

Rear Lift Height: 5 IN

Rear Lift Method: Block

Rear Lift Option: 5 Inch Block Kit With Overload

Shocks Included: Yes

Fitment:

• 2020 GMC Sierra 2500
• 2021 GMC Sierra 2500
• 2022 GMC Sierra 2500
• 2023 GMC Sierra 2500
• 2024 GMC Sierra 2500
• 2025 GMC Sierra 2500
