Banks Power SpeedBrake Exhaust Braking System with iDash SuperGauge (07-10 6.6L Sierra 3500 HD)Find parts that fit my vehicle

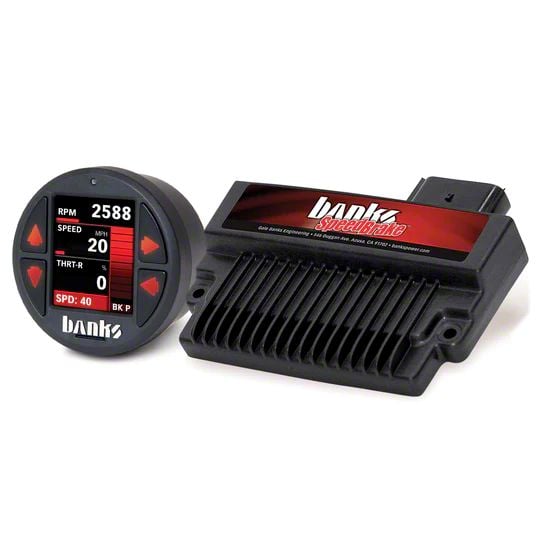

The World's First All-Electronic Braking System. Cuts downhill speed up to 78 percent. All automatic, user selectable speed. Simple plug-n-play installation, no cutting or welding required. Extends the service life of your brakes, and does so while maintaining your sanity.

US Patent # 6,652,414 B1, # 7,593,808 B2 & # 7,254,477 B1
50 State Compliant
CARB E.O. D-161-91
Fitment Note
Not compatible with Edge or other third-party OBD monitors.

Key Features
All automatic user-selectable downhill cruise control.
Cuts downhill speed up to 78 Percent.
Includes Banks iDash DataMonster or SuperGauge.
Specifications
The World's First All-Electronic Braking System. A revolutionary approach to exhaust braking, Banks patented new SpeedBrake does what no brake has done before. The world's first all-electronic braking system, SpeedBrake achieves maximum braking power by intelligently modulating systems already found on the truck. SpeedBrake manipulates the variable geometry turbine vanes in concert with deliberate gear selection and torque converter clutch application to deliver not just total hill-taming stopping power but also peace of mind. Hands (and feet) free, and totally automatic, SpeedBrake lets you set your desired downhill speed and it does all the rest.

The Banks SpeedBrake must be used with a Banks iDash (included). If you do not want to use the Banks iDash then check out our Banks Brake P/N 55447. More effective braking than is possible with a simple valve assembly. Operating modes On (Maximum braking: High, Med and Low strength settings). Speed Control (Maintains pre-selected target speed. Easy gauge based control). Displays vehicle speed, current braking effort (relating to vane position), trans temp, engine coolant temp and much more. OBDII scan tool capability (reads/interprets/clears codes). System Status Indicator with on-screen alerts (excessive coolant or trans temps, for example). Easy, clean install (all-electronic design requires only a few simple underhood connections), no modifications to the exhaust system are needed. In testing, dramatically outperformed all competitive products in basic braking function (and nobody but Banks has anything like a Speed Control Mode!)

Fitment:

• 2007 GMC Sierra 3500
• 2008 GMC Sierra 3500
• 2009 GMC Sierra 3500
• 2010 GMC Sierra 3500
