Find 3 Inch to 5 Inch Lift Kits for your Sierra 1500
Zone Offroad 4.50-Inch Suspension Lift Kit with Shocks (14-17 2WD Sierra 1500)Find parts that fit my vehicle
Item S502037-D
Sierra 1500 Sales Techs:
Connect Now
M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
51 Reviews
Our Price
$1,004.95
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Solid Cast Iron Blocks for a Rear Lift
- No Need to Take Apart the Factory Strut
- Boxed One-Piece Crossmembers with Support Strut
- CNC Machined Steering Knuckles
- Choice of Hydro or Nitro Rear Shocks
- Compatible with Stabilitrak System
- Limited Lifetime Warranty
- Fits 2014-2017 GMC Sierra 1500 2WD
| Brand | Zone Offroad |
| Lift Height | 4.50 Inch |
| Lift Kit Type | Suspension Lift |
| Lift Kit Max Tire Size | 33 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Get a Solid Lift on Your Stock 2WD Pickup. This Zone Offroad Suspension Lift Kit with Shocks for your 2014-2017 2WD GMC Sierra provides a 4.5-inch lift in the front with a spacer and a 4-inch lift in the rear with a solid cast iron block kit.
Clean Driving Angles and Sleek Look. The lift works with your truck's Stabilitrak System. Zone includes fully boxed crossmembers and solid iron steering knuckles for a durable frame and solid off-road support. They also correct the steering angles so you can install up to 20-inch tires and increases ground clearance.
Hydro or Nitro Shocks. Zone Offroad offers this suspension lift kit with a choice of Hydro or Nitro Shocks. The Hydro Shocks features a twin tube hydraulic design with a progressive 10 stage velocity sensitive valving that provides an increase in the fluid capacity, while cutting down the internal temperatures to ensure a smooth and comfortable ride on and off road. The Nitro Shocks are also a twin tube design, but it is charged by nitrogen gas with a 10 stage velocity sensitive full displaced valving to provide a better valving range when compressing and extending during travel to give your Sierra a more responsive feel and control on and off road.
Installation. Installation does not require you to disassemble the factory strut. When you install the Zone Offroad 4.5-Inch Suspension Lift Kit with Shocks, you cannot put your 17s or 18s back on because of the tie rod. It is suggested that you use a 20-inch tire with a backspace that measures 5.75 inches. This avoids trimming to get the wheel to fit.
Application. The Zone Offroad 4.5 in. Suspension Lift Kit with Shocks fits 2014 to 2017 2WD GMC Sierra 1500 pickups. The kit does not fit the 4WD models. Please select which shock option you prefer and your proper factory control arms from the ordering options above.
Clean Driving Angles and Sleek Look. The lift works with your truck's Stabilitrak System. Zone includes fully boxed crossmembers and solid iron steering knuckles for a durable frame and solid off-road support. They also correct the steering angles so you can install up to 20-inch tires and increases ground clearance.
Hydro or Nitro Shocks. Zone Offroad offers this suspension lift kit with a choice of Hydro or Nitro Shocks. The Hydro Shocks features a twin tube hydraulic design with a progressive 10 stage velocity sensitive valving that provides an increase in the fluid capacity, while cutting down the internal temperatures to ensure a smooth and comfortable ride on and off road. The Nitro Shocks are also a twin tube design, but it is charged by nitrogen gas with a 10 stage velocity sensitive full displaced valving to provide a better valving range when compressing and extending during travel to give your Sierra a more responsive feel and control on and off road.
Installation. Installation does not require you to disassemble the factory strut. When you install the Zone Offroad 4.5-Inch Suspension Lift Kit with Shocks, you cannot put your 17s or 18s back on because of the tie rod. It is suggested that you use a 20-inch tire with a backspace that measures 5.75 inches. This avoids trimming to get the wheel to fit.
Application. The Zone Offroad 4.5 in. Suspension Lift Kit with Shocks fits 2014 to 2017 2WD GMC Sierra 1500 pickups. The kit does not fit the 4WD models. Please select which shock option you prefer and your proper factory control arms from the ordering options above.
Shop All 3 to 5 Inch Truck Lift Kits
Shop All Truck Parts And Accessories
Shop All Truck Lift Kits
Fitment:
DetailsZone Offroad C35N
C36N
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

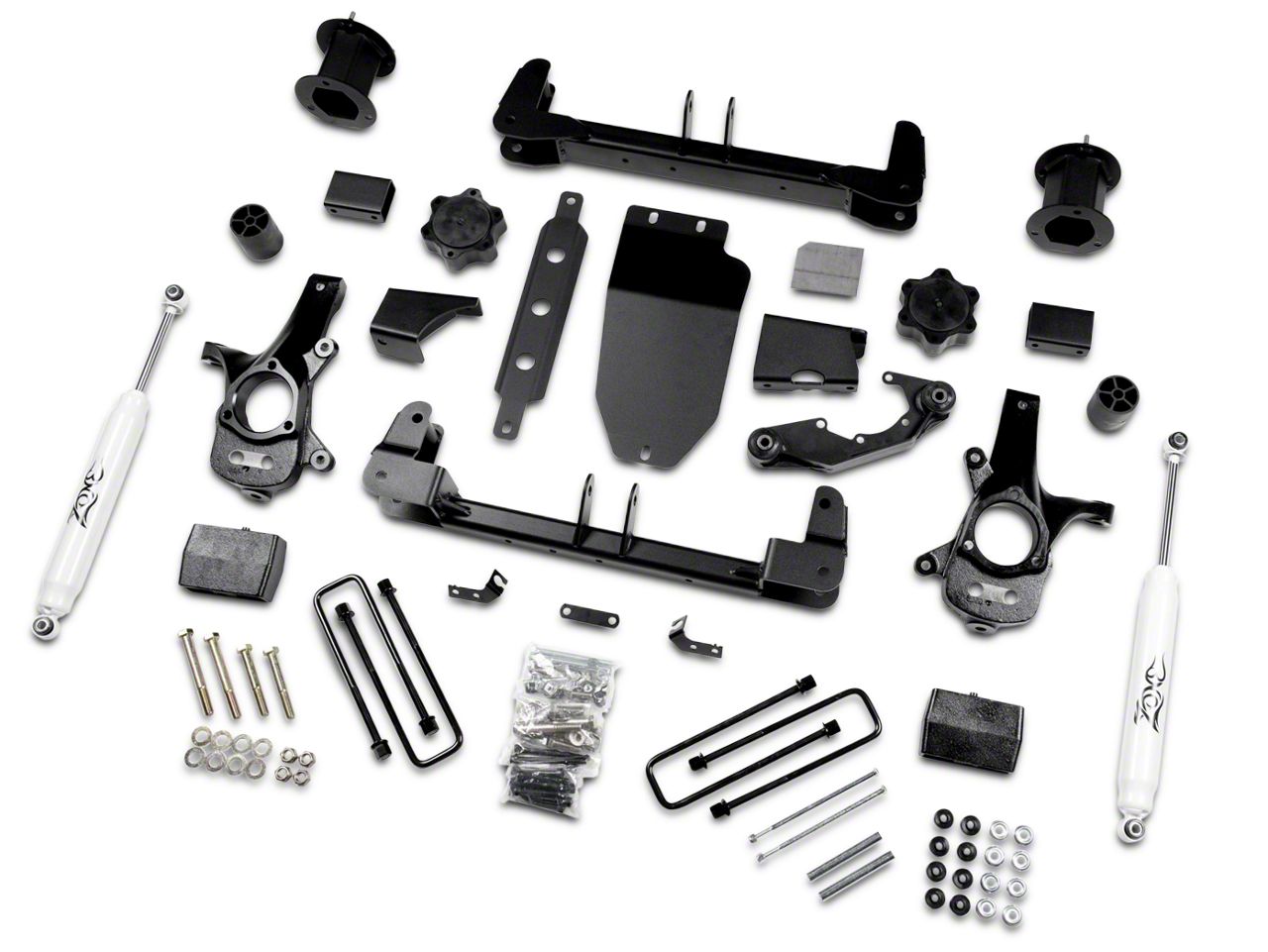

What's in the Box
- (2) Full Boxed Crossmembers
- (2) Iron Steering Knuckles
- (2) Hydro or (2) Nitro Shocks
- (2) 4-Inch Rear Block Lifts
- (2) Weld-In Control Arm Pocket Plate
- Bolt-On Strut Spacers
- Brake Line Brackets
- U-Bolt Systems
- Bolt Packs and Hardware
Tech Guides:
4.7
Customer Reviews (51)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Sierra 1500
- 4.3L V6 - 14, 15, 16, 17
- 5.3L V8 - 14, 15, 16, 17
- 6.2L V8 - 14, 15, 16, 17
