Find 6 Inch to 8 Inch Lift Kits for your Sierra 1500
Zone Offroad 6.50-Inch Suspension Lift Kit with Nitro Shocks (14-18 2WD Sierra 1500 w/ Stock Cast Steel Control Arms, Excluding Denali)Find parts that fit my vehicle
Item S523527
Sierra 1500 Sales Techs:
Connect Now
M-F 8:30A-11P, Sat-Sun 8:30A-9P
$844.02
51 Reviews
On Sale
-10% $844.02 kit Was $937.80
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- 6.50-Inch Suspension Lift Kit
- Increases Ground Clearance for Improved Off-Roading
- Nitro Shocks
- Heavy-Duty Crossmembers
- Equally Heavy-Duty Differential Skid Plate
- Ductile Iron Steering Knuckles
- Brake Line Brackets
- Bump Stop Relocation Brackets
- Sway Bar Relocation
- Top-Mounted Strut Spacers
- Five-Inch Tapered Rear Block Kit
- Allows for 35-Inch Tires
- Factory 17- and 18-Inch Wheels Cannot be Reinstalled Due to Tie Rod End Interference
- Challenging Installation
- Limited Lifetime Warranty
- Fits 2014-2018 2WD Sierra 1500 Models with Stock Cast Steel Control Arms, Excluding the Denali
| Brand | Zone Offroad |
| Lift Height | 6.50 Inch |
| Lift Kit Type | Suspension Lift |
| Lift Kit Max Tire Size | 35 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Off-Road Ready. This Zone Offroad 6.50-Inch Suspension Lift Kit with Nitro Shocks will give your Sierra the ability to tackle any trail. Not only that, but this Lift Kit will allow you to mount 35-inch tires giving your truck a rugged off-road appearance. Whether you’re a serious off-roader, want to mount larger tires and wheels, or are just looking to give your rig a more beefed-up appearance, this is the kit for you.
Solid, High Quality Product. This Zone Offroad Suspension System includes a pair of fully boxed heavy duty cross-members and ductile iron steering knuckles engineered to work with the redesigned steering. Also included are bump stop relocation brackets, heavy-duty differential skid plate, brake line brackets, sway bar relocation, a pair of top-mounted strut spacers and a 5-inch rear tapered block kit to level the stance.
Nitro Shocks. A set of Nitro shocks do a phenomenal job of absorbing impact from your travels.
Installation. Professional installation is recommended. It should be noted that cutting and drilling is required for installation. With all the necessary hardware included, this Lift kit can be installed in about 8-10 hours time.
Wheel and Tire Notes. Certainly, you can clear 35-inch tires with this lift kit, but factory 17- and 18-inch wheels can not be reinstalled due to tie rod end interference. Use a quarter-inch wheel spacer for factory 20-inch wheels.
Warranty. Zone Offroad offers a limited lifetime warranty with this product.
Application. This Zone Offroad 6.50-Inch Suspension Lift Kit with Nitro Shocks fits 2014-2018 2WD Sierra 1500s with Stock Cast Steel Control Arms, excluding the Denali.
Solid, High Quality Product. This Zone Offroad Suspension System includes a pair of fully boxed heavy duty cross-members and ductile iron steering knuckles engineered to work with the redesigned steering. Also included are bump stop relocation brackets, heavy-duty differential skid plate, brake line brackets, sway bar relocation, a pair of top-mounted strut spacers and a 5-inch rear tapered block kit to level the stance.
Nitro Shocks. A set of Nitro shocks do a phenomenal job of absorbing impact from your travels.
Installation. Professional installation is recommended. It should be noted that cutting and drilling is required for installation. With all the necessary hardware included, this Lift kit can be installed in about 8-10 hours time.
Wheel and Tire Notes. Certainly, you can clear 35-inch tires with this lift kit, but factory 17- and 18-inch wheels can not be reinstalled due to tie rod end interference. Use a quarter-inch wheel spacer for factory 20-inch wheels.
Warranty. Zone Offroad offers a limited lifetime warranty with this product.
Application. This Zone Offroad 6.50-Inch Suspension Lift Kit with Nitro Shocks fits 2014-2018 2WD Sierra 1500s with Stock Cast Steel Control Arms, excluding the Denali.
Fitment:
- 2014 GMC Sierra 1500
- 2015 GMC Sierra 1500
- 2016 GMC Sierra 1500
- 2017 GMC Sierra 1500
- 2018 GMC Sierra 1500
Zone Offroad ZONC33N
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

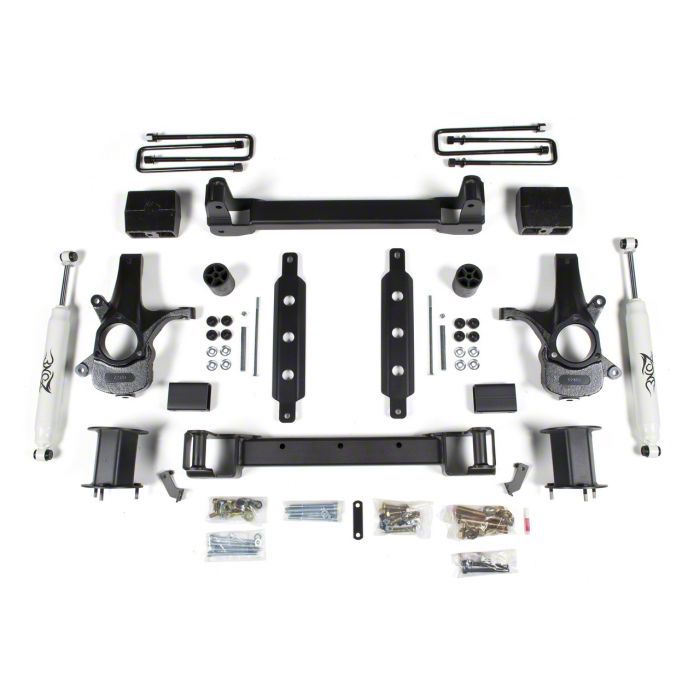

Installation & What's in the Box
Installation Info
What's in the Box
- Crossmembers
- Bump Stop Relocation Brackets
- Differential Drop Brackets
- Rear Lift Block and U-Bolt Kit
- Skid Plate
- Steering Knuckles
- Strut Spacers
- Shocks
- Installation Hardware
4.7
Customer Reviews (51)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Sierra 1500
- 4.3L V6 - 14, 15, 16, 17, 18
- 5.3L V8 - 14, 15, 16, 17, 18
- 6.2L V8 - 14, 15, 16, 17, 18
