Find Big Brake Kits for your Sierra 1500

Wilwood AERO4 Rear Big Brake Kit with Slotted Rotors; Black Calipers (99-18 Sierra 1500)Find parts that fit my vehicle

Item S510379
Verify parts fit and get product recommendations.
Sierra 1500 Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Want $10? Write one of the first 5 reviews 4.8 Wilwood Brakes product ratings
Our Price

$2,286.24 kit

Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

      • Provides Enhanced Braking Performance
      • Ideal for Street and Track Use
      • Comes With AERO4 4-Piston Calipers
      • Calipers Built From High-Grade Aluminum
      • Features a Black Powder-Coated Finish
      • Uses Slotted GT 72 Curved Vane Rotors
      • Manufactured From Iron Alloy
      • Includes BP-20 Smartpad Compound Brake Pads
      • Engineered to Produce Less Dust
      • No-Drill Installation
      • Rear Brake Kit
      • Fits All 1999-2018 GMC Sierra 1500 Models

      Description

      Enhanced Braking Power. If you feel that your Sierra’s factory brakes are not doing a good job, then it’s time to replace them with this Black Wilwood AERO4 Rear Big Brake Kit with Slotted Rotors. Designed for high-performance street and track use, this rear big brake kit comes with high-quality calipers, rotors, and brake pads designed to provide you with the stopping power you need to immediately put your Sierra to a grinding halt.

      AERO4 Calipers. Wilwood’s rear big brake kit uses AERO4 calipers manufactured using premium-grade aluminum billet to ensure strength and durability. These calipers come with stainless steel pistons and internal fluid ports designed to eliminate the center bride assembly and external fluid cross-over tubes. In addition, these calipers are coated with a black powder finish to protect them against rust and corrosion.

      Slotted GT 72 Curved Vane Rotors. This Wilwood AERO4 Rear Big Brake Kit features slotted GT 72 curved vane rotors built from a proprietary iron alloy engineered to withstand extreme temperatures. Using a slotted design and individual dynamic balancing technology, these rotors will ensure the smoothest and most responsive braking capabilities. To protect these rotors from corrosion, Wilwood coats each one with a black E-coat finish.

      Smartpad BP-20 Brake Pads. Wilwood uses Smartpad BP-20 brake pads designed for minimal wear even at high braking temperatures. These brake pads provide smooth engagement and the torque curve increases relative to the temperature. The superior performance of these Smartpad BP-20 brake pads makes them perfect for everyday use as well as hobby and sportsman asphalt racing applications.

      No-Drill Installation. Installing this Wilwood AERO4 Rear Big Brake Kit does not require any drilling to be done. The installation process can be completed with the help of simple hand tools.

      Rear Brake Kit. This Wilwood AERO4 Rear Big Brake Kit comes with AERO4 calipers, BP-20 brake pads, and slotted GT 72 curved vane rotors.

      Brake Line Kit Needed. Wilwood calipers are not compatible with your Sierra’s factory brake lines. Only a brake line kit from Wilwood will work with this rear brake kit.

      Application. This Black Wilwood AERO4 Rear Big Brake Kit with Slotted Rotors will fit all 1999-2018 GMC Sierra 1500 models.

      Application Note. This Wilwood AERO4 Rear Big Brake Kit requires a minimum wheel diameter of 18 inches.

      Shop All Truck Parts And Accessories

      Shop All Truck Big Brake Kits

      Shop All Truck Brakes

      Fitment:

      Wilwood 140-9407

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

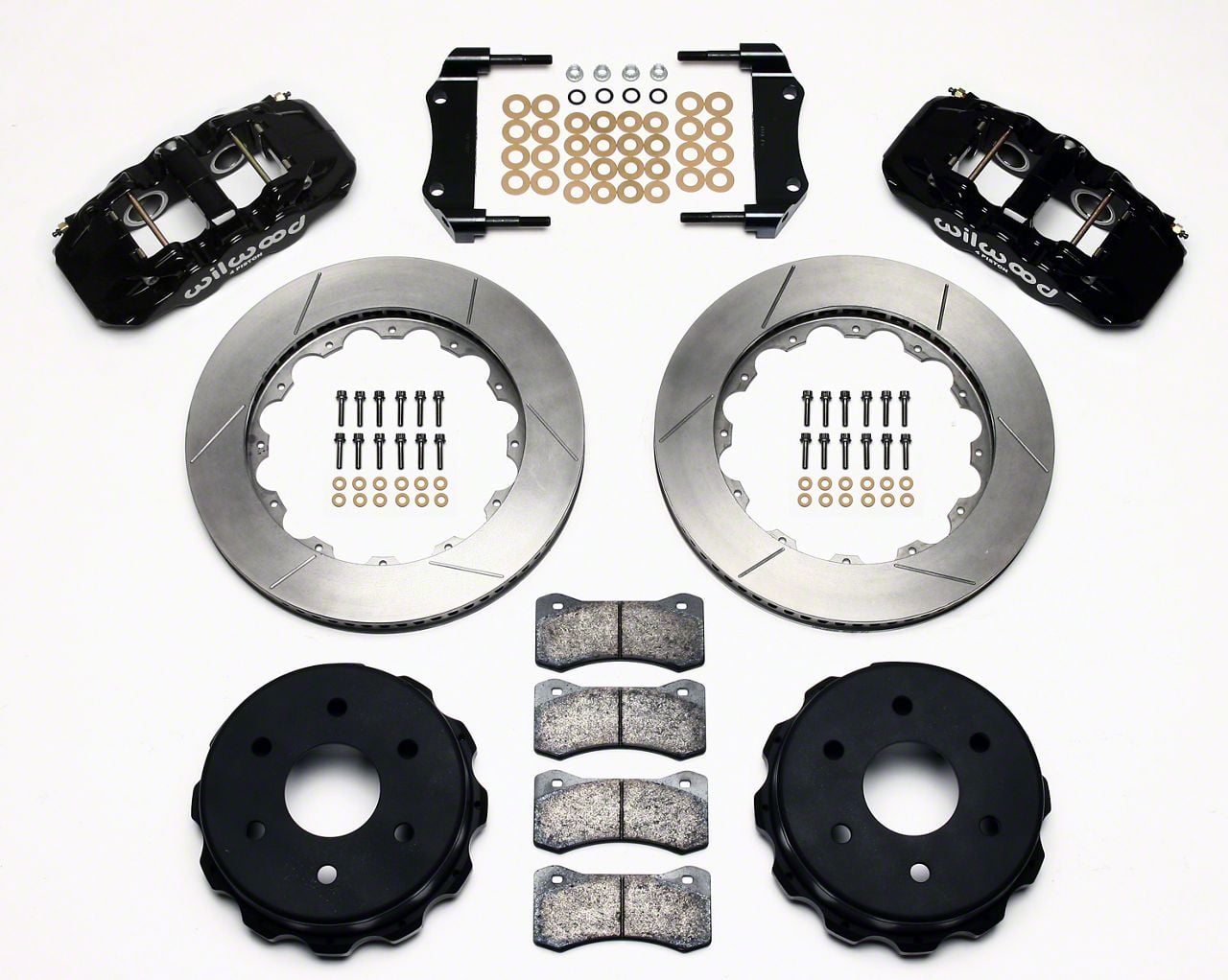

      What's in the Box

      • (1) Driver Side Rear Rotor
      • (1) Passenger Side Rear Rotor
      • (1) Driver Side Rear Caliper
      • (1) Passenger Side Rear Caliper
      • (2) Caliper Mounting Brackets
      • (1) Pad, BP-20 Compound, Axle Set
      • (16) 0.029-Inch Thick Shims
      • (16) 0.016-Inch Thick Shims
      • (2) 6 x 5.50-Inch Hats, 2.26-Inch Offset, 12 x 9.18-Inch Bolt Circle
      • (24) 0.265 ID x 0.500 OD x 0.63-Inch Washers
      • (24) 0.25-28 x 0.75 Long, 12 Point Bolts
      • (4) 0.437-20, Self-Locking, 12 Point Nuts
      • (4) 0.453 ID x 0.750 OD x 0.63-Inch Washers
      • (4) 0.437-14 x 0.437-20 x 2.875 Long Studs
