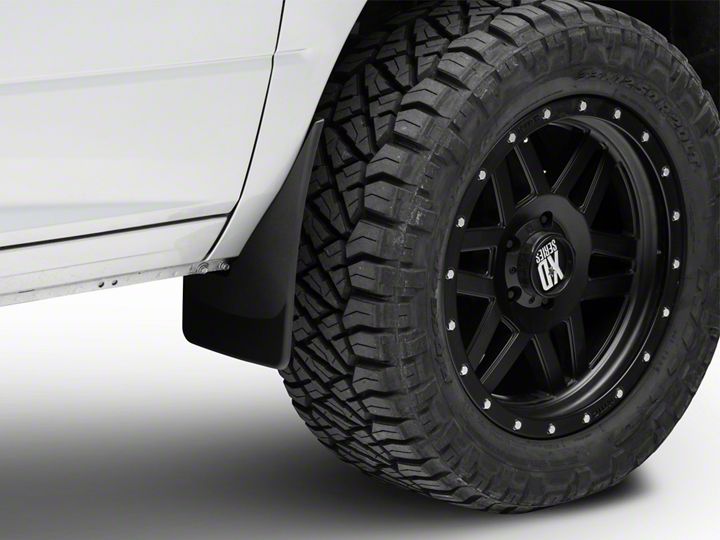

How to Install Weathertech No Drill Front MudFlaps - Black on your Dodge Ram

Parts Kit (CC)
(1) T20 Torx Bit
(2) Spacers

WARNING

The MudFlap is designed to fit vehicles with standard size wheels and tires. Installation of MudFlaps on ve­hicles with aftermarket wheels or oversize tires may interfere with the MudFlap, will void the warranty and may damage the MudFlap or the vehicle. ​

1. Start by thoroughly washing your vehicle. Take care to remove all dirt, debris, and stains from each fender in the areas corresponding to where the MudFlaps will be installed.

2. Park the vehicle on level ground with the wheels turned fully to the left. Begin with the driver’s side MudFlap installation.

3. Pieces shown need to be removed for a proper fit.

4. Pieces shown need to be removed for a proper fit.

5. On the front, additional fasteners will need to removed. This fastener is a small plastic rivet with a Phillips head center core. Using a small Phillips screwdriver, carefully unscrew the center portion of the rivet. When this is removed, the rest of the rivet can be removed. Install the MudFlap following the included instructions that come with the MudFlap. Parts kit (CC) contains plastic spacers that may be used in the lower mounting hole, behind the MudFlap. The spacers included are to take up the space left by the plastic trim piece previously removed.

6. Locate the (2) additional fasteners, on the rear, that will need to be removed. These fasteners are 2-piece plastic rivets. Included in the parts kit is a T20 Torx bit. This bit is to be used with a ¼" socket to remove the (2) plastic rivets. When these plastic rivets are removed, along with the (2) hex head fasteners, the plastic trim piece can be removed. The plastic spacers can be used on the lower mounting hole similar to the front flap and take up the space left by the plastic trim piece previously removed. Install the MudFlap following the included instructions that come with the MudFlap.
