Installation Time
(approx) 4 Hours
Difficulty Level:
Mechanical expertise or professional installation required.
Guaranteed 12/24 Delivery Still Available see item page for details! available on most items - Details
Talk to a Sierra 1500 Sales Tech
1-888-706-1096
M-F 8:30A-11P, Sat-Sun 8:30A-9P
Find Ring & Pinion Gears for your Sierra 1500

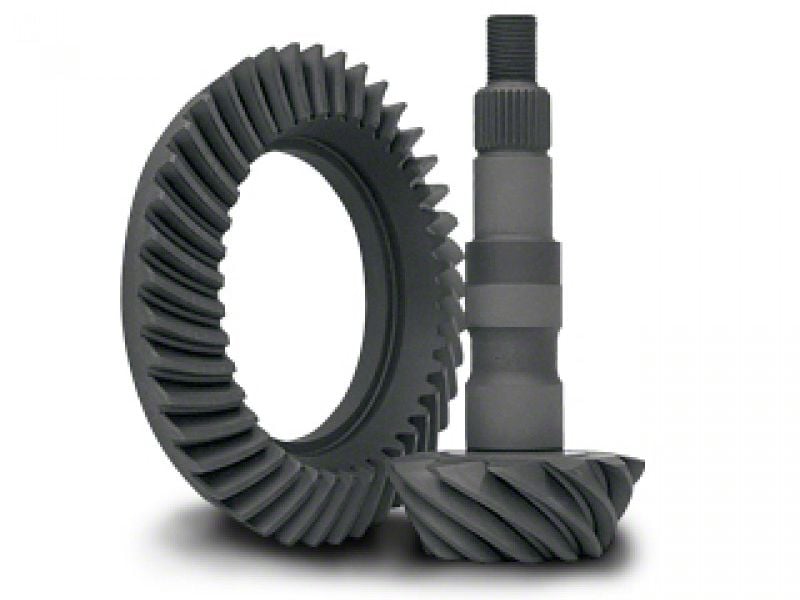

USA Standard Gear 9.5-Inch Rear Axle Ring and Pinion Gear Kit; 4.88 Gear Ratio (07-13 Sierra 1500)Find parts that fit my vehicle
Item S506744
Sierra 1500 Sales Techs:
Connect Now
M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Our Price
$342.89 kit
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Ideal for Performance Applications
- With a 4.88 Gear Ratio
- Features a 9.5 in. Ring Gear Diameter
- 30-Spline Pinion
- 12 Ring Gear Bolts
- Forged Premium Grade 8620 Triple Alloy Steel
- Professional Installation Recommended
- Comes with a 1-Year Warranty
- Fits 2007 to 2013 GMC Sierra Models
Description
Economical High-Performance Gears. If you want to sport bigger tires without losing stock performance, you have to upgrade your ring and pinion gears. Fortunately, there are a lot of options in the market and you don’t necessarily need the most expensive set. Take a look at this 9.5 in. Rear Ring Gear and Pinion Kit with 4.88 gears. This affordable high-performance gear kit is great for larger wheels, especially on the highway. It compensates for the lift and larger tires so you don’t lose too much fuel efficiency and top cruising speeds.
Impressive Quality at Surprising Prices. This 9.5 in. Rear Ring Gear and Pinion Kit is made of the same materials as more expensive options. The gear set is made of forged 8620 triple alloy steel. Each gear undergoes state-of-the-art machining to achieve the prescribed clearance and tolerance required for the gears to rotate smoothly.
Retuning Recommended. Whenever you change your gear ratio, you need to have your speedometer recalibrated. Use a tuner or a recalibration device to update your speedometer after the new gears are installed.
Body Shop Installation. It’s ideal to have this 9.5 in. Rear Ring Gear and Pinion Kit professionally installed. Since the use of special tools and equipment are required, an experienced mechanic is the best person to do the installation.
Warranty Statement. This 9.5 in. Rear Ring Gear and Pinion Kit comes with a 1-year warranty and it covers material and workmanship issues. Excluded from the warranty are damages caused by shipping, mishandling, installation, and normal wear.
Technical Note. In every gear change, check to make sure your front and rear axles have matching or close to matching gear ratios. Engaging 4WD while on mismatched gear can cause damages to your truck’s drivetrain.
Application. This 9.5 in. Rear Ring Gear and Pinion Kit fits 2007 to 2013 GMC Sierra 1500 models.
Shop All Truck Parts And Accessories
Shop All Truck Drivetrain Parts
Shop All Truck Gears: Ring And Pinion
Fitment:
- 2007 GMC Sierra 1500
- 2008 GMC Sierra 1500
- 2009 GMC Sierra 1500
- 2010 GMC Sierra 1500
- 2011 GMC Sierra 1500
- 2012 GMC Sierra 1500
- 2013 GMC Sierra 1500
USA Standard Gear ZG GM9.5-488
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Rear Ring Gear
- (1) Pinion Gear
