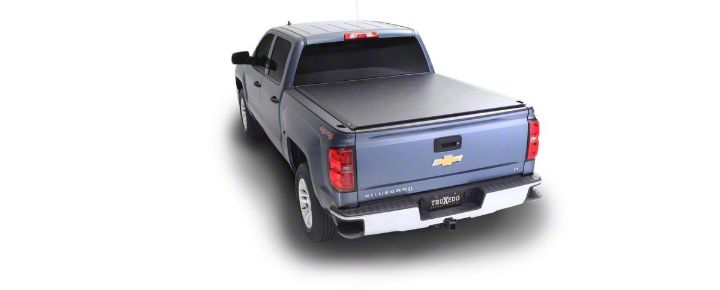

How to Install Truxedo Lo Pro QT Roll Up Tonneau Cover on your Sierra

1. With side rails positioned as shown attach clamps and plastic shims to the side rails at the locations shown. Refer to detail A and B for plastic shim placements.

2. Disassemble stake pocket clamp assemblies by unscrewing the stake pocket clamp half from the female clamp half.

3. Insert stake pocket clamp half into stake pocket. Pull up slightly on bed cap cover to allow clamp to slip between plastic stake pocket and metal side rail. While holding stake pocket clamp half, insert male clamp half and bolt through the bolt hole of the stake pocket. Insert plastic shim in clamping location. Bolt clamp halfs together and tighten.

With side rails positioned as shown attach clamps and plastic shims to the side rails at the locations shown. Refer to detail A and B for plastic shim placements.

Note: If your truck has aftermarket or factory bed caps, use plastic shims, part number 1117097. Failure to do so may cause side rail to not sit level and or could cause damage to the vehicle. Contact customer sevice for information regarding shim kit 1117097
