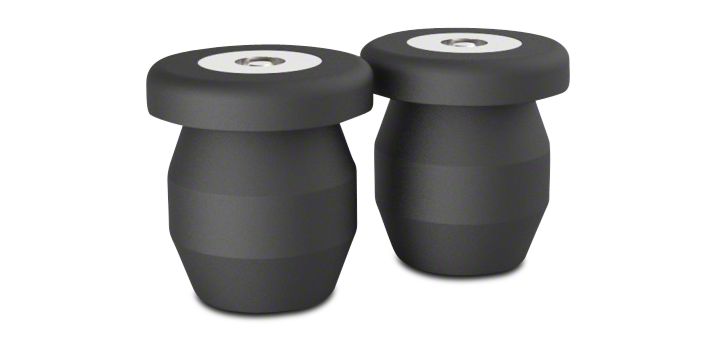

How to Install Timbren SES Suspension Enhancement System - Front on your Ram
Shop Parts in this Guide
INSTALLATION INSTRUCTIONS
a) Raise vehicle allowing the axle to hang freely.
b) Remove existing bump stop by prying out of bump stop cup.
c) Position Aeon spring assembly into bump stop cup. Push and twist simultaneously. ( See diagrams A & B.) Ensure the assembly is fully seated in cup.
d) Lower vehicle.
Clearance Instructions:
Rear SES Kits for Pick-Ups and Vans should have a 1/2" to 1-1/2" gap between the rubber spring and contact point when empty.
A partial load, or vehicle accessories will reduce or eliminate the gap.
Front SES kits are usually in full contact.
Medium and Heavy-Duty Trucks, Trailers and Motorhomes will be in constant contact, and have no gap.
