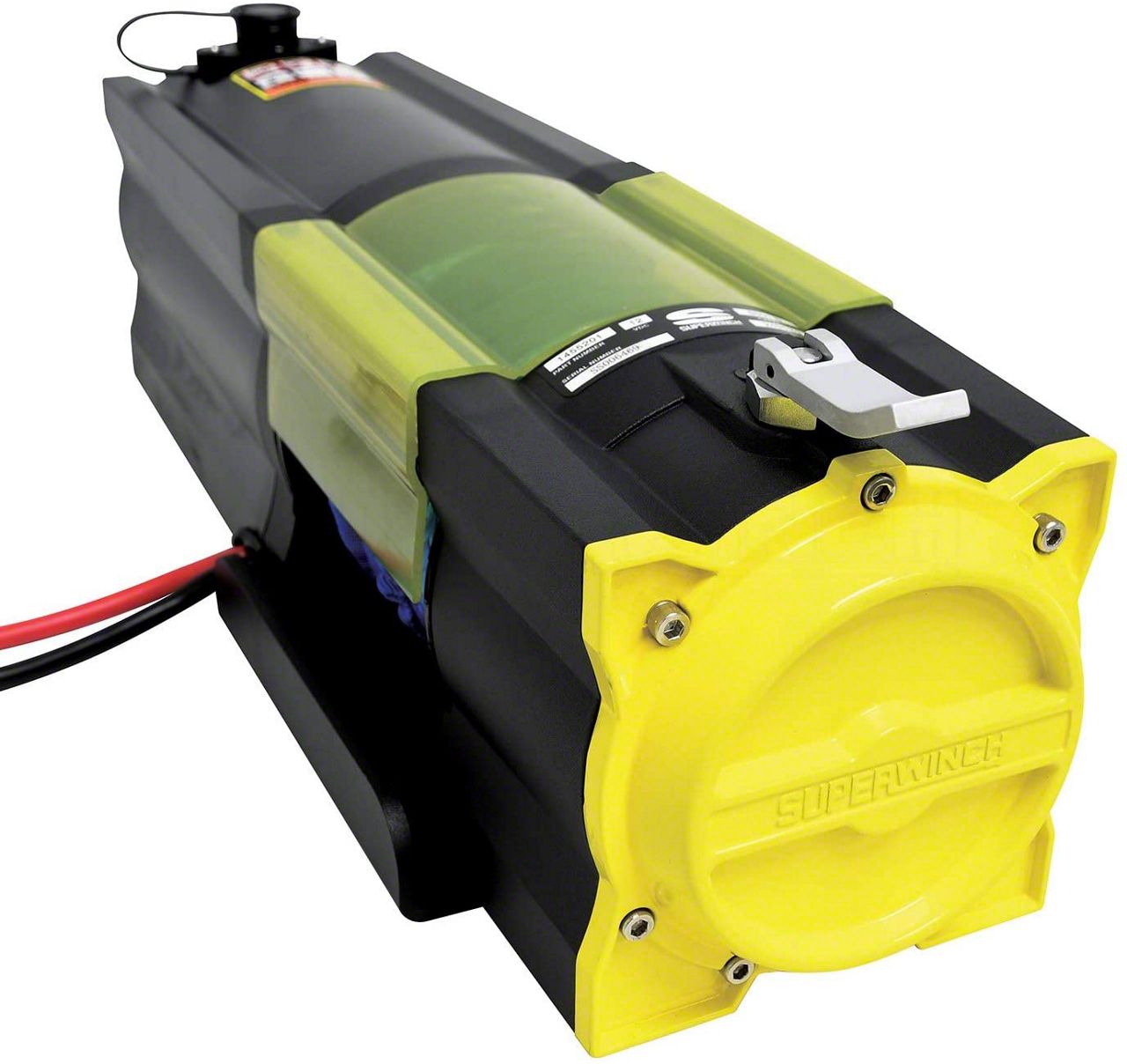

Superwinch 5,500 lb. S5500 Winch with Synthetic Rope (Universal; Some Adaptation May Be Required)Find parts that fit my vehicle
Item R119284
$0.00
Our Price
$741.99 kit
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Heavy-Duty, 5,500-Pound Pull Rating
- Equipped with a 3.60 HP Permanent Magnet Motor
- 3-Stage Planetary Gearbox with a 159:1 Gear Ratio
- Highly Durable 90-Foot Synthetic Rope
- Features a Handheld Remote
- Hook and Hawse Fairlead Included
- Safety-Tinted Cover Included for Safety
- Features a 2-Bolt or 4-Bolt Mounting Bolt Pattern
- Weighs 92 Pounds
- Backed by a Limited 2-Year Warranty
- Fits All RAM 1500 Models; Some Adaptations May Be Required
Description
Remarkable Recovery Machine. Pull your RAM 1500 out of the most difficult off-road situations with this Superwinch 5,500-Pound S5500 Winch with Synthetic Rope. It delivers a remarkable 5,500 pounds of pulling power for those extreme recovery operations. Without a doubt, with this winch on your truck, you can rest assured of a worry-free adventure on the most difficult terrain.
Impressive 5,500-Pound Capacity. This Winch is powered by a 3.60 horsepower permanent magnet motor that features a 3-stage planetary gearbox with a 159:1 gear ratio. This provides an impressive 5,500 pounds of pulling power. Lastly, this winch also features a full-load-holding automatic mechanical brake to ensure unmatched safety during operation.
Additional Features. This 5,500-pound Winch comes with a hawse fairlead which is designed to minimize the damage on the rope during operation and to keep it from binding. This winch includes a 90-foot synthetic rope that is specially engineered to provide unmatched durability to ensure worry-free performance. And to ensure the safety of this winch’s cable and drum, it includes a safety-tinted protective cover. Finally, this winch is equipped with a handheld control that allows you to conveniently operate it from a safe distance.
Straightforward, Bolt-On Design. The design of this Winch allows for straightforward installation. It includes all the installation hardware and brackets needed so you can set it up on your truck quickly and with relative ease. However, AmericanTrucks highly recommends professional installation to guarantee trouble-free best results.
Backed by a Limited 2-Year Warranty. To ensure quality, Superwinch backs this 5,500-Pound Winch with a warranty against material or manufacturing defects for 2 years from the original date of retail purchase. Some limitations apply. To find out more, you may refer to the manufacturer’s website.
Application. This Superwinch 5,500-Pound S5500 Winch with Synthetic Rope is designed for use on all RAM 1500 models.
Application Note. The use of this Superwinch Winch may require some adaptation to guarantee a proper fit.
Superwinch 1455201
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Gearbox Cover
- (1) Gearbox Oring
- (1) Sungear Bearing
- (1) Sun Gear
- (1) First Stage Planetary Assembly
- (1) Second Stage Planetary Assembly
- (1) Third Stage Planetary Assembly
- (1) Second Stage Ring Gear
- (1) Third Stage Ring Gear
- (1) Freespool Assembly
- (1) Gearbox Housing
- (1) Drum Cover
- (2) Tie Bars
- (2) Drum Bushings
- (1) Up Seals
- (1) Drive Shaft
- (1) Drum Assembly
- (1) Brake Assembly
- (1) Baseplate
- (1) Motor Side Drum Support
- (2) Screw-Housing Assembly
- (1) Motor Assembly
- (1) Motor End Cap with Brush Kit
- (1) Leadwire Set
- (1) Motor Cover
- (1) Socket Assembly
- (1) Solenoid
- (2) Buss Bars
- (1) Fairlead Assembly
- (1) Circuit Breaker Cover Assembly
- (1) Circuit Breaker Assembly
- (1) Synthetic Rope Assembly
- (1) Hook
- (1) Handheld Controller
- Labels
- Installation Hardware
