Find 6 Inch to 8 Inch Lift Kits for your F-250
SuperLift 6-Inch Suspension Lift Kit with FOX Shocks (17-22 4WD 6.7L Powerstroke F-250 Super Duty)Find parts that fit my vehicle
Item SD4321
$1,886.99
32 Reviews
On Sale
-15% $1,886.99 kit Was $2,219.99
Out of Stock
$149.00 Oversized Item Fee
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Suspension Lift Kit - 6-inch Lift
- Maintains Ride Quality and Handling Characteristics
- Increases Ground Clearance
- Fox Performance Series 2.0 IFP Shocks - Front and Rear
- Front Coil Springs
- Fabricated Steel Rear Lift Blocks
- Track Bar and Radius Arm Drop Brackets
- Drop Pitman Arm
- Accommodates up to 40-inch Tall Tires
- Straight Forward Bolt-on Installation
- Fits 2017-2022 4WD 6.7L Powerstroke F-250 Super Duty Models
| Brand | SuperLift |
| Lift Height | 6.00 Inch |
| Lift Kit Type | Suspension Lift |
| Lift Kit Max Tire Size | 40 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Commanding Stance. Add a commanding, stance to your PowerStroke Super Duty by upgrading to a SuperLift 6-Inch Suspension Lift Kit that includes FOX Shocks. With 6 inches of lift, this kit can accommodate tires up to 40 x 13.5 in size mounted on 20-inch wheels allowing you to conquer any trail. This SuperLift Lift Kit features coil lift springs, radius arm lowering bracket, front compression travel-stop relocation brackets, track bar relocation, drop pitman arm and steering stabilizer brackets, as well as rear lift block spacers. What’s more, the included FOX Performance Series 2.0 IFP Shocks provide incredible dampening capacity for aggressive on and off-road driving.
Fox Performance Series 2.0 IFP Shocks. SuperLift includes FOX Performance Series 2.0 IFP Shocks in this kit for improved handling. Featuring a 5/8-inch hard chrome plated heat-treated alloy steel shaft, these FOX Shocks have a 2-inch diameter CNC machined 6061-T6 shock body that allows for increased cooling capacity. The Internal Floating Piston (IFP) mono-tube design separates the JM92 shock oil from the high-pressure, nitrogen-charged gas chamber to eliminate oil aeration allowing for maximum performance. These Shocks are completed in durable, clear-anodized finish for impressive good looks and long lasting durability.
Fabricated Rear Lift Blocks. The Rear Lift Blocks included in this SuperLift Kit have been fabricated from high grade steel for superior strength and extra rigidity. This fabricated block replaces the stock block and allows for proper pinion and axle angle all while reducing axle wrap.
Radius Arm Lowering Brackets. SuperLift designed their radius arm lowering brackets to maintain the proper OE caster angle/alignment to prevent premature tire wear. These radius arm lowering brackets are fabricated from high grade steel for superior strength and extra rigidity. They are then completed in a durable black powder coat finish for long lasting corrosion resistance, regardless of the elements they are exposed to.
Bolt-on Installation. SuperLift engineered their Lift Kit to be installed with no welding needed, making it a bolt-on kit. However, it should be noted that professional installation is recommended. With all the necessary hardware included, this Lift kit can be installed in about 8 hours time. Please note that an alignment is highly recommended after installation.
Application. ThisSuperLift 6-Inch Suspension Lift Kit with FOX Shocks is designed to fit 2017-2022 4WD 6.7L Powerstroke F-250 Super Duty models.
Application Notes.
- If equipped with a 2-piece rear drive shaft, a carrier bearing spacer is required. Part # 9669
- If equipped with factory top mount overload leaf springs, longer u-bolts are required. Part # 11734
Recommended Tire Wheel Sizes.
- 37 x 12.5 - 17 x 9 with 4.5 backspacing
- 37 x 12.5 - 18 x 9 with 4.5 backspacing
- 37 x 12.5 - 20 x 9 with 4.5 backspacing
- 37 x 13.5 - 20 x 10 with -12 to -24 offset
- 38 x 13.5 - 17 x 9 with 4.5 backspacing
- 38 x 13.5 - 18 x 9 with 4.5 backspacing
- 38 x 13.5 - 20 x 9 with 4.5 backspacing
- 38 x 13.5 - 20 x 10 with -12 to -24 offset
- 40 x 13.5 - 20 x 9 with 5.5 backspacing
Fitment:
DetailsSuperLift K167F
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

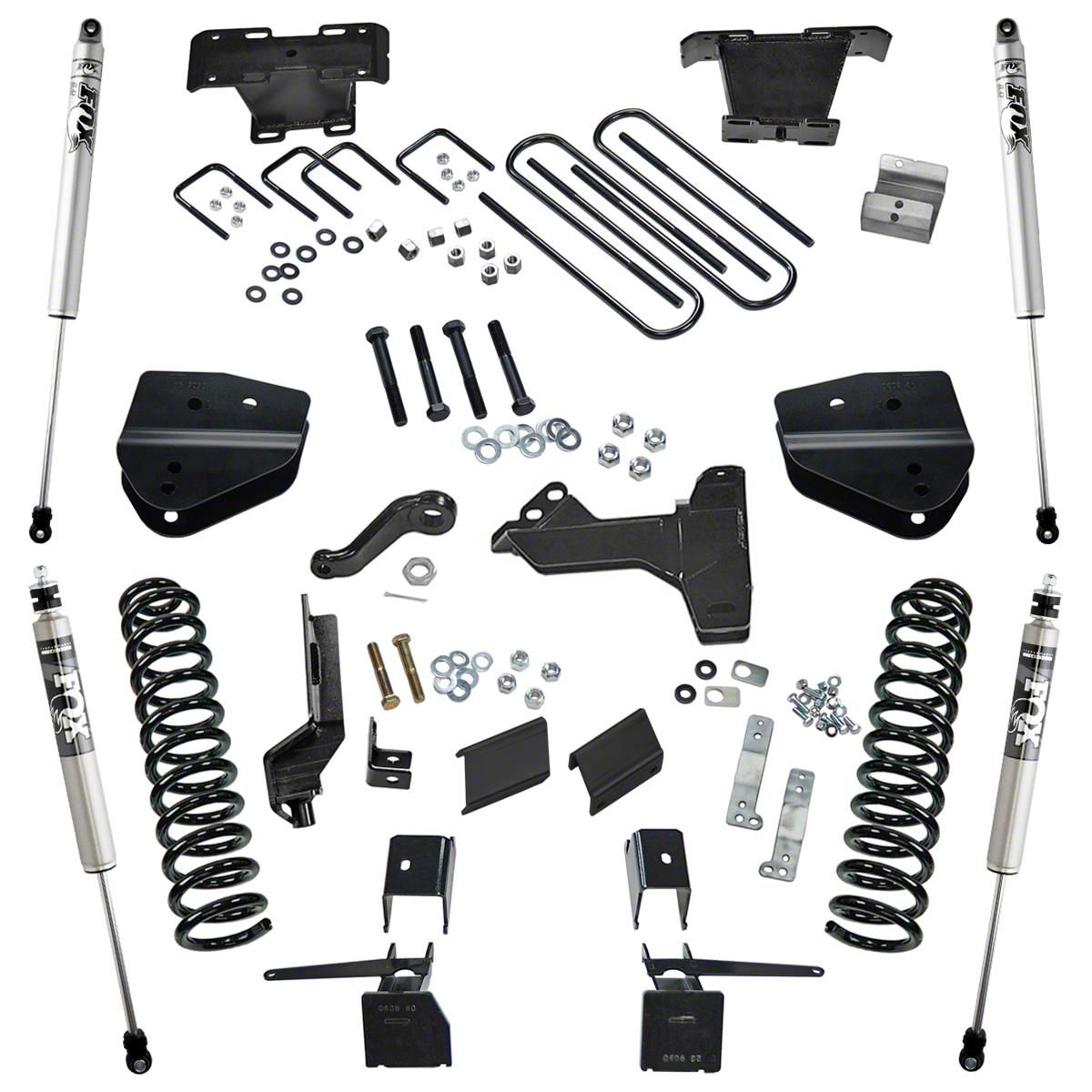

What's in the Box
- Front Coil Springs
- Shocks
- Radius Arm Drop Brackets
- Drop Pitman Arm
- Track Bar Bracket
- Brake Line Brackets
- Steering Stabilizer Bracket
- Rear Fabricated Blocks with U-bolts
- Installation Hardware
4.8
Customer Reviews (32)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My F-250
- 6.7L V8 Power-Stroke - 17, 18, 19, 20, 21, 22
