Find 3 Inch to 5 Inch Lift Kits for your F-250
SuperLift 4-Inch Radius Arm Suspension Lift Kit with Bilstein Shocks (17-22 4WD 6.7L Powerstroke F-250 Super Duty)Find parts that fit my vehicle
Item SD2667
$1,784.99
1 Reviews
On Sale
-15% $1,784.99 kit Was $2,099.99
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Suspension Lift System
- Provides 4-Inch Lift Height
- Offers Superior Off-Road Driveability and Improved Handling
- Front and Rear Bilstein Shock Absorbers
- Front Coil Springs
- With Heavy-Duty Radius Arms
- Includes Track Bar Relocation Bracket, Rear Blocks, and U-Bolts
- Accommodates Up to 37x13.50 Tires and 20x10 Wheels
- Bolt-On Installation With Mechanical Expertise
- Lift Force Supplemental Limited Powertrain Warranty
- Made in the USA
- Designed for All 2017-2022 4WD 6.7L Ford Super Duty F-250 Models
| Brand | SuperLift |
| Lift Height | 4.00 Inch |
| Lift Kit Type | Radius Arm Lift |
| Lift Kit Max Tire Size | 37 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Confident Off-Roading. Boost your Super Duty’s all-terrain performance to tackle the challenging terrains with ease and confidence. Install the 4-Inch Radius Arm Suspension Lift Kit with Bilstein Shocks from SuperLift to experience more adventurous drives using larger tire-and-wheel combo while ensuring superior handling.
Premium Bilstein Shocks. Featuring vehicle-specific valving, the Bilstein Shock Absorbers in this kit are designed for consistent fade-free performance. The monotube configuration ensures efficient heat dissipation mechanism and the corrosion-resistant zinc finish offers longer service life. These shocks deliver enhanced damping ideal for heavy hauling or off-roading without compromising on-road driveability.
High-Quality Coil Springs. This 4-Inch Lift System utilizes a pair of front coil springs that were engineered with precise spring rates to work well with the rest of the suspension components in the kit. Each spring exhibits high tensile strength to handle your Super Duty’s rough off-roading lifestyle while ensuring smooth and comfortable rides. It also appealingly enhances your truck’s confident stance, thanks to its black powder coated finish.
Heavy-Duty Radius Arms. Crawling over irregular terrains and treading through challenging trails require skillful navigation. SuperLift addresses this concern by means of its well-crafted, heavy-duty radius arms. This pair of links ensure proper axle alignment and control the forward and backward wheel motion. Each arm features a tubular construction with flat jack plates for extra rigidity to offer additional support to the vehicle. Moreover, these radius arms utilize press-fit Clevite rubber bushings for superior vibration damping and durability.
Rear Lift Kit. The SuperLift rear block kit distributes the weight of your cargo and improves the towing performance of your Super Duty. It also provides your rear section a little lift to achieve the proper ride height. It comes with 2 cast iron lift blocks and 4 U-bolts with premium hardware. The U-bolts are crafted using high-strength steel fortified by a corrosion-resistant finish.
Professional Installation. This Radius Arm Lift System with Bilstein Shocks is intended for a bolt-on installation that requires mechanical expertise. It comes with all the necessary hardware and directly bolts to the factory mounting locations of your truck.
Warranty.Superlift is excited to announce that all lift and leveling kits now come with a free Lift Force Supplemental Limited Powertrain Warranty. This warranty will protect you from disputes with original equipment manufacturers who are unfamiliar with aftermarket suspension systems. The Lift Force Warranty goes into effect if the manufacturer or dealership denies your drivetrain warranty claim due to installation of your Superlift lift or leveling kit.
Application. The SuperLift 4-Inch Radius Arm Suspension Lift Kit with Bilstein Shocks is specifically designed to fit all 2017-2022 4WD 6.7L Ford Super Duty F-250 models.
Shop All 3 to 5 Inch Truck Lift Kits
Shop All Truck Parts And Accessories
Shop All Truck Lift Kits
Fitment:
DetailsSuperLift K165B
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

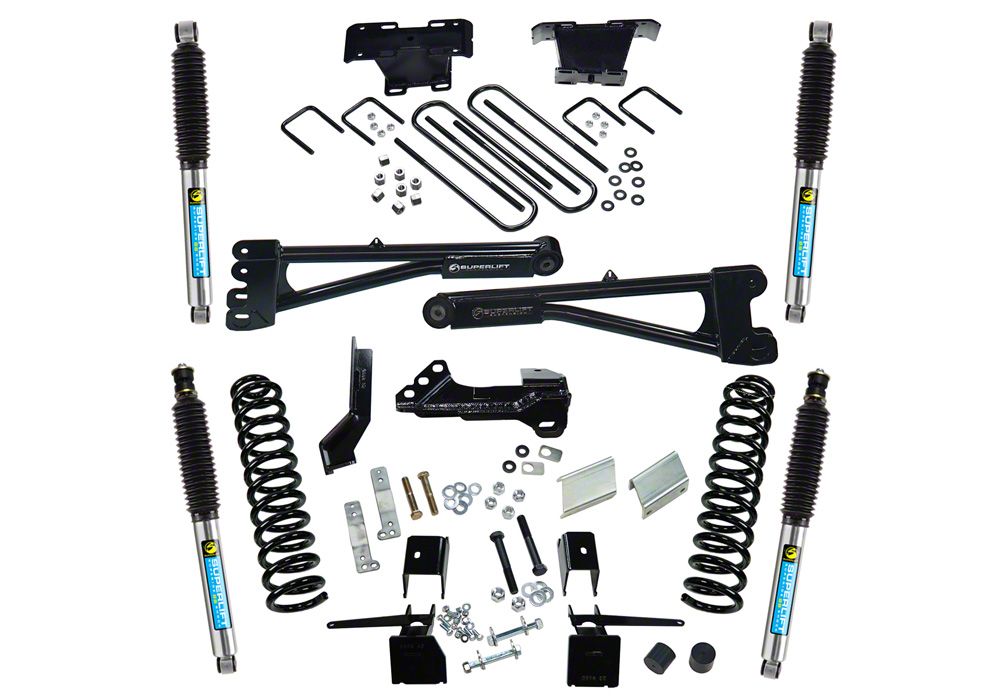

What's in the Box
- (1) Driver Side Radius Arm
- (1) Passenger Side Radius Arm
- (2) Front Bilstein Shock Absorbers
- (2) Rear Bilstein Shock Absorbers
- (2) Front Coil Springs
- (2) Compression Stops
- (1) Front Track Bar Bracket
- (1) Track Bar Bracket Spacer
- (1) Steering Stabilizer Bracket
- (2) Front Sway Bar Drop Brackets
- (2) Track Bar Keys
- (2) Front Brake Line Brackets
- (1) Rear Brake Line Bracket
- (2) Rear Blocks
- (4) U-Bolts
- (2) Shim Plates
- (4) Flange Nuts
- (4) U-Bolt Nuts
- (4) U-Bolt Washers
- (2) 0.375-Inch Bolts
- (6) 0.375-Inch SAE Washers
- (2) 0.375-Inch Nyloc Nuts
- (2) 18 mm x 130 mm Bolt
- (4) 18 mm Washers
- (4) 18 mm Nyloc Nuts
- (2) Cam Bolts
- (4) Cam Washers
- (2) 0.375-Inch x 1-Inch Bolts, Coarse Thread
- (2) 0.375-Inch Nyloc Nuts, Coarse Thread
- (1) 0.25-Inch Self-Tapping Bolt
- (1) 8 mm Bolt
- (1) 0.4375-Inch x 2.50-Inch Bolt
- (1) 0.4375-Inch SAE Washer
- (1) 0.4375-Inch Nyloc Nut
- (2) U-Bolt, Large Radius
- (2) Square U-Bolts
- (2) Long Shock Sleeves
5.0
Customer Reviews (1)
Reviews of SuperLift Suspension products have an average rating of 4.6 out of 5
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My F-250
- 6.7L V8 Power-Stroke - 17, 18, 19, 20, 21, 22
