The BantamX will save hours of wiring and installation time! It is a small, 8-circuit (expandable) control system that provides a clean (one ethernet cable into the cab!) and safe way to power and control 12/24VDC accessories.
Due to the small footprint of the BantamX, the placement options are endless! No cutting, fishing wires into the cab or tapping into the vehicle's electrical system. It's the perfect over-all solution for all your aftermarket electrical accessories with options unmatched by anyone.
Features:

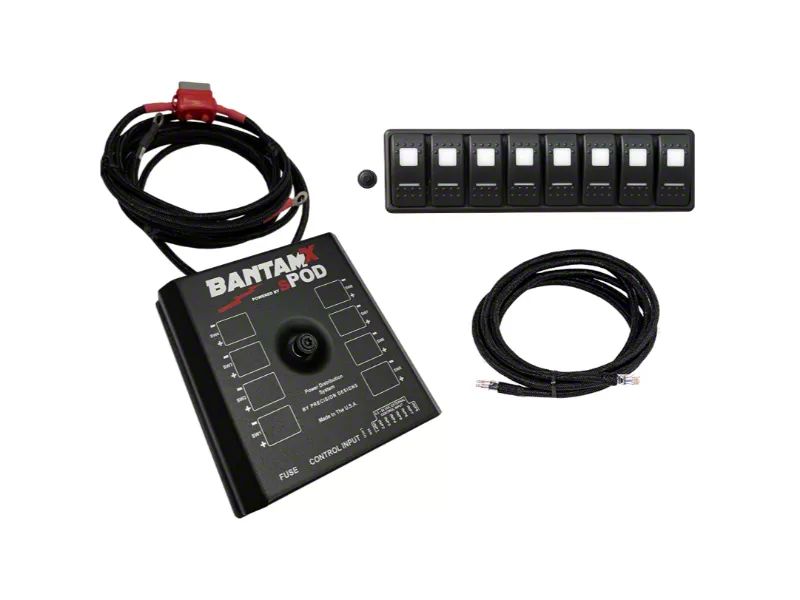

BantamX Modular w/ Red LED with 36 Inch battery cables
Fully programmable, digital controlled system
8 circuits rated at 30 amps at 12.5 VDC per circuit
16-position terminal block (easily attach accessories)
2 controller ports (RJ45) for Ethernet cables
Integrated low voltage cutoff (LVCO) battery protection w/ optional override
One ATM mini-style fuse for LVCO protection and reset
Failsafe self-healing fault protection system (from 1.5 to 30amps)
Current-sensing MOSFETs controlled by a microprocessor (no fuses and relays)
50amp auto-resetting circuit breaker
Nylon braided battery cables are hi-strand crosslinked copper wire with a silicone jacket
Operates on 12VDC or 24VDC
8-position input terminal block for controlling outputs
Built-in Bluetooth capabilities for remote control
Protection against: overheating, over-current, shorts, reverse polarity and field collapse
Ignition control and safety lock-out for switches 1 and 2 (optional)
Up to 4 BantamX units can be daisy chained and controlled by one Touchscreen
On-demand wireless software updates/upgrades
Hardware:
Powder coated steel base w/ built in hardware
Silicone gasket for weatherproofing
Aluminum lid
Vehicle specific mounting options
Robust insulated base and cover
Features Available Through sPOD Mobile App (free):
Each switch can be programmed for:
Dimming
Strobe
Flash
Momentary
Switch Linking
On Road and Off Road mode of operation
The following features are only available through the purchase of our Pro-Series App:
Circuit timers
Switch lockout
Initial startup current for each circuit is raised to 65amps for 5 seconds
Program any circuit to be always on while still maintaining fault protection
Option to disable deep sleep mode
Selectable auto restart after circuit shuts down from over current/short
Programmable Current Limiting (in 2amp increments up to 30amps)
Selectable auto restart for current limiting shut down
Selectable Latch or Momentary actions for inputs
Programmable ignition control for all 8 circuits
Variable strobe function to create custom flash/strobe patterns
External Controller Options (not included with system and can only be used in conjunction with an sPOD controller):
Third party switches
Computers
Arduino
Raspberry Pi
Alpine Audio systems KAC-001 head unit controller
Sensors, thermostats, pressure switches, fan controllers and more
Switch Panel:
Switch panel with eight dual lit LED Red switches (installed and pre-wired)
All wires are wrapped in high-temp abrasion resistant nylon braided sleeving.
Comes with a 10 foot CAT-6 Ethernet, can be extended up to 25-feet from BantamX)
Each switch has 2 programmable modes: strobe or flash
Aluminum panels are formed, welded and powder coated
Carling Technologies Contura switches (certified to IP66/68 - marine/harsh environment)
Controlled lower pilot light (push button)
Custom laser-etched rockers are available
Ability to daisy chain panels for remote operations (ie: panel in cab and panel at rear of truck)
Auto safe system shutdown when panel is unplugged
sPOD BXMOD36R
