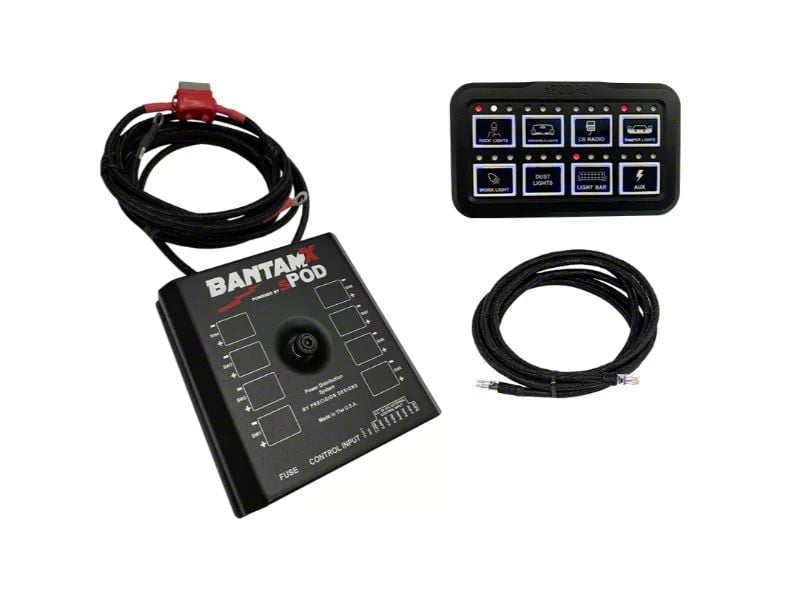

The BantamX will save hours of wiring and installation time! It is a small, 8-circuit (expandable) control system that provides a clean (one ethernet cable into the cab!) and safe way to power and control 12/24VDC accessories.
Due to the small footprint of the BantamX, the placement options are endless! No cutting, fishing wires into the cab or tapping into the vehicle's electrical system. It's the perfect over-all solution for all your aftermarket electrical accessories with options unmatched by anyone.
Features:
BantamX HD for Uni with 84 Inch battery cables
Fully programmable, digital controlled system
8 circuits rated at 30 amps at 12.5 VDC per circuit
16-position terminal block (easily attach accessories)
2 controller ports (RJ45) for Ethernet cables
Integrated low voltage cutoff (LVCO) battery protection w/ optional override
One ATM mini-style fuse for LVCO protection and reset
Failsafe self-healing fault protection system (from 1.5 to 30amps)
Current-sensing MOSFETs controlled by a microprocessor (no fuses and relays)
50amp auto-resetting circuit breaker
Nylon braided battery cables are hi-strand crosslinked copper wire with a silicone jacket
Operates on 12VDC or 24VDC
8-position input terminal block for controlling outputs
Built-in Bluetooth capabilities for remote control
Protection against: overheating, over-current, shorts, reverse polarity and field collapse
Ignition control and safety lock-out for switches 1 and 2 (optional)
On-demand wireless software updates/upgrades
Hardware:
Powder coated steel base w/ built in hardware
Silicone gasket for weatherproofing
Simple, thumb screw fastening aluminum lid with convenient silkscreened outlines for supplied legend placement
Universal and vehicle specific mounting options
Robust insulated base and cover
Features Available Through sPOD Mobile App (free):
Each switch can be programmed for:
Dimming
Strobe
Flash
Momentary
Switch Linking
On Road and Off Road mode of operation
The following features are only available through the purchase of our Pro-Series mobile App:
Circuit timers
Switch lockout
Initial startup current for each circuit is raised to 65amps for 5 seconds
Program any circuit to be always on while still maintaining fault protection
Option to disable deep sleep mode
Selectable auto restart after circuit shuts down from over current/short
Programmable Current Limiting (in 2amp increments up to 30amps)
Selectable auto restart for current limiting shut down
Selectable Latch or Momentary actions for inputs
Programmable ignition control for all 8 circuits
Variable strobe function to create custom flash/strobe patterns
External Controller Options (not included with system and can only be used in conjunction with an sPOD controller):
Third party switches
Computers
Arduino
Raspberry Pi
Alpine Audio systems KAC-001 head unit controller
Sensors, thermostats, pressure switches, fan controllers and more
HD Control Panel:
Encased in an aluminum billet machined housing, powder coated black, utilizing tactile switches encapsulated in silicone.
Silicone Buttons with positive touch feedback.
Panel is designed to withstand the harshest environments with all weather conditions considered.
Compact in size: 2-7/8W x 4-7/8L x 1/2 Thick (smaller than an iPhone).
Universal back with two pressed-in 1/4-20 studs x 5/8 inches long for flat mounting.
Standard universal articulating mount for a multitude of mounting options.
One standard RJ45 jack on back for communication cable between HD panel and the BantamX. (HD comes with a 10 foot CAT-6 Ethernet cable)
HD can be loca
