Find Winches for your Sierra 1500

XP-10S 10,000 lb. Winch with Synthetic Rope (Universal; Some Adaptation May Be Required)Find parts that fit my vehicle

Item S540533

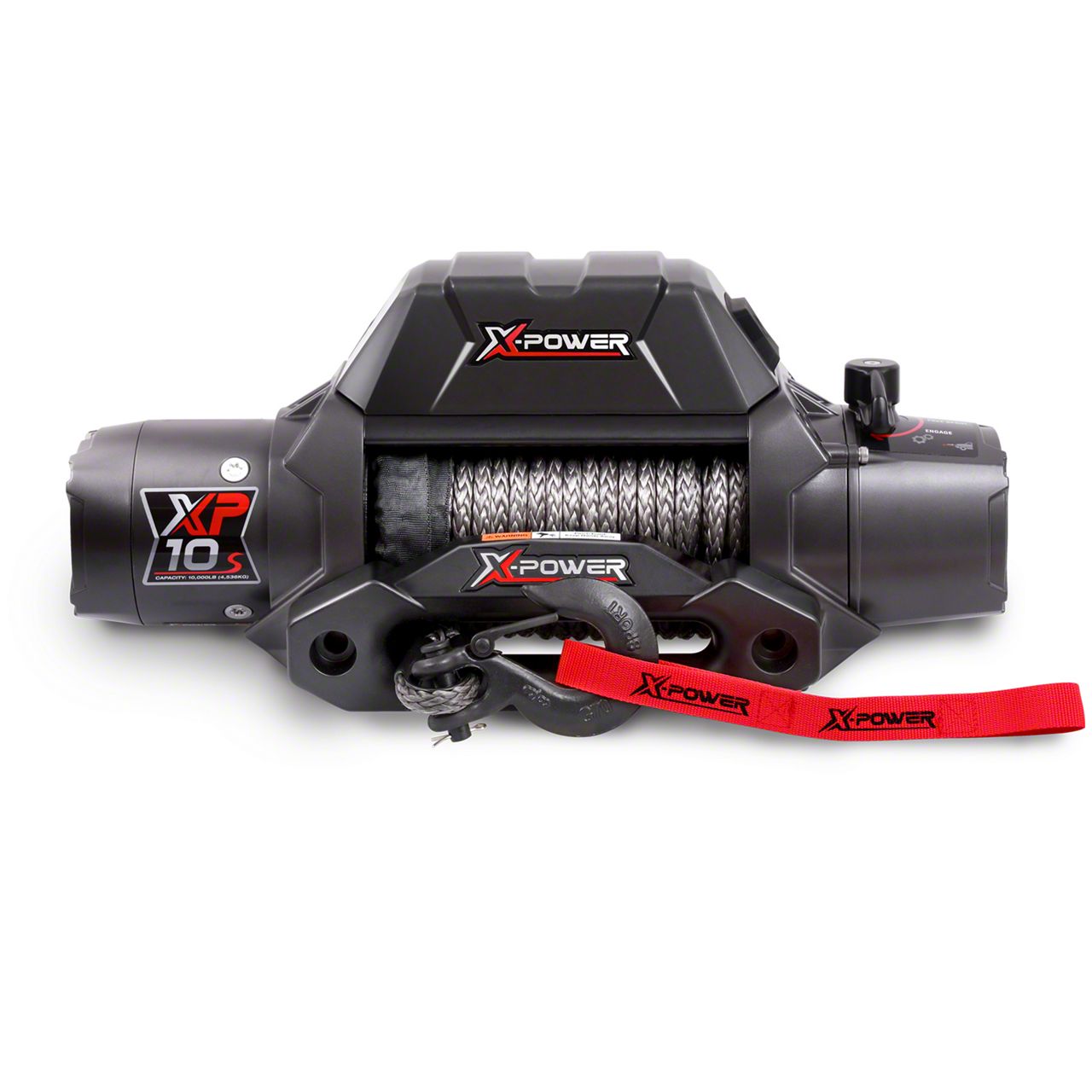

XP-10S 10,000 lb. Winch with Synthetic Rope (Universal; Some Adaptation May Be Required)
Verify parts fit and get product recommendations.
Sierra 1500 Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
Call now 1-888-706-1096 Chat Now
$0.00
Want $10? Write one of the first 5 reviews
Our Price

$774.99

In Stock

$99.00 Oversized Item Fee

to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Loading Indicator

      Product Information

      Description, Q&A

      Description

      Description. SPECIFICATIONS XP-10S-INT

      Item Number 10802006

      Rated Line Pull 10000lbs (4536kg) Single-line

      Motor 12V DC Series Wound

      Electrical Controls Contractor

      Remote Control 2 in 1 Remote Switch, 12FT Lead

      Geartrain 3-Stage Planetary

      Gear Ratio 216:1

      Clutch (Freespooling) Sliding Ring Gear

      Brake Double Disk Brake

      Drum Diameter 2.75 IN

      Drum Length 8.8 IN

      Rope 11/32 IN X 82 FT Synthetic

      Fairlead Aluminium Hawse

      Recommended Battery 650CCA Mininum for Winching

      Battery Leads 2 Gauge, 71 IN

      Finish Dark Gray Power Coat

      Weight 61.3 lbs

      Mechanical Warranty Limited Lifetime

      Electrical Warranty 7 Years

      Product properties

      Power Supply

      12V DC - uitverkocht

      Motor Type

      SW-4P - uitverkocht

      Rope

      Synthetic - uitverkocht

      Control Pack

      Integrated - uitverkocht

      Rated Capacity (LBS)

      10000 LBS - uitverkocht

      Rated Capacity (KG)

      4536 kg - uitverkocht
