How to Install Leitner Designs Bed Rack Universal Mounting Plate on your Sierra

Installation Time

1 hours

American Muscle
Shop Parts in this Guide

PACKAGE CONTENTS


BEFORE INSTALLATION

READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING.

ASSEMBLE UNIVERSAL MOUNTING PLATE AND INSTALL

1) INSTALL TWO T-BOLTS INTO THE TOP RAIL AND TWO INTO THE BOTTOM.

2) ALIGN UNIVERSAL MOUNTING PLATE WITH T-BOLTS AND USING M8 LOCKNUT TIGHTEN TO 16 LB-FT. THE TOP OF THE PLATE IS MARKED WITH A SMALL TRIANGLE.

NOTE:
QUICKFIST CLAMPS ARE NOT INCLUDED IN KIT BUT CAN BE PURCHASED FROM WWW.ENDROAD.COM

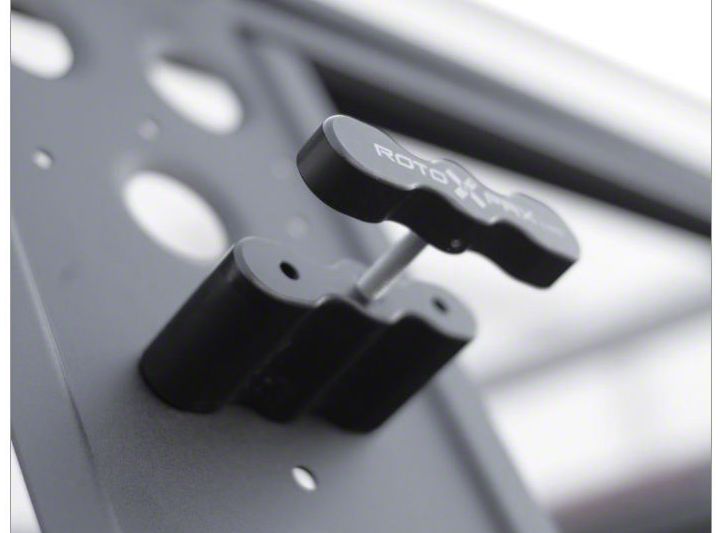

APPLICATIONS FOR UNIVERSAL MOUNTING PLATE
