How to Install Husky Rear Mud Guards (14-18 Sierra 1500) on your GMC Sierra
Installation Time
30 minutes
Tools Required
- Phillips Screwdriver
- 1/8” Drill bit / Driver
Shop Parts in this Guide
GMC SIERRA REAR MUD GUARD - INSTALLATION INSTRUCTIONS
Tools Required
- Phillips Screwdriver
- 1/8” Drill bit / Driver
Package Contents

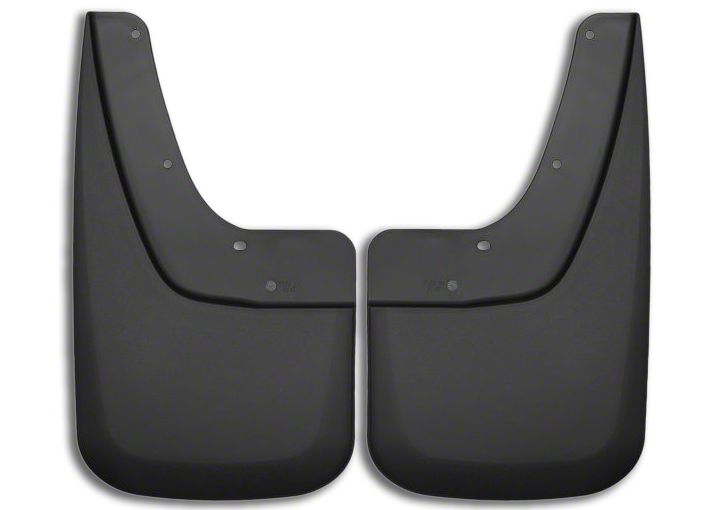

- Driver & passenger side rear mud guards
- #10 SEM SCREWS (Qty 6)
- Instruction sheet
MUD GUARD INSTALLATION
NOTE: It may be necessary to remove the wheels before mud guard installation.
Determine which mudguard you have by locating the part number molded in the mounting flange (5789 LH 5789 RH).
1. Using the mudguard as a template, mark and drill an 1/8” hole at locations A, B and C
2. Install #10 SEM screws at locations A, B and C.
