How to Install Husky X-Act Contour Front Floor Liners - Black on your Sierra

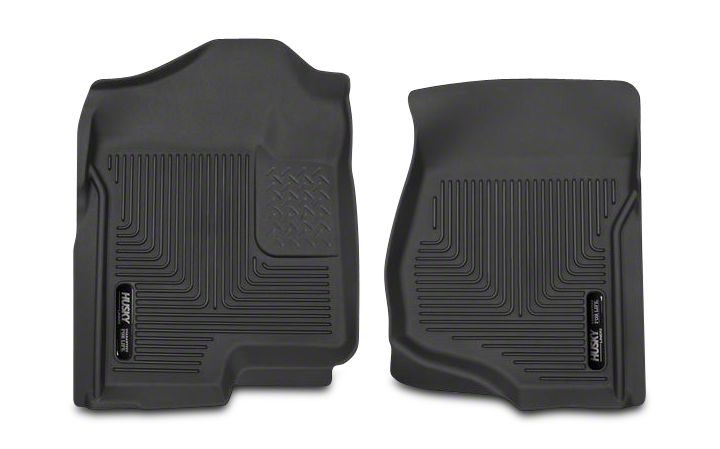

Thank you for selecting X-act Contour™ Front Floor Liners from Winfield Consumer Products. Your new front floor liners are custom molded to fit your specific vehicle’s floor board. The liners are made to take the place of your factory floor mats. For correct fit, it is necessary to remove the factory floor mats before installing your new floor liners. However, do not remove the factory-installed carpeting.

Your liners are made from an engineering resin that is lightweight and extremely tough and durable. The easiest way to clean your liners is with a damp cloth or sponge and soap and water. Windex®, 409® and ArmorAll® type cleaners work as well.

YOUR NEW LINER SET INCLUDES OUR NEW FLOOR LINER RETAINING CLIP SYSTEM. THIS RETAINING CLIP GIVES THE EXTRA SECURITY WHILE KEEPING SPILLS AND DEBRIS TRAPPED INSIDE THE LINERS. TO INSTALL THE HUSKY® LINER RETAINING CLIPS, SIMPLY FOLLOW THE INSTRUCTIONS BELOW:

1) Pre fit your new Xact Contour floor liner in your vehicle (Image 1).

2) Insert the screw-in carpet retention screw into the bottom of the Xact Contour liner (Image 2).

3) Press down on the liner to pre-mark the carpet screw into the carpet (Image 3).

4) Screw the carpet screw into the carpet with a flat blade screwdriver (Image 4).

5) Press the Xact Contour liner over the top of the carpet screw post (Image 3).
