Find 6 Inch to 8 Inch Lift Kits for your F-250

Fabtech 8-Inch Radius Arm Suspension Lift Kit with Performance Shocks (11-16 4WD F-250 Super Duty w/o Factory Overland Springs)Find parts that fit my vehicle

Item SD0574
Fabtech 8-Inch Radius Arm Suspension Lift Kit with Performance Shocks (11-16 4WD F-250 Super Duty w/o Factory Overland Springs)
Verify parts fit and get product recommendations.
F-250 Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Want $10? Write one of the first 5 reviews 4.7 Fabtech Suspension product ratings
Our Price

$2,439.36 kit

Out of Stock $199.00 Oversized Item Fee

to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

      • Suspension Lift System
      • Lifts Truck by 8 Inches to Increase Ground Clearance
      • Facilitates Controlled and Smooth Off-Road Dynamics
      • Front and Rear Performance Shocks
      • Fabtech Front Coil Springs
      • With Full, Tubular Radius Arms
      • Rear U-Bolt and Block Lift Kit Included
      • Accommodates Up to 37x13.50 Tires and 20x10 Wheels
      • Professional Installation Highly Recommended
      • Limited Lifetime Warranty and a 5-Year, 60,000-Mile Powertrain Warranty
      • Fits All 2011-2016 4WD Ford Super Duty F-250s Without Factory Overland Springs

      Description

      Aggressive Off-Road Performance. Give your Super Duty the boost it needs in off-road performance, while elevating the respect and awe that come with its aggressive stance. Install the Fabtech 8-Inch Radius Arm Lift System with Performance Shocks to accommodate larger wheel-and-tire combos and take your off-road capabilities to the next level. This lift package comes with Fabtech’s legendary radius arms, Performance shocks, among other heavy-duty suspension components to improve your lifted vehicle’s off-road driveability.

      Optimum Damping Control. The twin-tube, hydraulic construction of the Performance shock absorbers, together with the high-flow, 9-stage valving, deliver superior damping. The closed cell foam insert significantly reduces the shock fade by eliminating the mixing of the oil and air, which ensures optimum damping control in all conditions. It also provides full oil contact with the inner and outer housings, while offering larger cooling areas for better shock performance.

      Smooth and Controlled Rides. Engineered to provide the needed lift and compression, the pair of front coil springs possesses exceptional tensile strength. Each spring was crafted with optimum rating and formed through a multi-level tempering procedure. It works well with the Performance shocks to enable your Super Duty to scale various trail obstacles with control and stability. Each spring also comes in a black powder-coated finish for extra corrosion resistance, while reinforcing your truck’s aggressive stance.

      Responsive Steering and High Directional Stability. The tubular Fabtech Radius Arms facilitate proper axle alignment and wheel motion, while offering extra strength to the vehicle. Each radius arm is furnished by dimple die side plates, adjustable alignment cams, and a 5-ton joint. This lift kit also comes with a forged Pitman arm that is designed to provide proper steering geometry and reliable pivoting support.

      Professional Installation. This 8-Inch Radius Arm Lift System with Performance Shocks is intended for a bolt-on installation that requires mechanical expertise. It comes with all the necessary hardware for a 1-day installation process.

      Warranties. Fabtech backs this 8-Inch Radius Arm Lift System with a limited lifetime warranty that covers factory defects in workmanship and materials. The Five Sixty Powertrain Warranty will apply if the claim falls within the first 5-year or 60,000-mile period of the vehicle. Some exclusions are indicated in the manufacturer’s warranty guide; please check the terms and conditions for full details.

      Application. The Fabtech 8-Inch Radius Arm Lift System with Performance Shocks is intended for use on all 2011-2016 4WD Ford Super Duty F-250 models without Factory Overland Springs.

      Shop All 6 to 8 Inch Truck Lift Kits

      Shop All Truck Parts And Accessories

      Shop All Truck Lift Kits

      Fitment:

      Details

      Fabtech K2123

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

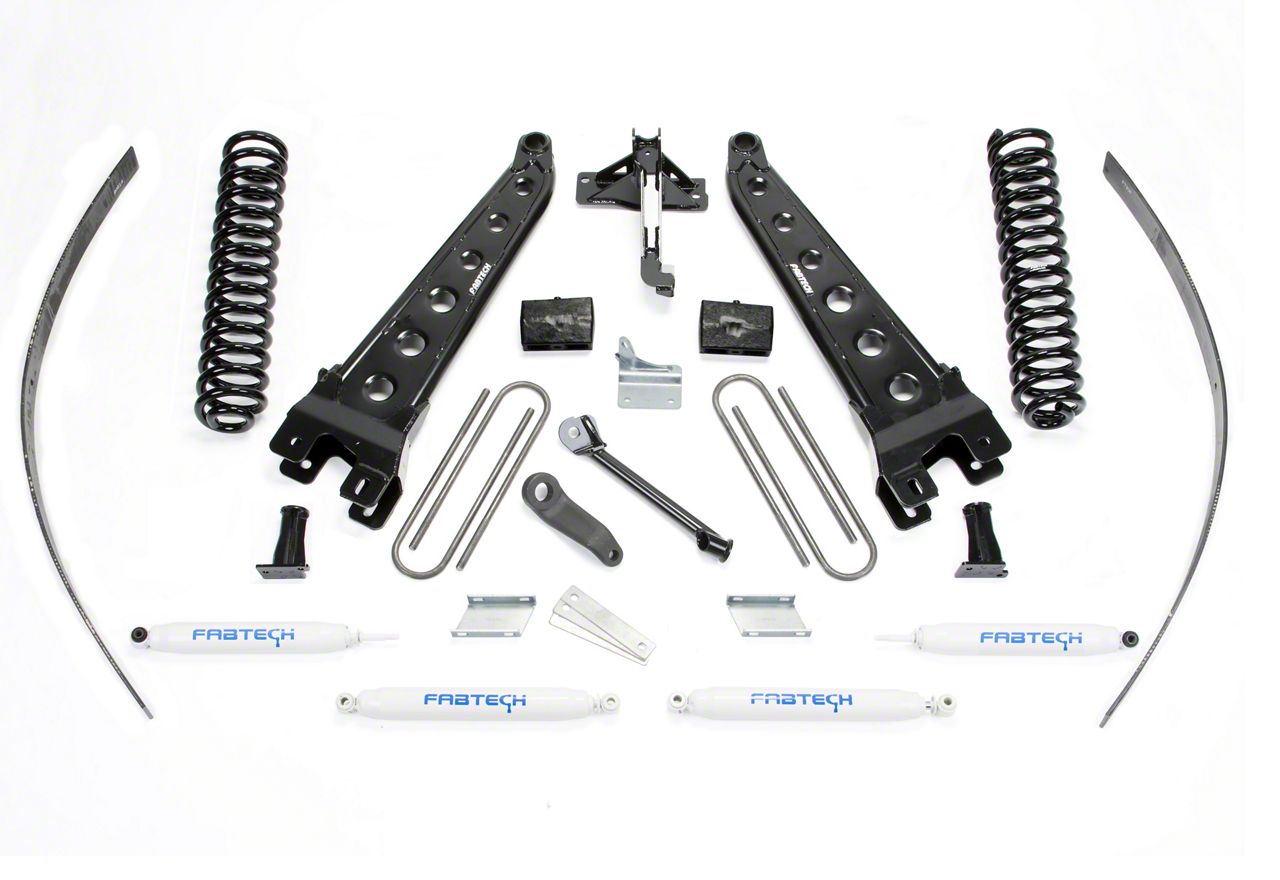

      What's in the Box

      • (1) Driver Side Custom Radius Arm
      • (1) Passenger Side Custom Radius Arm
      • (1) Pitman Arm
      • (1) Driver Side Front Bump Stop
      • (1) Passenger Side Front Bump Stop
      • (1) Steering Stabilizer Drop
      • (1) Driver Side Sway Bar Drop
      • (1) Passenger Side Sway Bar Drop
      • (1) Track Bar Drop Bracket
      • (1) Track Bar Support Tube
      • (2) Front Performance Shocks
      • (2) Rear Performance Shocks
      • (4) Bushings
      • (2) Sleeves
      • (1) Alignment Cam Half Kit
      • (2) Brake Lines
      • (2) Brake Line Unions
      • (5) Brake Line Brackets
      • (2) 5-Inch Block
      • (4) U-Bolts
      • (1) Shim Kit
      • (2) Sway Bar Brackets
      • Installation Hardware
      4.7

      Reviews of Fabtech Suspension Products (47)

      Brand Image

      Reviews of Fabtech Suspension products have an average rating of 4.7 out of 5

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My F-250

      • 6.2L V8 - 11, 12, 13, 14, 15, 16
      • 6.7L V8 Power-Stroke - 11, 12, 13, 14, 15, 16
