Find 6 Inch to 8 Inch Lift Kits for your F-250
Fabtech 6-Inch Radius Arm Suspension Lift Kit with Dirt Logic Shocks (17-22 4WD 6.2L F-250 Super Duty)Find parts that fit my vehicle
Item SD0526
$0.00
Our Price
$3,424.47 kit
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Radius Arm Lift System With Front and Rear Lift Height of 6 Inches
- Delivers Off-Roading Performance Boosts
- Gives a Smoother, More Comfortable Ride Experience
- Dirt Logic Front and Rear Shocks
- Fabtech Front Coil Springs
- Fabtech Replacement Radius Arms
- Rear Lift Blocks With U-Bolt Kit
- Track Bar Relocation Bracket
- Sway Bar Drop Brackets
- Comes With a Pitman Arm
- Accommodates a Maximum of 37-Inch Tires With Minor Trimming
- Maximum Tire Backspacing of 5 Inches
- Simple and Straightforward Installation
- Covered by a Limited Lifetime Warranty
- Fits 2017-2022 4WD Ford F-250 Super Duty Models With 6.2L Engines
| Brand | Fabtech |
| Lift Height | 6.00 Inch |
| Lift Kit Type | Radius Arm Lift |
| Lift Kit Max Tire Size | 37 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Enhanced Off-Roading Performance. For a more aggressive-looking truck with enhanced off-road performance to match, install this Fabtech 6-Inch Radius Arm Lift System With Dirt Logic Shocks on your Ford Super Duty. The added height improves your ride comfort, both on and off the road and makes room for up to 37-inch tires. There are also other performance-boosting parts that come with this lift system, including a set of radius arms to enhance steering response. There are also sway bar drop brackets and a track bar relocation bracket included in the kit for improved handling and vehicle stability.
Dirt Logic Front and Rear Shocks. For a smoother, more comfortable experience wherever you may be driving, Fabtech included a complete set of Dirt Logic front and rear shocks with this lift system. The robust structure is perfect for full-sized vehicles and large tires, delivering a superior ride and top-notch all-around damping.
Fabtech Front Coil Springs. Fabtech front coil springs are hot-wound from high-quality spring steel and finished with a protective layer against corrosion. This heavy-duty construction ensures that they will last for years and will keep the ride height consistent even under heavy loads. The added ground clearance also gives your vehicle a more balanced, rugged stance.
Fabtech Replacement Radius Arms. The radius arms that come with this lift system have a robust construction with a full tubular structure and dimple-die side plates. More importantly, they have an adjustable alignment camber at the axle for caster angle adjustment. This helps you fine-tune and enhance steering control.
Rear Lift Blocks With U-Bolt Kit. To achieve the rear lift height to match the front, this lift system comes with a set of rear lift blocks with a U-bolt kit. The lift blocks have a tapered design that reduces the drive shaft angle, which makes your vehicle a lot easier to handle. The U-bolts, meanwhile, provide additional support and ensure a secure fit.
Track Bar Relocation Bracket. Lifted vehicles often experience wobbles and vibrations in the suspension due to off-center alignment. A track bar relocation bracket helps correct this misalignment, which helps restore and even enhance vehicle handling. A properly centered suspension also means that the parts will stay in tip-top shape for a long time.
Sway Bar Drop Brackets. Balance is a big concern for lifted trucks, which is why Fabtech also included sway bar drop brackets with this lift system. These brackets restore your truck’s balance by reducing body roll, especially when you make a turn or take a corner. These sway bar drop brackets also help in improving handling and articulation at any speed.
No-Weld Installation. Everything you need for direct, no-weld installation of this lift system has already been included with the package. Complete installation takes a couple of hours, with only minor drilling required for some of the components. After 50 miles, Fabtech recommends re-torquing the nuts, bolts, and lugs. Follow-up re-torques are recommended every so often.
Backed by a Limited Lifetime Warranty. Fabtech lift systems come with a limited lifetime warranty, which covers defects on the construction and materials.
Application. This Fabtech 6-Inch Radius Arm Lift System With Dirt Logic Shocks fits 2017-2022 editions of 4WD Ford Super Duty F-250 with 6.2L engines.
Shop All 6 to 8 Inch Truck Lift Kits
Shop All Truck Parts And Accessories
Shop All Truck Lift Kits
Fitment:
DetailsFabtech K2256DL
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

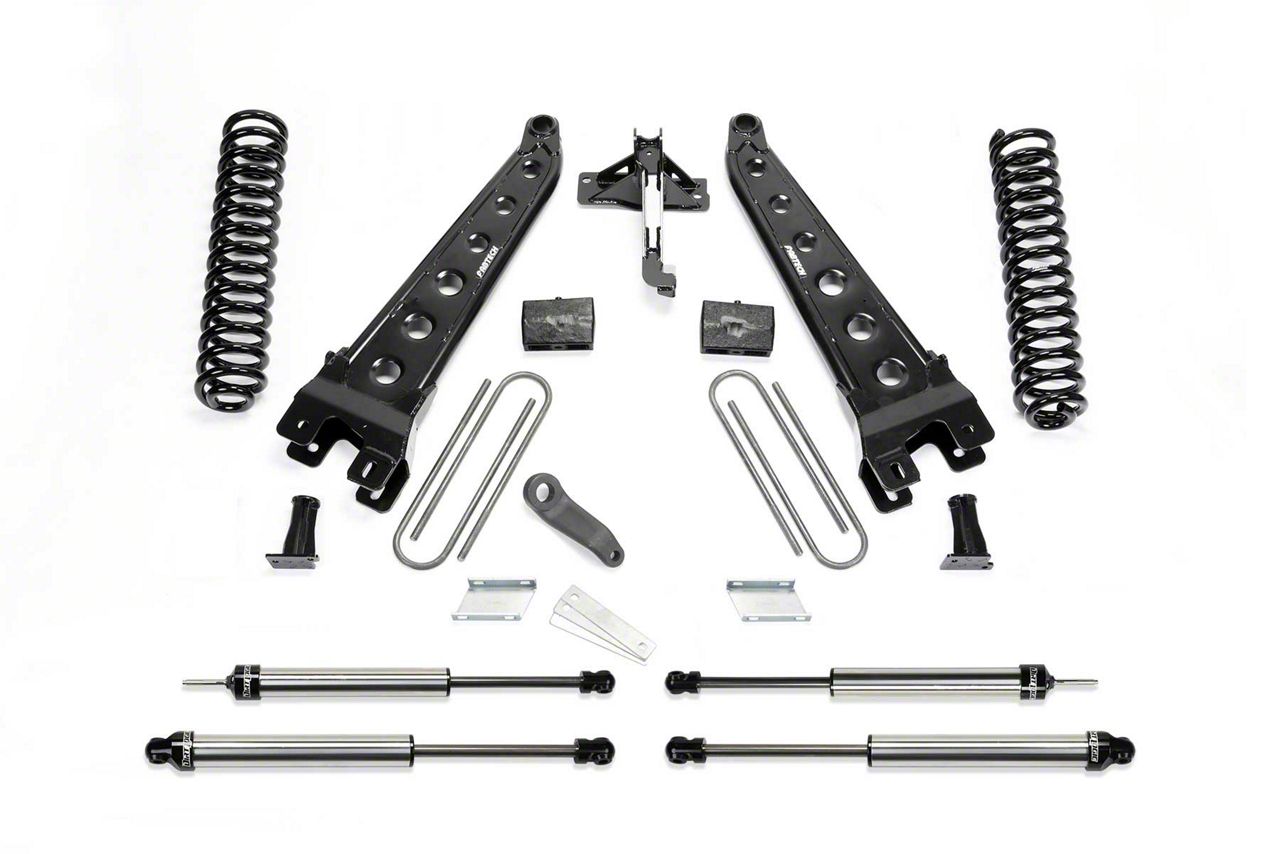

What's in the Box
- (2) Dirt Logic Front Shocks
- (2) Dirt Logic Rear Shocks
- (2) Front Coil Springs
- (2) Replacement Radius Arms
- (1) Rear Lift Block Kit With U-Bolts
- (1) Track Bar Relocation Bracket
- (1) Sway Bar Drop Bracket Kit
- (1) Pitman Arm
- (1) Coil Box Kit
- (1) Component Box
- Mounting Hardware
- Installation Instructions
4.7
Reviews of Fabtech Suspension Products (47)
Reviews of Fabtech Suspension products have an average rating of 4.7 out of 5
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My F-250
- 6.2L V8 - 17, 18, 19, 20, 21, 22
Not Compatible on Vehicles with Dual Rear (Dually) Wheels
