Installation Time
(approx) 5 Hours
Difficulty Level:
Mechanical expertise or professional installation required.
Guaranteed 12/24 Delivery Still Available see item page for details! available on most items - Details
Talk to a F-250 Sales Tech
1-888-706-1096
M-F 8:30A-11P, Sat-Sun 8:30A-9P
Find 6 Inch to 8 Inch Lift Kits for your F-250
Fabtech 6-Inch Radius Arm Suspension Lift Kit with Front Dirt Logic 2.25 Reservoir Shocks and Rear Dirt Logic Shocks (17-22 4WD 6.7L Powerstroke F-250 Super Duty)Find parts that fit my vehicle
Item SD0527
$0.00
Our Price
$3,644.01 kit
Out of Stock
$149.00 Oversized Item Fee
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Radius Arm Lift System With 6-Inch Front and Rear Lift Height
- Enhances Off-Road Capabilities
- Provides a Smoother Ride Experience
- Front Dirt Logic 2.25 Reservoir Shocks
- Rear Dirt Logic 2.25 Shocks
- Front Coil Springs
- Fabtech Replacement Radius Arms
- Rear Lift Blocks With U-Bolt Kit
- Track Bar Relocation Bracket
- Sway Bar Drop Brackets
- Comes With a Dropped Pitman Arm
- Accommodates Up to 37-Inch Tires With Minor Trimming
- Maximum Tire Backspacing of 5 Inches
- Direct and Hassle-Free Installation
- Covered by a Limited Lifetime Warranty
- Fits 2017-2022 4WD Ford Super Duty F-250s With 6.7L Engines
| Brand | Fabtech |
| Lift Height | 6.00 Inch |
| Lift Kit Type | Radius Arm Lift |
| Lift Kit Max Tire Size | 37 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Significant Boosts in Off-Road Performance. If you’re looking for an all-in-one kit to improve your Ford Super Duty’s off-road performance, this Fabtech 6-Inch Radius Arm Lift System With Front Dirt Logic 2.25 Reservoir Shocks and Rear Dirt Logic Shocks is a great choice. With its 6-inch lift height, you’ll get not just a comfortable ride experience, but also sufficient space for larger tires. Also included in the system is a pair of replacement radius arms for better steering control, and a track bar relocation bracket for reducing suspension vibrations.
Front Dirt Logic 2.25 Reservoir Shocks and Rear Dirt Logic Shocks. This lift system comes with a complete set of front and rear Dirt Logic shocks. These have a more robust design compared to the stock shocks, which help ensure top-quality damping with very minimal shock fade for full-size vehicles. They have also been pretuned to work perfectly with Fabtech suspensions.
Front Coil Springs. Apart from giving your truck an extra 6 inches of ground clearance, these front coil springs also help increase wheel travel to make your ride experience even more comfortable. Moreover, these springs are constructed from hot-wound steel coils, ensuring that the lift height will remain consistent throughout the years.
Fabtech Replacement Radius Arms. Lifted vehicles sometimes suffer from poor steering control. That’s why Fabtech included a set of replacement radius arms with an adjustable alignment camber at the axle. This allows you to adjust the caster angle, which in turn enhances steering response. These radius arms are also extra-tough, with a tubular structure and dimple-die side plates.
Rear Lift Blocks With U-Bolt Kit. The rear lift blocks that come with this lift system have a tapered structure, which helps reduce the driveshaft angle for better drivability. The U-bolt kit that comes with the lift blocks provide further support and ensures easy and secure installation.
Track Bar Relocation Bracket. The “death wobble” is a dreaded problem with lifted vehicles. Fabtech included a track bar relocation bracket with this lift system to specifically address this problem. This bracket helps maintain proper alignment of the suspension components, thus reducing the vibrations and resulting in driving stability and longer life of the said components.
Sway Bar Drop Brackets. Another problem with lifted vehicles is excessive body roll, which is particularly common when turning or cornering at high speeds. You can minimize body roll and restore balance to your truck by installing the sway bar drop brackets. You’ll also experience better handling and articulation, both at slow and fast driving speeds.
No-Weld Installation. This radius arm lift system is designed for a no-weld installation, with only minimal drilling required for certain components. Installation time is approximately 5 hours. Fabtech recommends a re-torque of the nuts, bolts, and lugs after 50 miles, and subsequent regular re-torques afterward.
Comes With a Limited Lifetime Warranty. All Fabtech lift systems are covered by a limited lifetime warranty against material and construction defects.
Application. This Fabtech 6-Inch Radius Arm Lift System With Front Dirt Logic 2.25 Reservoir Shocks and Rear Dirt Logic Shocks fits 2017-2022 models of the 4WD Ford Super Duty F-250 with 6.7L engines.
Shop All 6 to 8 Inch Truck Lift Kits
Shop All Truck Parts And Accessories
Shop All Truck Lift Kits
Fitment:
DetailsFabtech K2293DL
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

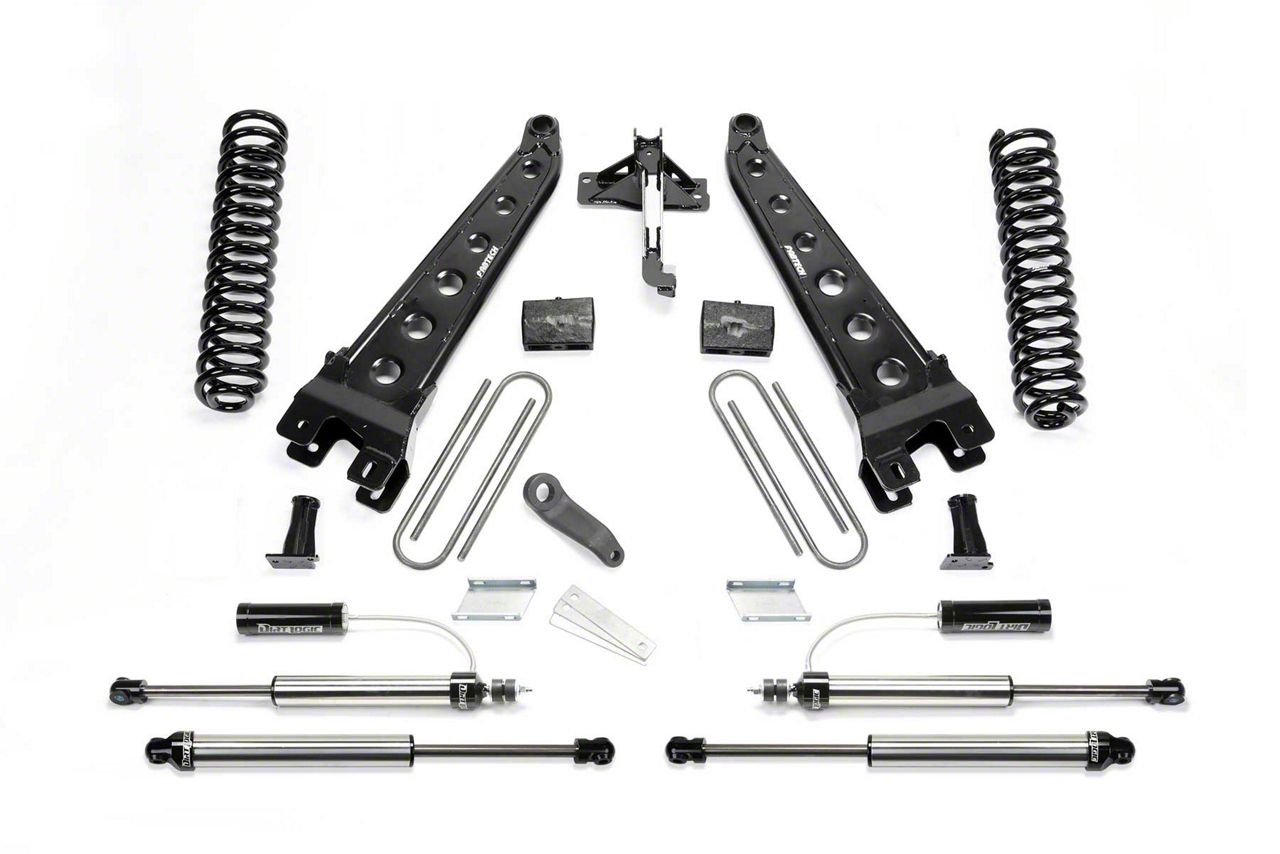

What's in the Box
- (2) Front Dirt Logic Reservoir Shocks
- (2) Rear Dirt Logic Shocks
- (2) Coil Springs
- (2) Fabtech Replacement Radius Arms
- (1) Front Bump Stop Brackets Kit
- (1) Brake Line Brackets Kit
- (1) Rear Lift Block Kit With U-Bolts
- (1) Rear Add-a-Lift Kit
- (1) Track Bar Relocation Bracket
- (1) Sway Bar Drop Bracket Kit
- (1) Dropped Pitman Arm
- (1) Component Box
- Mounting Hardware
- Installation Instructions
4.7
Reviews of Fabtech Suspension Products (47)
Reviews of Fabtech Suspension products have an average rating of 4.7 out of 5
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My F-250
- 6.7L V8 Power-Stroke - 17, 18, 19, 20, 21, 22
Not Compatible on Vehicles with Dual Rear (Dually) Wheels
