Fabtech 6-Inch Radius Arm Suspension Lift Kit with Dirt Logic 2.5 Reservoir Coil-Overs and Dirt Logic Shocks (17-22 4WD 6.7L Powerstroke F-250 Super Duty)Find parts that fit my vehicle
Item SD0521
$0.00
Our Price
$4,819.60 kit
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Radius Arm Lift System With 6-Inch Front and Rear Lift Height
- Enhances Off-Roading Performance
- Provides a Smoother Ride Experience
- Front Dirt Logic 2.5 Reservoir Coil-Overs
- Rear Dirt Logic Shocks
- Fabtech Replacement Radius Arms
- Rear Lift Blocks With U-Bolt Kit
- Track Bar Relocation Bracket
- Sway Bar Drop Brackets
- Comes With a Pitman Arm
- Can Accommodate Up to 37-Inch Tires With Minor Trimming
- Maximum Tire Backspacing of 5 Inches
- Straightforward Installation
- Comes With a Limited Lifetime Warranty
- Fits 2017-2022 4WD Ford Super Duty F-250 with 6.7L Engines
| Brand | Fabtech |
| Lift Height | 6.00 Inch |
| Lift Kit Type | Radius Arm Lift |
| Lift Kit Max Tire Size | 37 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Boosts Off-Roading Capabilities. For enhanced off-road performance and superior ride quality both on and off the road, you can install this Fabtech 6-Inch Radius Arm Lift System With Dirt Logic 2.5 Reservoir Coil-Overs and Dirt Logic Shocks. Apart from the smoother ride and better off-roading experience, this radius arm lift system also provides the extra space you need so you can install up to 37-inch tires. In addition, this all-in-one kit also comes with a pair of replacement radius arms to help with steering control. Other components like the track bar relocation bracket and sway bar drop brackets, meanwhile, help improve stability and overall handling.
Front Dirt Logic 2.5 Reservoir Coil-Overs and Rear Dirt Logic Shocks. Fabtech included a set of front Dirt Logic 2.5 coil-overs and rear Dirt Logic shock with this radius arm lift system. The front coil-overs provide adjustable damping and rebound settings, and also help improve handling even with the added height. The rear shocks, meanwhile, offer a more robust configuration that the factory shocks and are pre-tuned to account for larger tire sizes so you’ll get the best all-around damping.
Fabtech Replacement Radius Arms. With a pair of Fabtech replacement radius arms, this lift system ensures that your truck will be steadier and easier to handle. The radius arms that come with this kit feature an adjustable alignment cam at axle for caster adjustment and have a full tubular structure reinforced by dimple-die side plates.
Rear Lift Blocks With U-Bolt Kit. The rear lift blocks that come with this lift system are made from heavy-duty steel. They also have a tapered structure, which reduces the angle of the drive shaft to make your vehicle a lot easier to drive. Fabtech also included a U-bolt kit with these lift blocks for added support and secure installation.
Track Bar Relocation Bracket. The "death wobble" is a common issue on modified vehicles, especially lifted ones. To counter this problem, Fabtech included a track bar relocation bracket with this radius arm lift system. This part helps adjust and ensure the proper alignment of the suspension components with the axle, which improves stability and handling. Fewer wobbles also mean a longer lifespan of the suspension components.
Sway Bar Drop Brackets. To minimize body roll when turning and cornering, this radius arm lift kit features a set of sway bar drop brackets. These sway bar drop brackets also help improve articulation and handling at any speed, and gives your vehicle better on-road "manners," even if it has a distinct off-road stance.
Simple and Hassle-Free Installation. Fabtech designed this radius arm lift system so that all components can be installed without welding. It should be noted, however, that drilling is required for some parts. It takes approximately 5 hours to complete the installation. Afterward, Fabtech recommends a re-torque of the nuts, bolts, and lugs after 50 miles, and a regular re-torquing after the first one.
Covered by a Limited Lifetime Warranty. Fabtech lift systems, including this radium arm lift kit, are all covered by their limited lifetime warranty against construction and material defects.
Application. This Fabtech 6-Inch Radius Arm Lift System With Dirt Logic 2.5 Reservoir Coil-Overs and Dirt Logic Shocks can be installed on the 4WD 2017-2022Ford Super Duty F-250 with 6.7L engines.
Shop All 6 to 8 Inch Truck Lift Kits
Shop All Truck Parts And Accessories
Shop All Truck Lift Kits
Fitment:
DetailsFabtech K2243DL
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

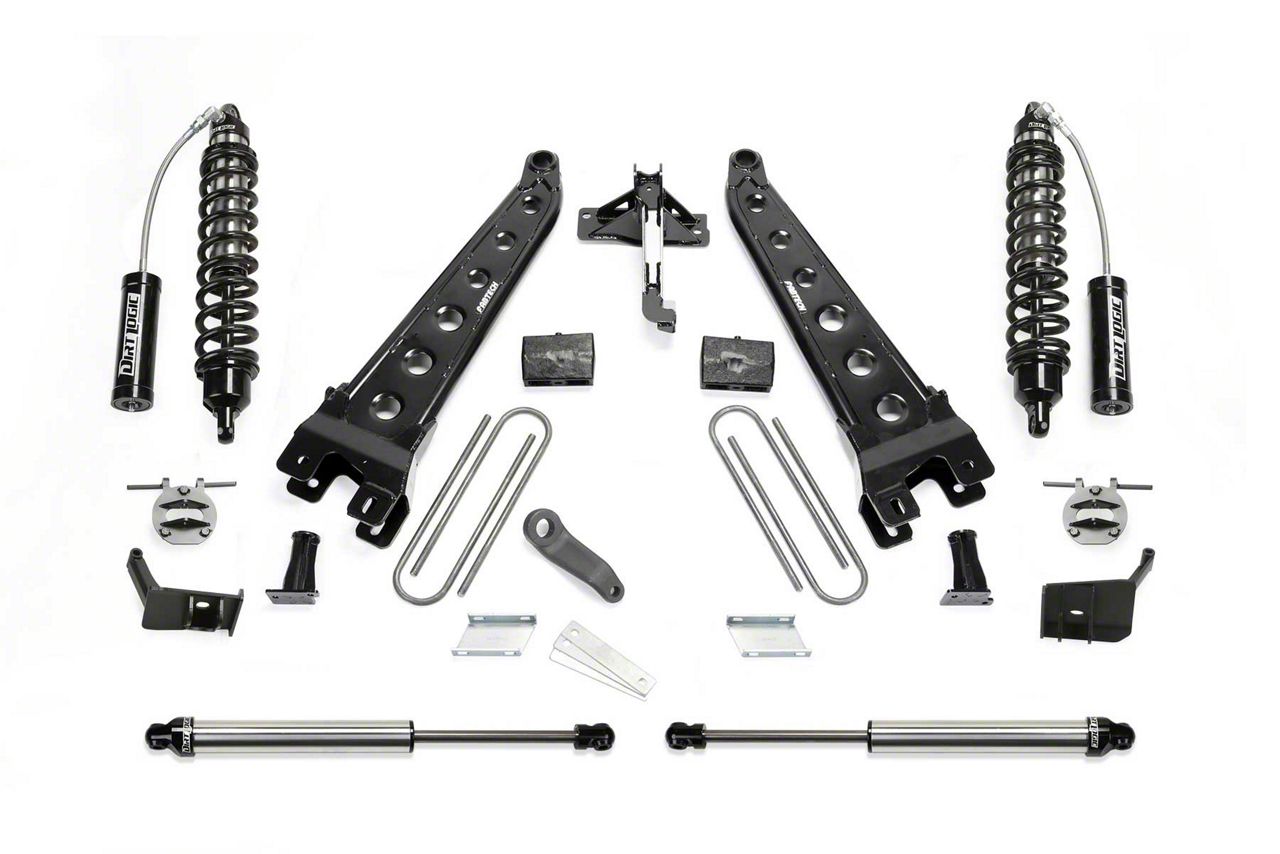

What's in the Box
- (2) Front Dirt Logic 2.5 Reservoir Coil-Overs
- (2) Rear Dirt Logic Shocks
- (2) Fabtech Replacement Radius Arms
- (1) Rear Lift Block Kit With U-Bolts
- (1) Track Bar Relocation Bracket
- (1) Sway Bar Drop Bracket Kit
- (1) Pitman Arm
- (1) Component Box
- Mounting Hardware
- Installation Instructions
4.7
Reviews of Fabtech Suspension Products (47)
Reviews of Fabtech Suspension products have an average rating of 4.7 out of 5
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My F-250
- 6.7L V8 Power-Stroke - 17, 18, 19, 20, 21, 22
Not Compatible on Vehicles with Dual Rear (Dually) Wheels
