Find 6 Inch to 8 Inch Lift Kits for your F-250
Fabtech 6-Inch Radius Arm Suspension Lift Kit with Dirt Logic 4.0 Reservoir Coil-Overs and Dirt Logic Shocks (17-22 4WD 6.7L Powerstroke F-250 Super Duty)Find parts that fit my vehicle
Item SD0520
$0.00
Our Price
$5,513.69 kit
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Radius Arm Lift System With Lift Height 6 Inches in the Front and Rear
- Improves Off-Roading Capabilities
- Delivers a Smoother Ride Quality
- Front Dirt Logic 4.0 Reservoir Coil-Overs
- Rear Dirt Logic 2.25 Shocks
- Fabtech Replacement Radius Arms
- Rear Lift Blocks With U-Bolt Kit
- Track Bar Relocation Bracket
- Sway Bar Drop Brackets
- Comes With a Pitman Arm
- Accommodates Up to 37-Inch Tires With Minor Trimming
- Maximum Backspacing of 5 Inches
- Simple and Hassle-Free Installation
- Backed by a Limited Lifetime Warranty
- Fits 2017-2022 4WD Ford Super Duty F-250s With 6.7L Engines
| Brand | Fabtech |
| Lift Height | 6.00 Inch |
| Lift Kit Type | Radius Arm Lift |
| Lift Kit Max Tire Size | 37 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Experience Enhanced Off-Roading Performance. For a Super Duty with excellent off-road capabilities, but keeps its "good manners" in the city, you can install this Fabtech 6-Inch Radius Arm Lift System With Dirt Logic 4.0 Reservoir Coil-Overs and Dirt Logic Shocks. The 6-inch lift height provides a smooth and comfortable ride quality no matter where you’re driving, as well as extra room to install up to 37-inch tires. You’ll also get a pair of replacement radius arms to help with steer response improvement, and a track bar relocation bracket and sway bar drop brackets to enhance vehicle stability and handling.
Front Dirt Logic 4.0 Reservoir Coil-Overs and Rear Dirt Logic Shocks. The front Dirt Logic 4.0 reservoir coil-overs included in this lift system are specially designed for full-size vehicles. They guarantee excellent on- and off-road damping, without any shock fade. The rear shocks are also designed for large vehicles and tires, for high-quality, all-around damping.
Fabtech Replacement Radius Arms. Lifted vehicles often experience difficulties in steering, which can be addressed by these Fabtech replacement radius arms. These have an adjustable alignment camber at the axle, so you can adjust the caster angle for the exact steering response you need. These radius arms are also extremely tough, with a full tubular structure and dimple-die side plates for extra structural support.
Rear Lift Blocks With U-Bolt Kit. Your truck will get its 6-inch rear lift from this rear lift block kit, complete with U-bolts. These rear lift blocks help achieve a balanced stance, and also improve drivability thanks to their tapered structure that reduce the driveshaft angle.
Track Bar Relocation Bracket. This Fabtech Radius Arm Lift System includes a track bar relocation bracket, which helps eliminate the "death wobble" experienced by lifted vehicles. With no unnecessary wobbles and vibrations, you’ll experience a steadier ride. The suspension components will also stay in great shape for longer due to the reduced friction.
Sway Bar Drop Brackets. Another common problem in lifted vehicles is excessive body roll when turning and taking corners, which can be reduced with the help of these sway bar drop brackets. You’ll also experience better overall handling and low-speed articulation.
Simple, No-Weld Installation. All the components of this lift system are designed for a no-weld installation with only minor drilling needed. Complete installation takes approximately 5 hours. To ensure optimum performance and safety, Fabtech recommends regular re-torquing of the nuts, bolts, and lugs, the first of which should come after 50 miles.
Covered by a Limited Lifetime Warranty. This radius arm lift system is covered by Fabtech’s limited lifetime warranty against material and workmanship defects. For the complete terms and conditions and other warranty-related concerns, you may get in touch with the manufacturer.
Application. This Fabtech 6-Inch Radius Arm Lift System With Dirt Logic 4.0 Reservoir Coil-Overs and Dirt Logic Shocks can be installed on 2017-2022 4WD Ford Super Duty F-250 with 6.7L engines.
Shop All 6 to 8 Inch Truck Lift Kits
Shop All Truck Parts And Accessories
Shop All Truck Lift Kits
Fitment:
DetailsFabtech K2231DL
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

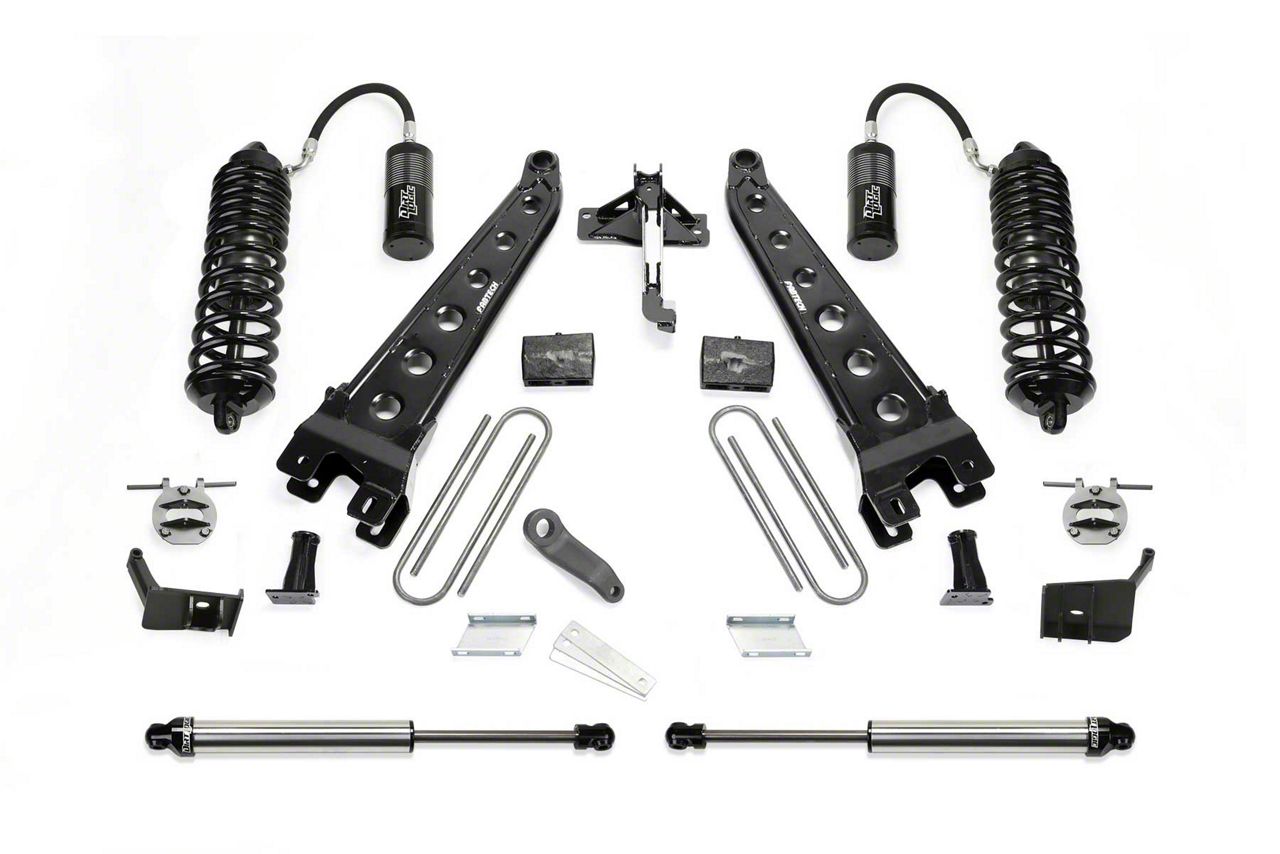

What's in the Box
- (2) Front Dirt Logic 4.0 Reservoir Coil-Overs
- (2) Rear Dirt Logic Shocks
- (2) Fabtech Replacement Radius Arms
- (1) Rear Lift Block Kit With U-Bolts
- (1) Track Bar Relocation Bracket
- (1) Sway Bar Drop Bracket Kit
- (1) Pitman Arm
- (1) Component Box
- Mounting Hardware
- Installation Instructions
4.7
Reviews of Fabtech Suspension Products (47)
Reviews of Fabtech Suspension products have an average rating of 4.7 out of 5
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My F-250
- 6.7L V8 Power-Stroke - 17, 18, 19, 20, 21, 22
Not Compatible on Vehicles with Dual Rear (Dually) Wheels
