Find 3 Inch to 5 Inch Lift Kits for your F-250
Fabtech 4-Inch Radius Arm Lift Kit with Stealth Shocks (17-22 4WD 6.7L Powerstroke F-250 Super Duty)Find parts that fit my vehicle
Item SD0494
$0.00
Our Price
$2,465.11 kit
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Suspension Lift Kit
- Provides 4 Inches of Lift, Front and Rear
- Improves Ground Clearance and Off-Road Capabilities
- Front and Rear Stealth Shocks
- Durable Coil Springs
- Proprietary Radius Arms
- Rear Lift Blocks
- Allows Use of Up to 35-Inch Wide Tires
- Professional Installation Recommended
- Limited Lifetime Warranty
- Fits All 2017-2022 Ford F-250 6.7L Super Duty 4WD Models
| Brand | Fabtech |
| Lift Height | 4.00 Inch |
| Lift Kit Type | Radius Arm Lift |
| Lift Kit Max Tire Size | 35 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Next-Level Off-Road Performance. Kick your Super Duty's off-road performance to the next level with the Fabtech 4-Inch Radius Arm Lift System With Stealth Shocks. This suspension lift kit adds 4 inches of front and rear lift enabling you to negotiate more challenging off-road trails with confidence. This added lift also allows you to install 35-inch wide tires, giving you that aggressive off-road look you’ve always wanted.
Front and Rear Stealth Shocks. The Fabtech 4-Inch Radius Arm Lift System comes with front and rear stealth shocks. These shocks use a monotube design and vehicle-specific valving that’s ideal for use with larger tires, making them ideal for more aggressive off-roading. These shocks are also built to last using a seamless steel body that’s powder-coated in black for corrosion protection. Additionally, these shock absorbers feature a 4 mm Nitrocarb piston rod that’s highly resistant to damage.
Durable Coil Springs With 4 Inches of Lift. The Fabtech Radius Arm Lift System gets its 4 inches of lift via a pair of durable coil springs. These coil springs are fabricated from high-grade carbon-steel for exceptional strength. Lastly, these coil springs are finished in a chip-resistant, black powder coating for excellent rust protection.
Proprietary Radius Arms. The Fabtech Radius Arm Lift System includes radius arms featuring a proprietary design. These radius arms enable proper positioning of the coil springs with the axle. This results in ideal suspension geometry and steering feel. These radius arms are precision-constructed from high-grade steel and come with fully-welded dimpled side plates for added rigidity.
Beefed-Up Rear Lift Blocks. The Fabtech 4-Inch Radius Arm Lift System includes 2 rear lift blocks that are responsible for rear lift. These lift blocks are constructed from a tough alloy for exceptional durability. These lift blocks are also finished in a black powder coating for corrosion protection.
Straight Install Procedure With Cutting and Trimming. Some cutting and drilling is necessary when installing the Fabtech 4-Inch Radius Arm Lift System With Stealth Shocks. This is to facilitate proper fitment of certain components. Installing this lift kit can take several hours to a day, depending on your mechanical know-how. For this reason, installation by a professional installation is recommended.
Includes a Limited Lifetime and a 1-Year Warranty Coverage. The Fabtech 4-Inch Radius Arm Lift System With Stealth Shocks’ hard components are covered by a limited lifetime warranty, while the shocks absorbers are covered by a 1-year limited warranty. Please visit the manufacturer’s website for further details.
Application. The Fabtech 4-Inch Radius Arm Lift System With Stealth Shocks fit all 2017-2022 Ford F-250 6.7L Super Duty 4WD models.
Shop All 3 to 5 Inch Truck Lift Kits
Shop All Truck Parts And Accessories
Shop All Truck Lift Kits
Fitment:
DetailsFabtech K2215M
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

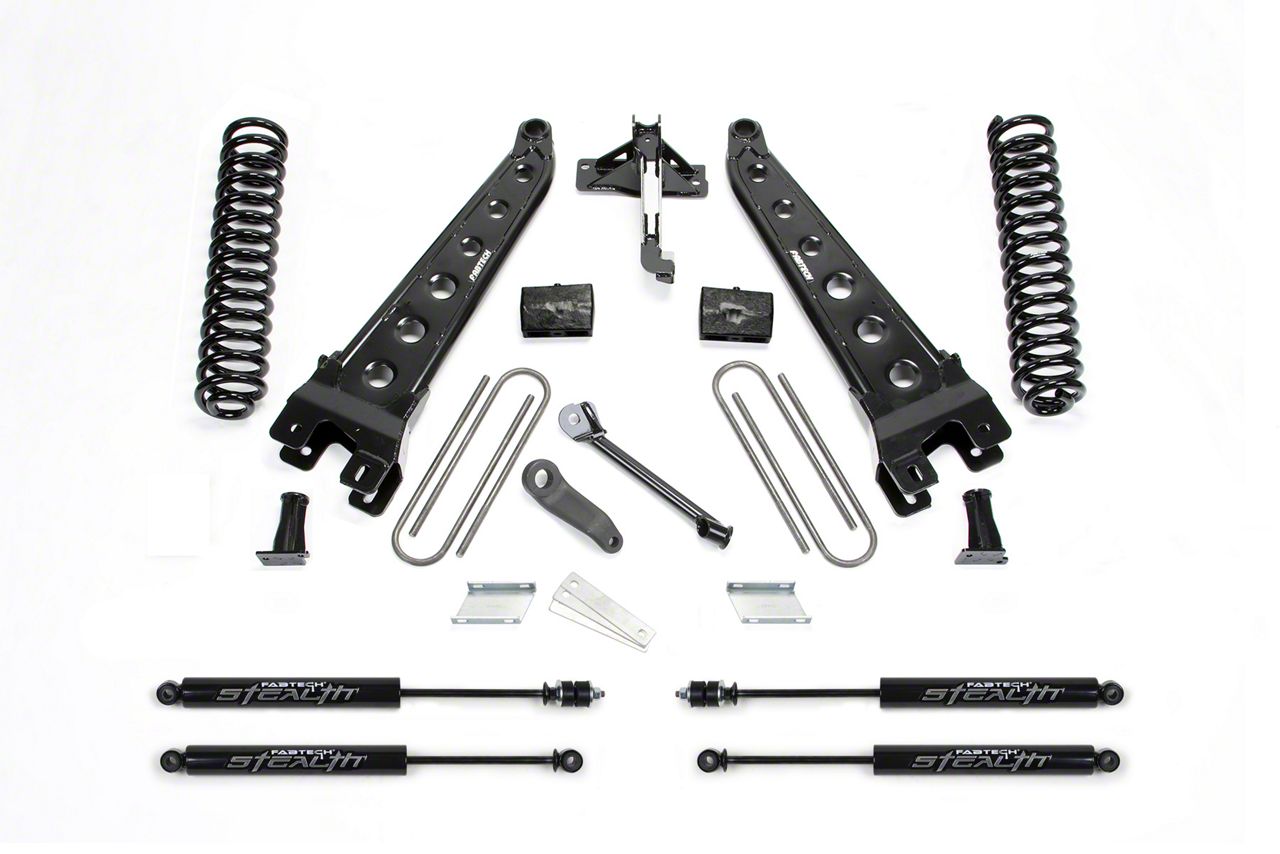

Installation & What's in the Box
Installation Info
What's in the Box
- (2) Front Shocks
- (2) Rear Shocks
- (1) Pitman Arm
- (2) Front Coil Springs
- (1) Front Bump Stop
- (2) Radius Arms
- (2) Sway Bar Drops
- (1) Track Bar Drop Bracket
- (1) Track Bar Support Tube
- (1) Steering Stabilizer Bracket
- (1) Steering Stabilizer Clevis Mount
- (2) Lift Blocks
- (4) U-Bolts
- Installation Hardware
4.7
Reviews of Fabtech Suspension Products (47)
Reviews of Fabtech Suspension products have an average rating of 4.7 out of 5
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My F-250
- 6.7L V8 Power-Stroke - 17, 18, 19, 20, 21, 22
Not Compatible on Vehicles with Dual Rear (Dually) Wheels
