Find 3 Inch to 5 Inch Lift Kits for your F-250

Fabtech 4-Inch 4-Link Lift Kit with Dirt Logic Shocks (17-22 4WD 6.2L F-250 Super Duty)Find parts that fit my vehicle

Item SD0460
Fabtech 4-Inch 4-Link Lift Kit with Dirt Logic Shocks (17-22 4WD 6.2L F-250 Super Duty)
Verify parts fit and get product recommendations.
F-250 Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Want $10? Write one of the first 5 reviews 4.7 Fabtech Suspension product ratings
Our Price

$4,025.92 kit

Out of Stock $99.00 Oversized Item Fee

Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

      • Suspension Lift System
      • Lifts Truck by 4 Inches to Increase Ground Clearance
      • Facilitates Responsive Handling and Superior Off-Road Stability
      • Includes Front and Rear Dirt Logic 2.25 Shocks
      • Fabtech 4-Inch Front Coil Springs
      • With 2-Inch Heavy Wall Links
      • Bump Stop Extensions Included
      • Covered in a Durable Black Finish
      • Accommodates Up to 35x12 Tires and 20x9 Wheels
      • Professional Installation Highly Recommended
      • Backed by a Limited Lifetime Warranty and a 5-Year, 60,000-Mile Powertrain Warranty
      • Designed for All 2017-2022 4WD 6.2L Ford Super Duty F-250 Models

      Description

      Enhanced Off-Road Dynamics. Maximize your Super Duty's off-road capabilities by means of the Fabtech 4-Inch 4-Link Lift System with Dirt Logic Shocks. Installing this 4-link suspension system transforms your truck with an aggressive stance, increased ground clearance, and superior off-road performance. It includes heavy wall links, coil springs, sway bar drops, track bar relocation bracket, Pitman arm, rear lift kit, and Dirt Logic shock absorbers.

      Front and Rear Dirt Logic 2.25 Shocks. The Dirt Logic 2.25-inch shocks come with a larger, more robust configuration than the factory shocks. Each shock absorber was crafted using high-grade stainless steel body, billet aluminum piston, and a NitroSteel black piston rod. In addition, the urethane bushings in the mounting points ensure quieter and smoother operations. These shocks are also pre-tuned for the 4-link lift system, accounting for larger wheel-and-tire combos and providing superior stability on rugged terrains.

      Premium Front Coil Springs. This 4-Link Suspension Lift System includes 4-inch front coil springs that facilitate enhanced travel and articulation. Fabtech engineered these springs with exact specifications for excellent handling and balance. These coil springs come in a black, powder-coated finish for reinforced corrosion resistance and aggressive good looks.

      Correct Steering Geometry. The Pitman arm in this 4-Link Lift System was built with Fabtech’s latest forging and CNC machining technology. Its high-strength construction and excellent dimensional accuracy help maintain proper steering geometry for optimum turning radius and minimal steering vibrations.

      Heavy-Duty Suspension Links. The suspension links ensure that your axle is centered, especially when you are tackling highly irregular terrains. These high-strength bars were made with superior structural integrity and come with durable steel brackets for secure mounting points. Moreover, these links facilitate smoother and quieter motion, thanks to the premium spherical bushings.

      Bolt-On Installation. This 4-Link Lift System with Dirt Logic Shocks directly attaches to your vehicle’s factory mounting locations. It includes all the necessary hardware for a bolt-on installation process that completes in about 6 hours with mechanical expertise required.

      Limited Warranties. Fabtech offers a lifetime warranty to the original retail purchaser who owns the vehicle, on which the product was originally installed. This limited warranty covers factory defects in workmanship and materials only. The Five Sixty Powertrain Warranty will apply if the claim falls within the first 5-year or 60,000-mile period of the vehicle. Some exclusions may apply; please check the terms and conditions for full details.

      Application. The Fabtech 4-Inch 4-Link Lift System with Dirt Logic Shocks is designed for all 2017-2022 4WD 6.2L Ford Super Duty F-250 models.

      Shop All 3 to 5 Inch Truck Lift Kits

      Shop All Truck Parts And Accessories

      Shop All Truck Lift Kits

      Fitment:

      Details

      Fabtech K2254DL

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

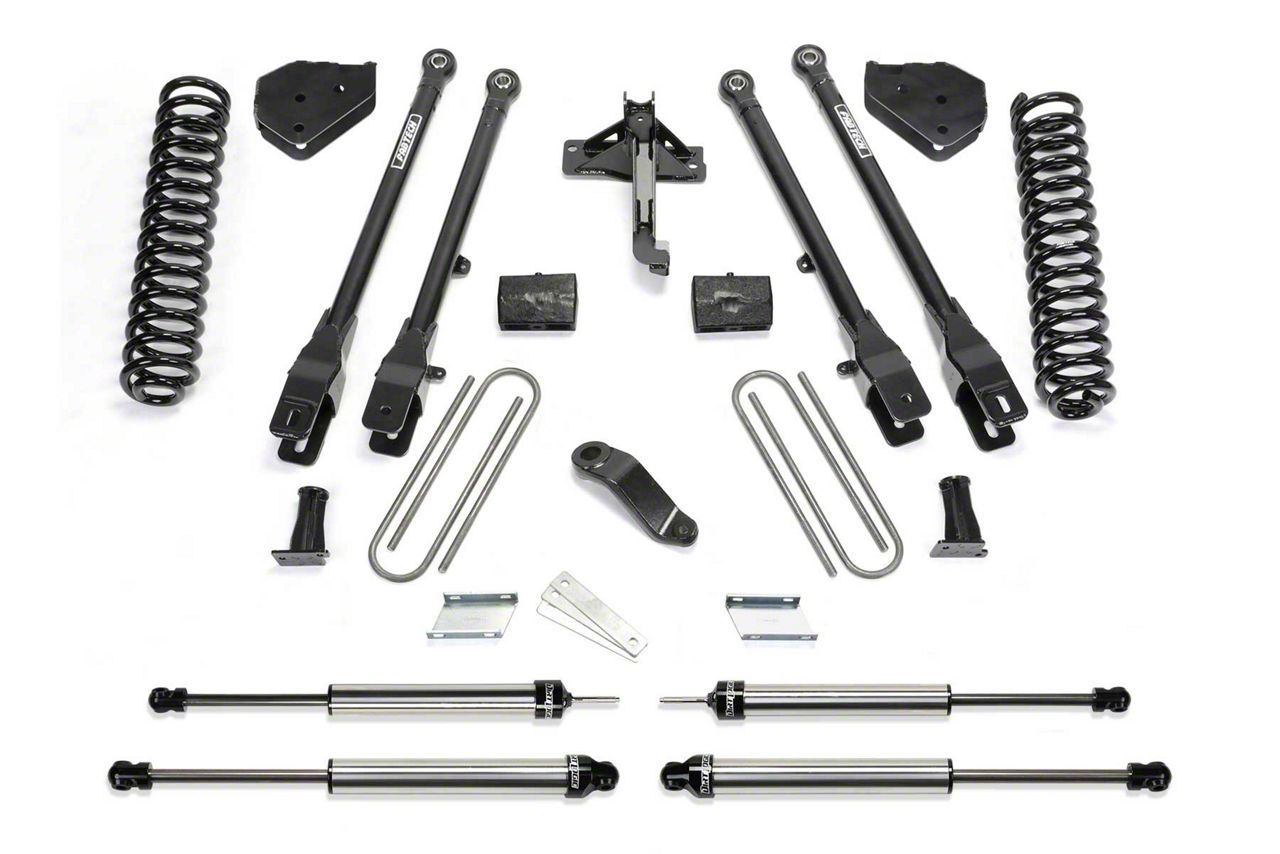

      What's in the Box

      • (2) Lower Links
      • (2) Upper Links
      • (2) Four-Link Pockets
      • (1) Pitman Arm
      • (2) Four-Inch Bump Stop Extensions
      • (1) Track Bar Drop Bracket
      • (1) Steering Stabilizer Bracket
      • (1) Steering Stabilizer Clevis Mount
      • (1) Sway Bar Drop - Driver Side
      • (1) Sway Bar Drop - Passenger Side
      • (2) Four-Inch Front Coils
      • (2) 2.25 Front Dirt Logic Shocks
      • (2) 2.25 Rear Dirt Logic Shocks
      • (1) Rear Box Kit
      • Hardware Subassembly
      • Installation Hardware
      4.7

      Reviews of Fabtech Suspension Products (47)

      Brand Image

      Reviews of Fabtech Suspension products have an average rating of 4.7 out of 5

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My F-250

      • 6.2L V8 - 17, 18, 19, 20, 21, 22

      Not Compatible on Vehicles with Dual Rear (Dually) Wheels
