Find 3 Inch to 5 Inch Lift Kits for your F-250
Fabtech 4-Inch 4-Link Lift Kit with Front Dirt Logic 2.25 Reservoir Shocks and Rear Dirt Logic Shocks (17-22 4WD 6.7L Powerstroke F-250 Super Duty)Find parts that fit my vehicle
Item SD0461
$0.00
Our Price
$4,245.46 kit
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Four-Link Suspension Lift System
- Provides a 4-Inch Lift Height
- Enables Superior Handling and Enhanced Off-Road Stability
- Comes With a Rear Block and U-Bolt Kit
- Front Dirt Logic 2.25 Reservoir Shocks and Rear Dirt Logic Shocks
- Includes 4-Inch Front Coil Springs
- With 2-Inch Heavy Wall Links
- Bump Stop Extensions Included
- Covered in a Durable Black Finish
- Accommodates Up to 35x12 Tires and 20x9 Wheels
- Professional Installation Highly Recommended
- Backed by a Limited Lifetime Warranty and a 5-Year, 60,000-Mile Powertrain Warranty
- Fits All 2017-2022 4WD 6.7L Ford Super Duty F-250 Models
| Brand | Fabtech |
| Lift Height | 4.00 Inch |
| Lift Kit Type | 4-Link Lift |
| Lift Kit Max Tire Size | 35 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Off-Road Performance Upgrade. Improve your Super Duty's rugged, off-road presence with an aggressive stance and optimum handling by upgrading to the 4-Inch 4-Link Lift System with Front Dirt Logic 2.25 Reservoir Shocks and Rear Dirt Logic Shocks. With this kit, Fabtech ensures that your vehicle can accommodate larger tire and wheel combos for more adventurous off-roading. It includes Dirt Logic shocks, coil springs, suspension links, sway bar drops, Pitman arm, track bar relocation bracket, and a rear lift kit to provide full range of movement through various obstacles with comfort, ease, and confidence.
Premium Shock Absorbers. The front shocks in this kit are Dirt Logic Stainless Steel Reservoir Shocks that have been upgraded to the black anodized 6061 aluminum reservoir bodies. This construction exhibits improved heat dissipation mechanism for efficient performance. The rear shocks are Dirt Logic shocks with stainless steel bodies, aluminum pistons, and NitroSteel black piston rods. These shock absorbers are equipped with precise damping for improved control both for low-speed and high-speed driving.
Durable, Hot-Wound Coil Springs. Built for optimum performance, the 4-Inch Coil Springs in this suspension lift kit were shot peened for minimal spring sag and fatigue. Fabtech’s advanced engineering ensures that these components were made with extensive rate tuning and dynamic balance. The coil springs are also covered in a black, powder-coated finish for superior protection from harsh outdoor elements.
Precise Steering Dynamics. The dropped Pitman arm ensures proper steering geometry for more responsive and smoother operations. It was crafted using Fabtech’s advanced forging process and CNC technology to maintain proper alignment and optimum turning radius for accurate steering operations.
Heavy-Duty Suspension Links. The premium-quality suspension links enhance your vehicle’s handling by improving the balance and traction. Each bar exhibits excellent strength and high structural integrity to handle the tough off-road demands. The axle side features adjustable alignment cams to dial in the caster for the new ride height, whereas the frame pivot side is equipped with 5-ton joints for excellent strength.
Bolt-On Installation. This 4-Inch 4-Link Lift System with Front Dirt Logic 2.25 Reservoir Shocks and Rear Dirt Logic Shocks directly bolts to your vehicle’s factory mounting locations by means of the hardware provided. The installation process completes in about 6 hours with mechanical expertise required.
Lifetime Warranty, Five-Sixty Powertrain Warranty. Fabtech offers a limited lifetime warranty that covers factory defects in workmanship and materials of this 4-Inch 4-Link Lift System. Should this warranty be claimed within the first 5-year or 60,000-mile period of the vehicle, the Five Sixty Powertrain Warranty program will come into effect. Some exclusions may apply; please check the terms and conditions for full details.
Application. The Fabtech 4-Inch 4-Link Lift System with Front Dirt Logic 2.25 Reservoir Shocks and Rear Dirt Logic Shocks is intended for use on all 2017-2022 4WD 6.7L Ford Super Duty F-250 models.
Shop All 3 to 5 Inch Truck Lift Kits
Shop All Truck Parts And Accessories
Shop All Truck Lift Kits
Fitment:
DetailsFabtech K2290DL
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

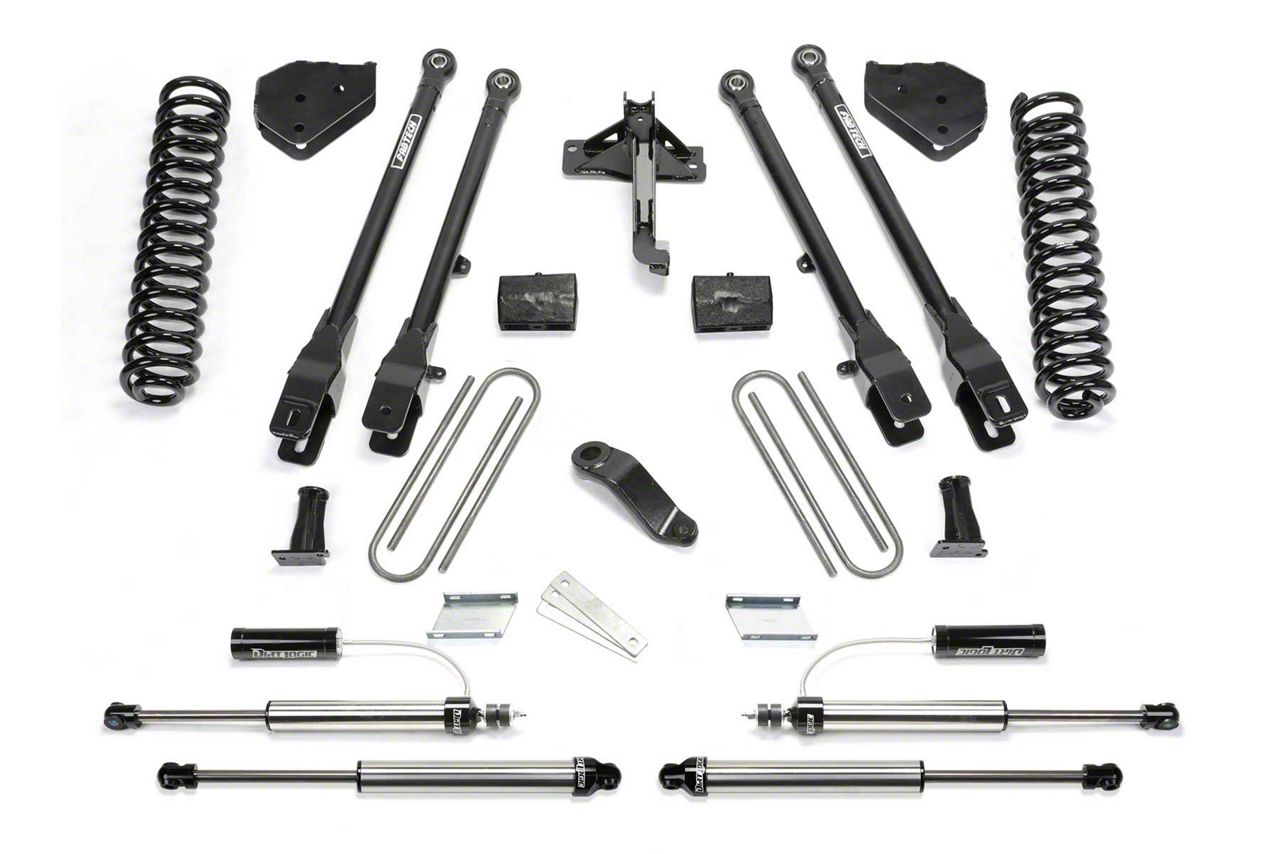

What's in the Box
- (2) Lower Links
- (2) Upper Links
- (2) Four-Link Pockets
- (1) Pitman Arm
- (2) Four-Inch Bump Stop Extensions
- (1) Track Bar Drop Bracket
- (1) Steering Stabilizer Bracket
- (1) Steering Stabilizer Clevis Mount
- (1) Driver Side Sway Bar Drop
- (1) Passenger Side Sway Bar Drop
- (2) Four-Inch Front Coils
- (2) 2.25 Front Dirt Logic Reservoir Shocks
- (2) 2.25 Rear Dirt Logic Shocks
- (1) Rear Box Kit
- Hardware Subassembly
- Installation Hardware
4.7
Reviews of Fabtech Suspension Products (47)
Reviews of Fabtech Suspension products have an average rating of 4.7 out of 5
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My F-250
- 6.7L V8 Power-Stroke - 17, 18, 19, 20, 21, 22
Not Compatible on Vehicles with Dual Rear (Dually) Wheels
