Fabtech 6-Inch Performance Suspension Lift Kit with Dirt Logic 2.5 Reservoir Coil-Overs and Dirt Logic 2.25 Shocks (20-25 4WD 3.0L Duramax Sierra 1500 Crew Cab w/ 5.80-Foot Short Box, Excluding AT4 & Denali)Find parts that fit my vehicle
Item S512405
Sierra 1500 Sales Techs:
Connect Now
M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
24 Reviews
Our Price
$4,351.92
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Six-Inch Performance Suspension Lift Kit
- Improves Factory Rake for a Level Stance
- Increases Ground Clearance for Superb Off-Roading
- Dirt Logic 2.5 with Coil-Overs and Reservoir Front Shocks and Dirt Logic 2.25 Rear Shocks
- Features Extended Ductile Iron Steering Knuckles
- Comes with Steel Lift Blocks
- Includes Durable Steel Strut Spacers
- Accommodates up to 35-Inch x 12.50-Inch Tires
- Requires the Use of 20-Inch or Larger Wheels
- Straightforward Installation – Some Cutting is Required
- Five-Year 60,000-Mile Powertrain Warranty
- Fits All 2020-2025 GMC Sierra 1500 4WD 3.0L Crew Cabs with Short Boxes, Excluding AT4 and Denali Models
| Brand | Fabtech |
| Lift Height | 6.00 Inch |
| Lift Kit Type | Suspension Lift |
| Lift Kit Max Tire Size | 35 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Exceptional Rough Terrain Performance. Beat the rough terrain and the competition with this Fabtech 6-Inch Performance Suspension Lift Kit with Dirt Logic 2.5 Reservoir Coil-Overs and Dirt Logic 2.25 Shocks on your GMC Sierra 1500 truck. Outfitting your truck with this lift kit increases its height by 6 inches and allows you to install up to 35-inch tires without compromising its performance. And with the combination of powerful front and rear shocks, steering knuckles, and crossmembers, this lift kit allows your truck to conquer more easily even the most challenging off-road driving conditions.
Powerful Front and Rear Shocks. For exceptional performance, this suspension lift kit features 2 front Dirt Logic 2.5 shocks with coil-overs and reservoir. They provide excellent damping capability with their adjustable coil-overs, NitroSteel black piston rods, and nitrogen gas reservoir. Meanwhile, the rear Dirt Logic 2.25 shocks included in this kit replaces the factory rear shocks to provide better shock damping capability, so you can experience smoother handling on rough roads, even at high speeds.
Durable Steering Knuckles. This suspension lift kit comes with Fabtech’s extended length ductile iron Steering Knuckles. They improve handling by eliminating bump steer throughout the suspension travel. Meanwhile, their heavy-duty steel construction adds to the overall strength of the entire suspension system.
Sturdy Control Arm Crossmembers. This kit also comes with 0.25-inch thick steel lower control arm crossmembers. They have been engineered to provide maximum ground clearance with their arched design. These crossmembers have also been welded for maximum front suspension strength while maintaining factory alignment cams.
High-Quality Bump Stop Spacers and Lift Blocks. For maximum suspension efficiency, this lift kit comes with high-quality bump stop spacers and lift blocks. They have been specially designed for perfect fit and to ensure excellent rigidity and ride quality.
Straightforward Installation. The installation of this suspension lift kit requires mechanical expertise. Most parts install using your truck’s factory mounting locations, but some cutting is required.
Backed by a 5-Year Warranty. For quality assurance, Fabtech backs this suspension lift kit with a 5-year/60,000-mile Powertrain warranty against manufacturing defects from the date of purchase. Some limitations apply. For more information, please refer to the manufacturer’s website.
Application. This Fabtech 6-Inch Performance Suspension Lift Kit with Dirt Logic 2.5 Reservoir Coil-Overs and Dirt Logic 2.25 Shocks fits all 2020-2025 GMC Sierra 1500 4WD 3.0L Crew Cabs with Short Boxes, Excluding AT4 and Denali Models.
Fitment:
- 2020 GMC Sierra 1500
- 2021 GMC Sierra 1500
- 2022 GMC Sierra 1500
- 2023 GMC Sierra 1500
- 2024 GMC Sierra 1500
- 2025 GMC Sierra 1500
Fabtech K1176DL
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

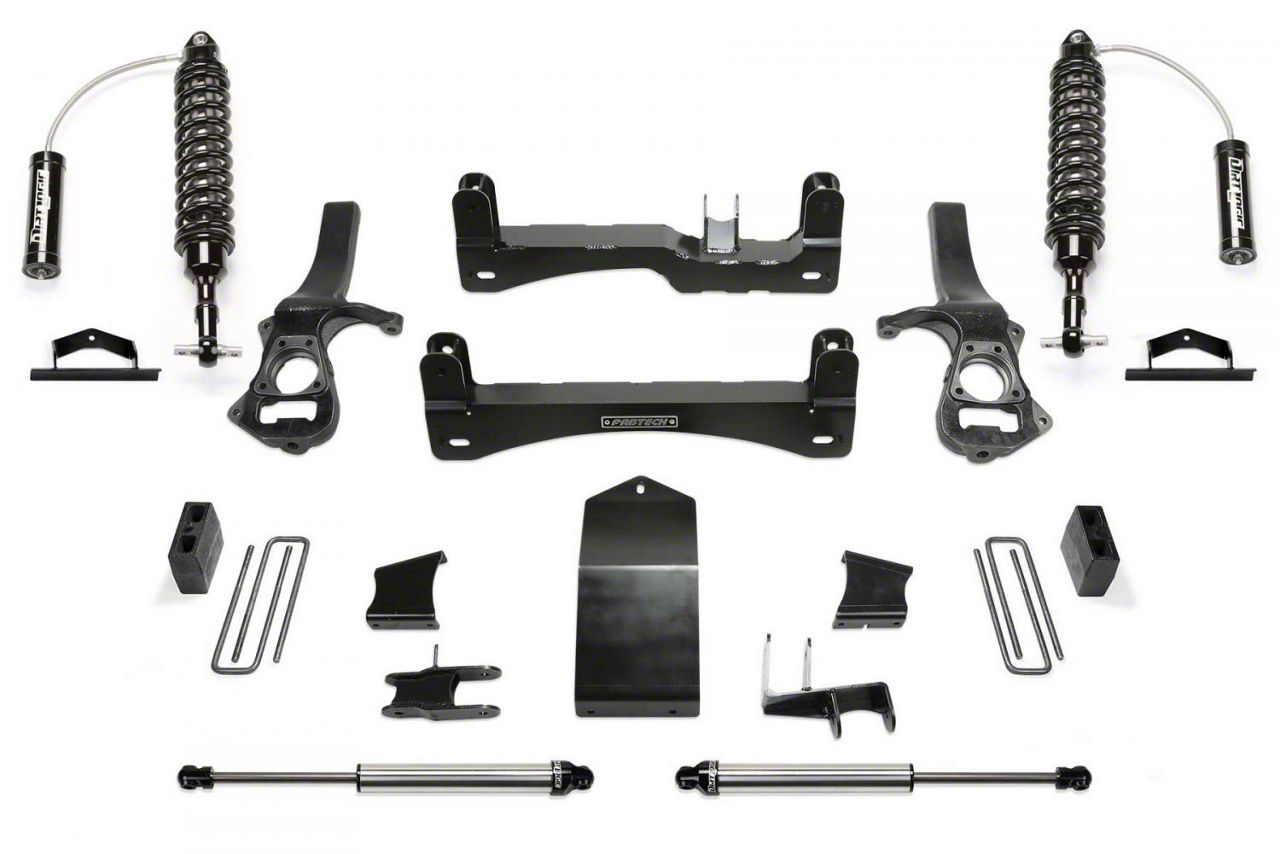

What's in the Box
- (2) Dirt Logic 2.5 Coil-Overs
- (2) Rear Dirt Logic 2.5 Shocks
- (1) Front Crossmember
- (1) Rear Crossmember
- (2) Sway Bar Mounts
- (2) Rear Lift Blocks
- (2) Axle Spacers
- (2) Rear Bump Stop Spacers
- (4) Six-Inch Shock Brackets
- (2) Six-Inch Shock Extensions
- (2) Six-Inch Shock Mount to Arms
- (2) Bottom Plates
- (2) Lower Shock Brackets
- (2) Rear Brake Line Brackets
- (1) Differential Skid Plate
- (4) U-Bolts
- (2) Tie Rod Ends
- Installation Hardware
4.6
Customer Reviews (24)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Sierra 1500
- 2.7L I4 - 20, 21, 22, 23, 24, 25
- 3.0L I6 Duramax - 20, 21, 22, 23, 24, 25
- 4.3L V6 - 20, 21
- 5.3L V8 - 20, 21, 22, 23, 24, 25
- 6.2L V8 - 20, 21, 22, 23, 24, 25
